Repair Procedures: Removal
- Shift the gear to "N".
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

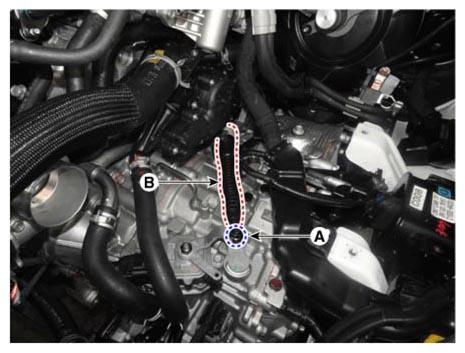

- Loosen the nut (A) and then separate the shift cable (B).

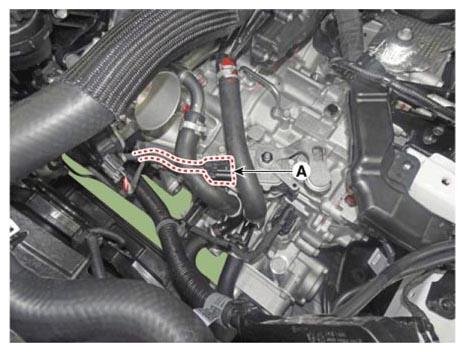

- Disconnect the position switch connector (A).

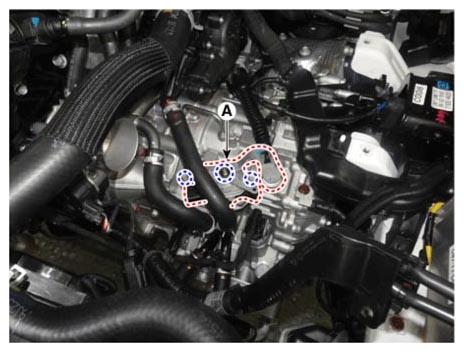

- Loosen the bolts and nut and then removing the position switch (A).
