Front Alignment: Toe
Toe
Total: 0.1° ± 0.2°
Individual: 0.05° ± 0.1°
 Courtesy of HYUNDAI MOTOR AMERICA
|

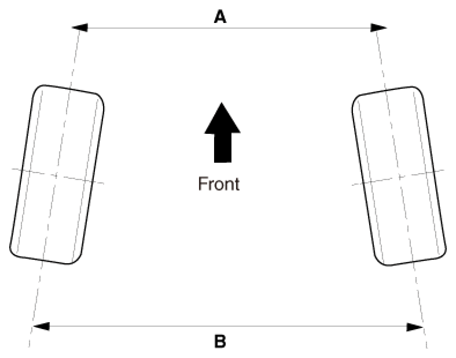

| Item |
Description |
| A-B < 0 |
Positive (+) toe (toe in) |
| A-B > 0 |
Negative (-) toe (toe out) |

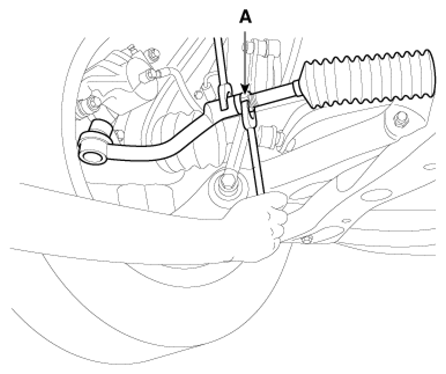

Tightening torque:
49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
