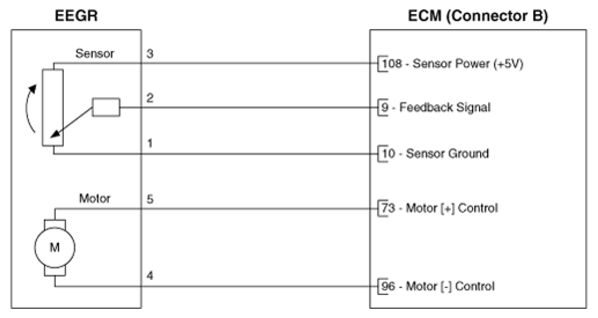

Home › Hyundai › 2025 › Elantra SE › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L (Except HEV) › Electric Exhaust Gas Recirculation (EEGR) Control Valve › Schematic Diagrams › Circuit Diagram › Notes
