Connector And Terminal Information
›
IMS Button

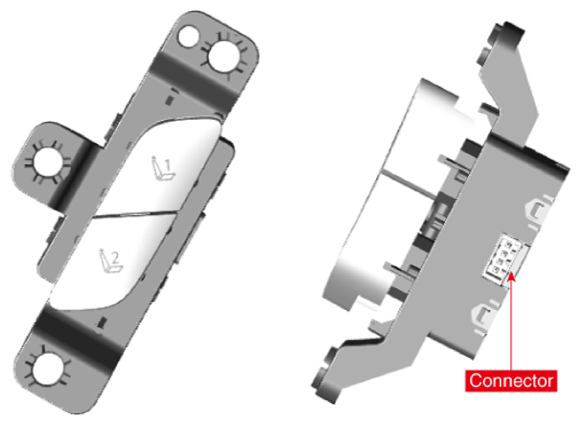

IMS Button
Courtesy of HYUNDAI MOTOR AMERICA
Connector
Pin No
Function
Courtesy of HYUNDAI MOTOR AMERICA
1
ILL (+)
2
IMS Switch
3
Ground
4
ILL (-)
Courtesy of HYUNDAI MOTOR AMERICA
