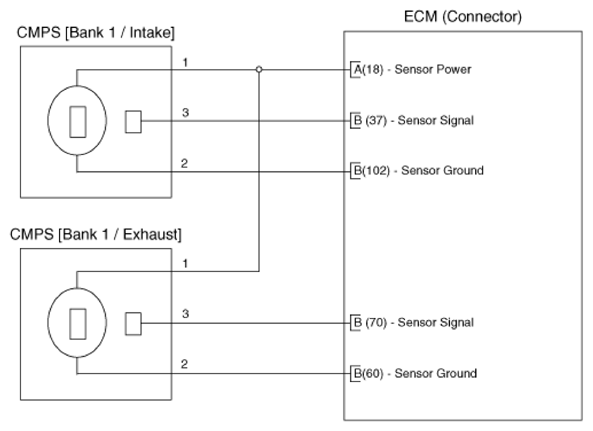

Home › Hyundai › 2025 › Kona N Line, 4WD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6 › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
