Electric Waste Gate Actuator (EWGA)
›
Components And Components Location
›
Components Location
Components Location

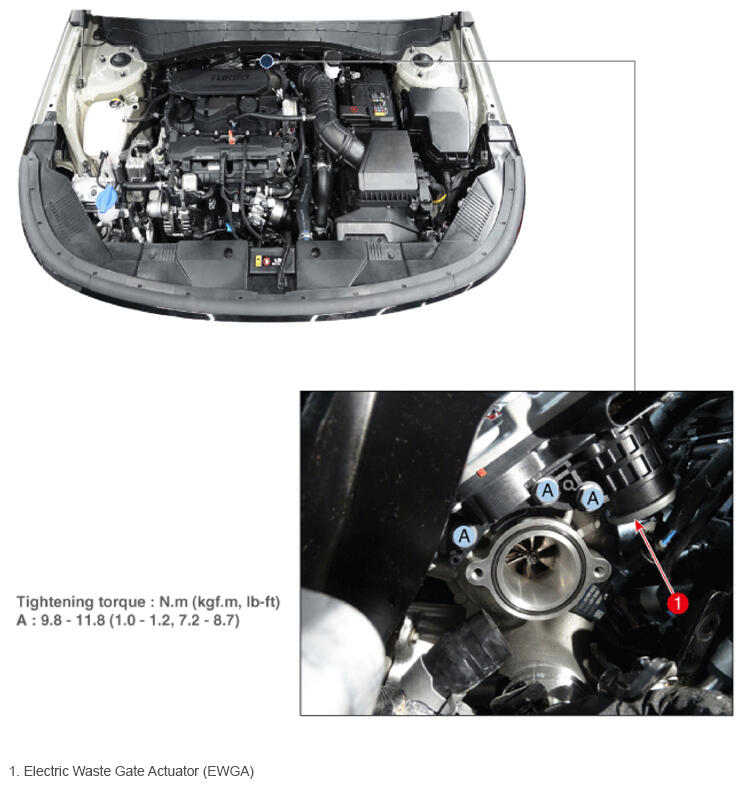

Fig 1: Electric Waste Gate Actuator Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
