NFC Key Card Registration With Diagnostic Tools
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

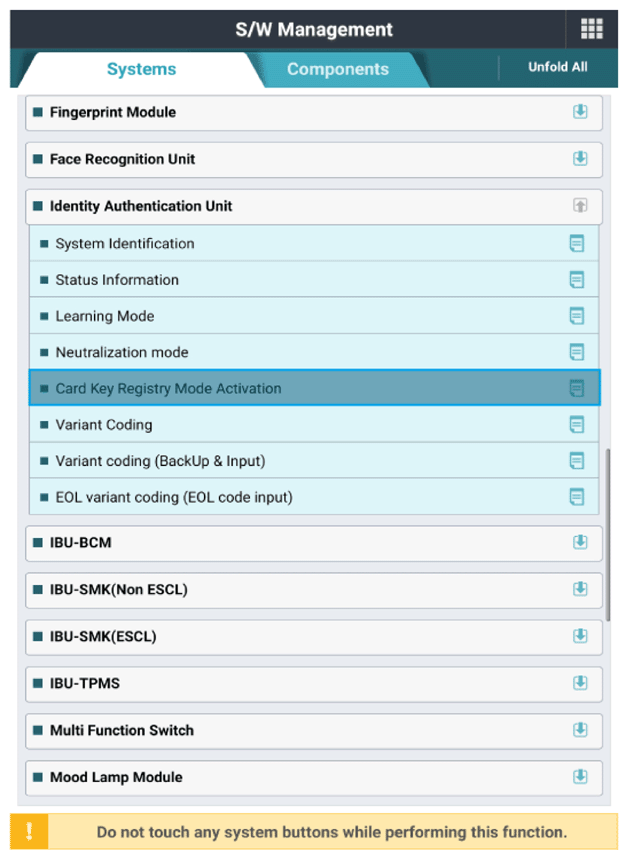

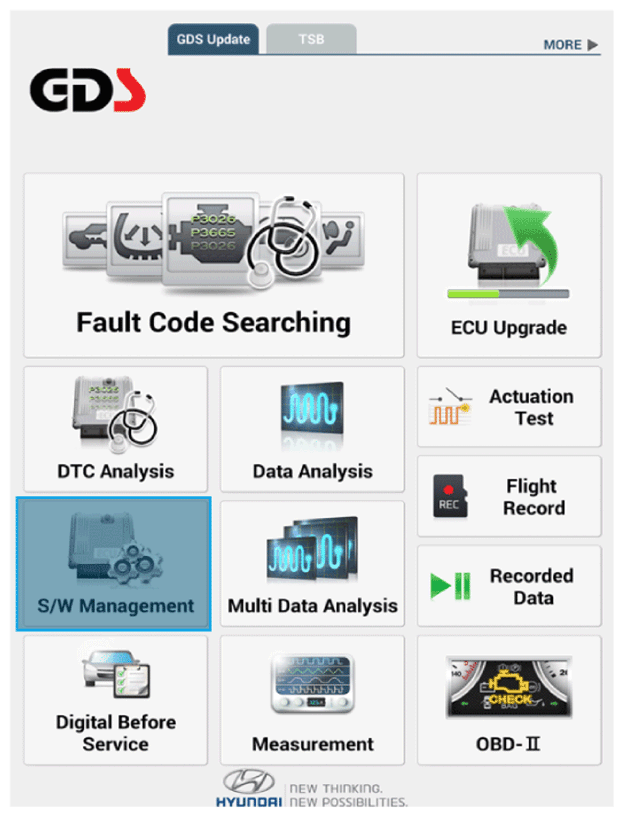

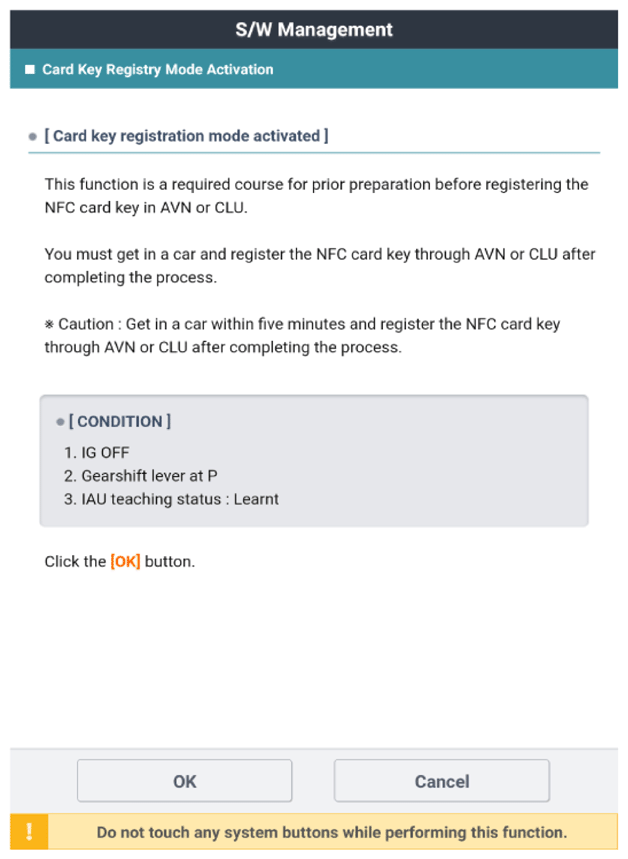

- Select the "S/W Management" and "NFC Key Card Registration Mode Activation".

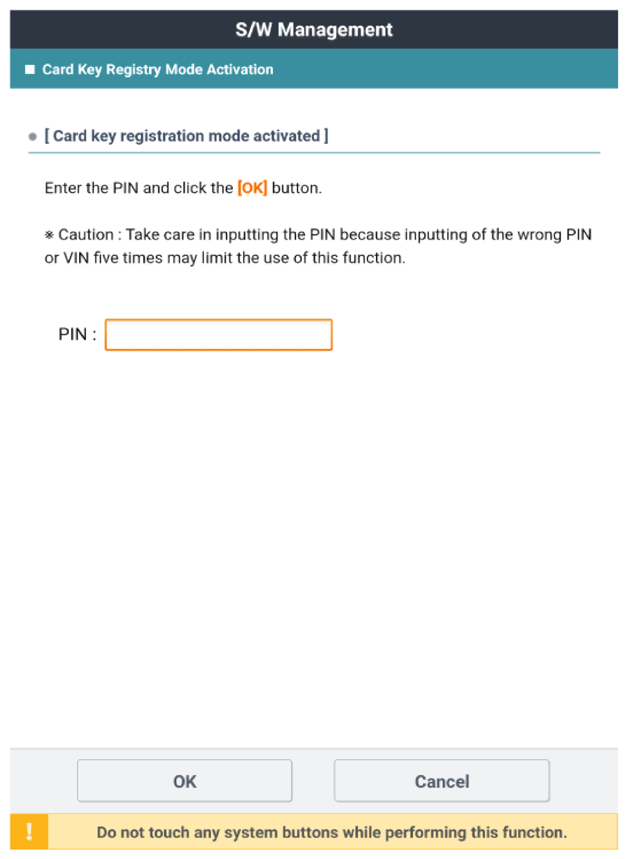

- Enter the PIN code and VIN in order.NOTE:
- If you input invalid passwords over 5 times, key card registration is prevented for 1 hour.
