Smart Key Antenna (Interior 1)
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery (-) terminal.
- Remove the floor console assembly
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

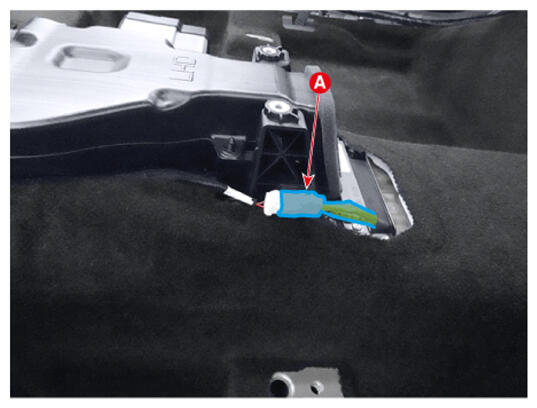

- Disconnect the smart key antenna connector (A).

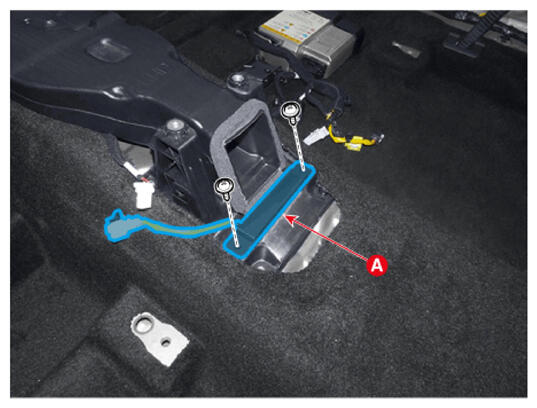

- Remove the smart key antenna (A), after removing the screws.
- Install in the reverse order of removal.
