Smart Key Code Saving
WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat and turn the power on diagnostic tool.

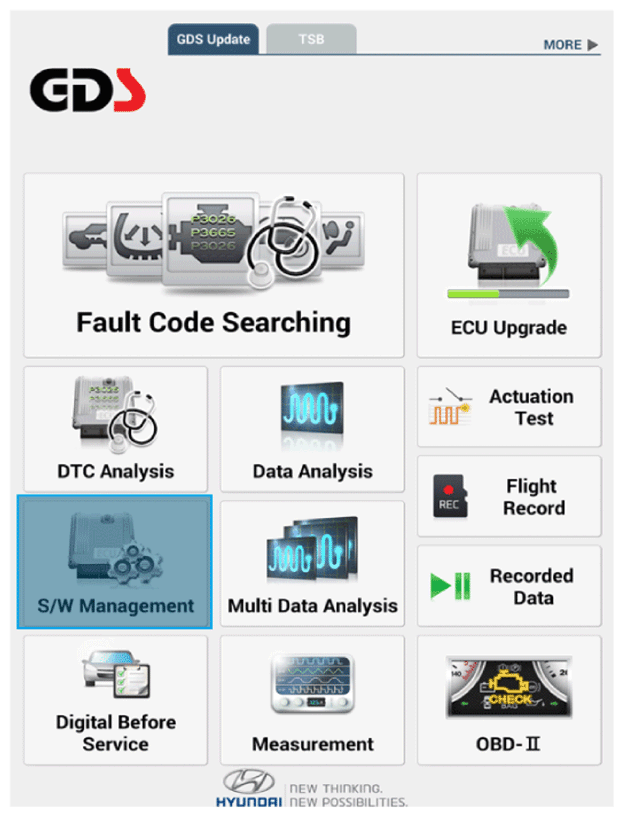

- "Select the 'S/W Management' and 'Car model'.

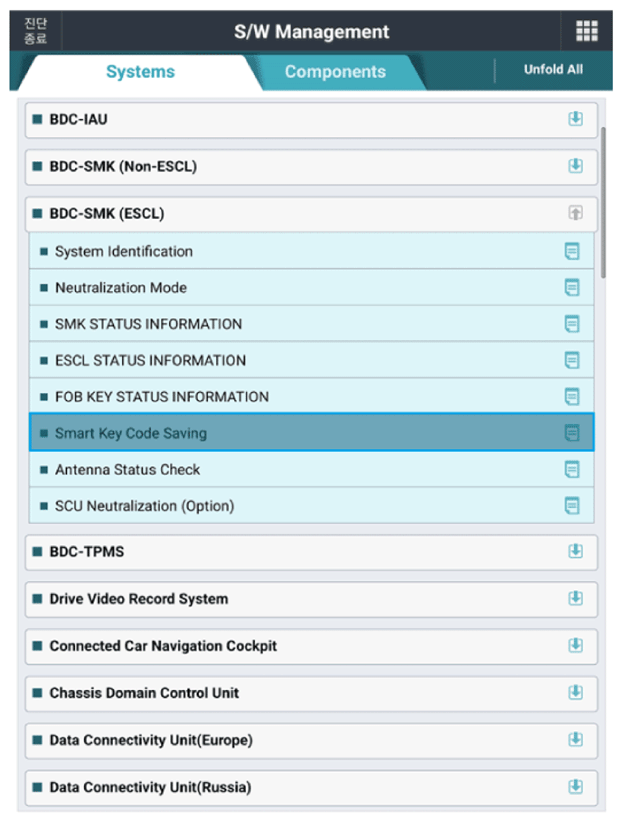

- Select the 'Smart Key Unit' and 'Smart Key Code Saving'.

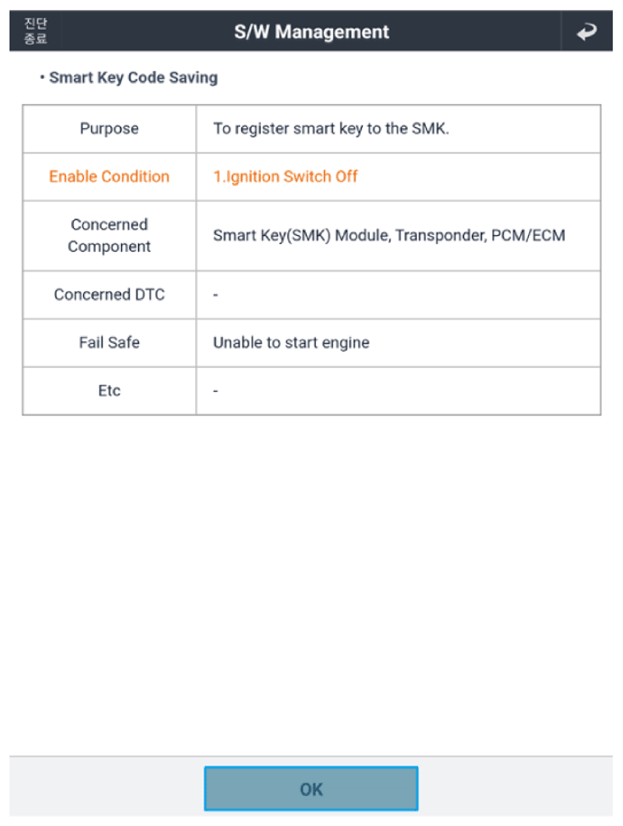

- Prepare the smart key to be registered and press "OK".
- Enter the Pin Code for registration and follow the instructions on the screen.

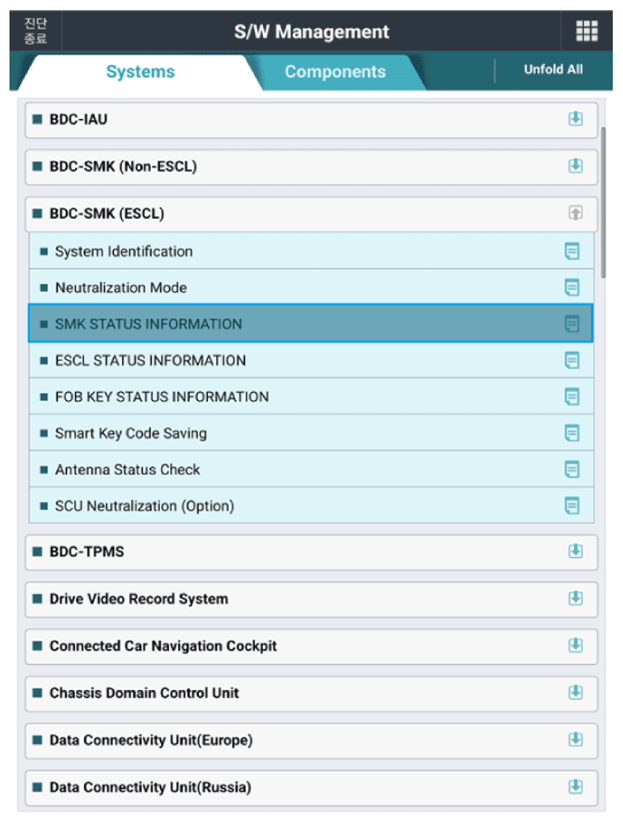

- After registration, enter "SMK STATUS INFORMATION" mode to check.
