Description And Operation: Description
- Automatic transaxle system relies on various measurement data to determine the current control status and extrapolate the necessary compensation values.
- These values are used to control the actuators and achieve the desired control output.
- If a problem with the drivetrain, including the transaxle, has been identified, perform self-diagnosis and basic transaxle inspection (oil and fluid inspection) and then check the control system components using the diagnostic tool.

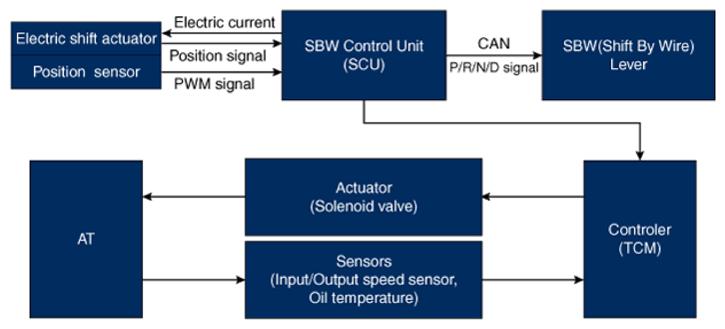

Control System Composition
