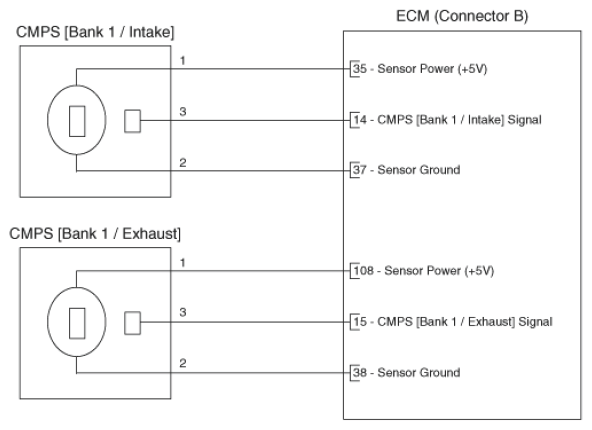

Home › Hyundai › 2025 › Kona SE, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0 › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
