Engine Control System - 2.0
›
Purge Control Solenoid Valve (PCSV)
›
Components And Components Location
›
Components Location
Components Location

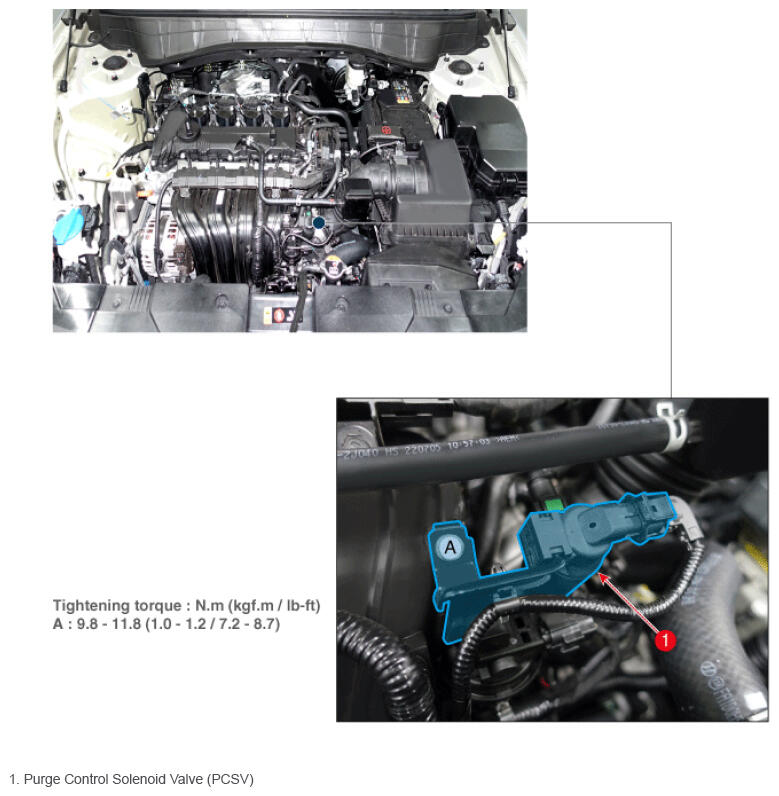

Fig 1: Purge Control Solenoid Valve Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
