Repair Procedures: Adjustment
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Perform the following procedure when replacing ECM (New parts/Reused parts).
- ECM and TCM are integrated, TCM related procedures should be performed when the ECM is replaced.

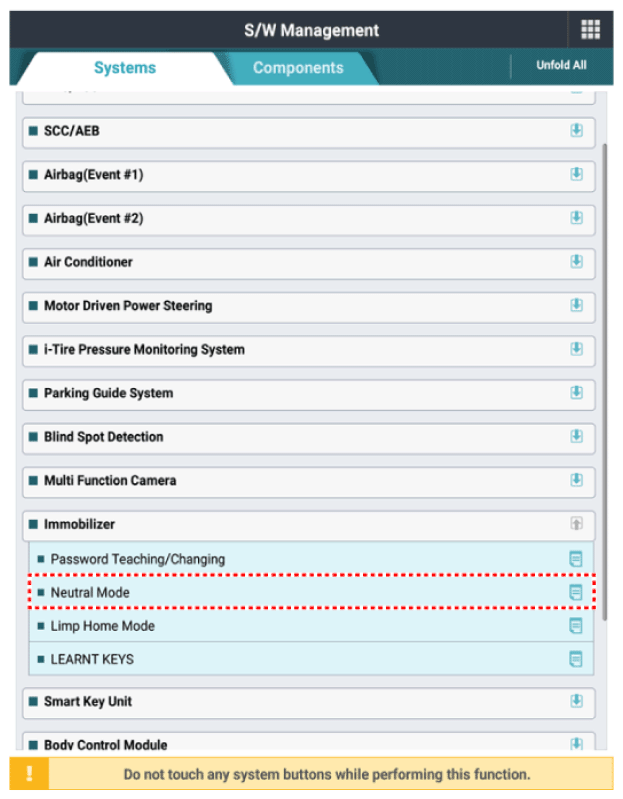

- Perform the neutral mode using the diagnosis tool when replacing with a reused ECM.
[Non-Smart Key]

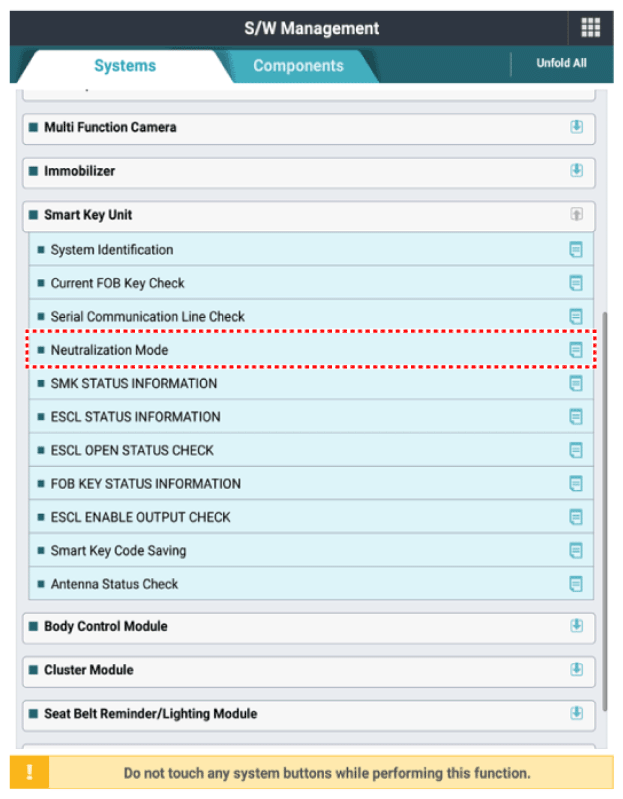

[Smart Key]

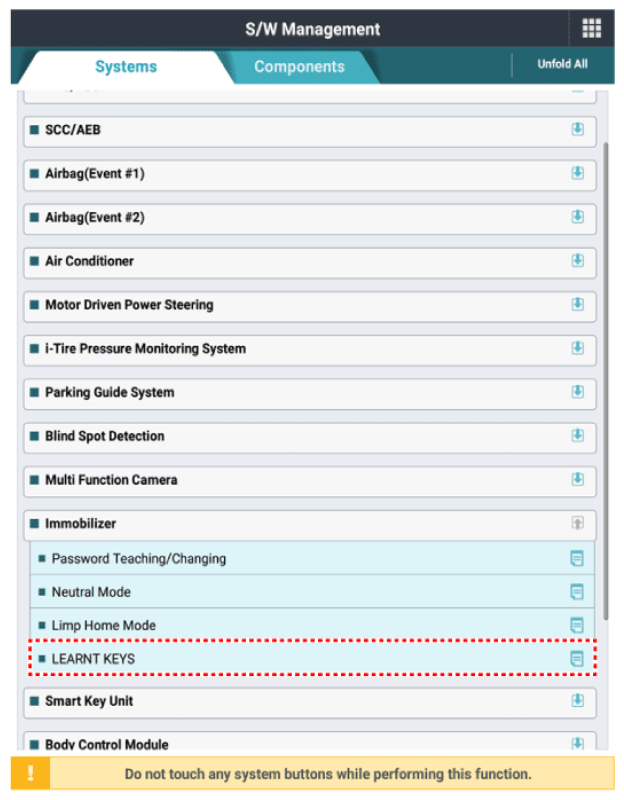

- Perform the "Key Teaching" procedure by using the diagnosis tool.
[Non-Smart Key]
[Smart Key]
Turn the ignition switch ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

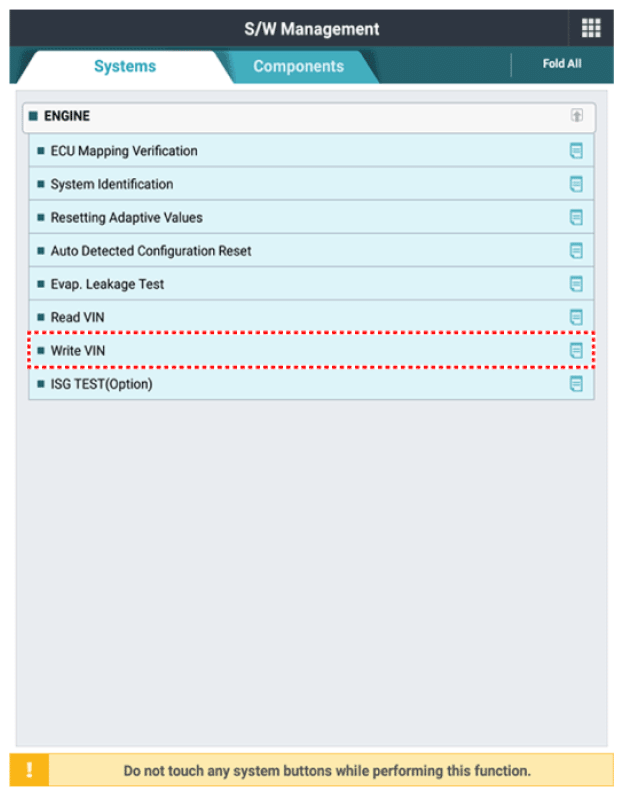

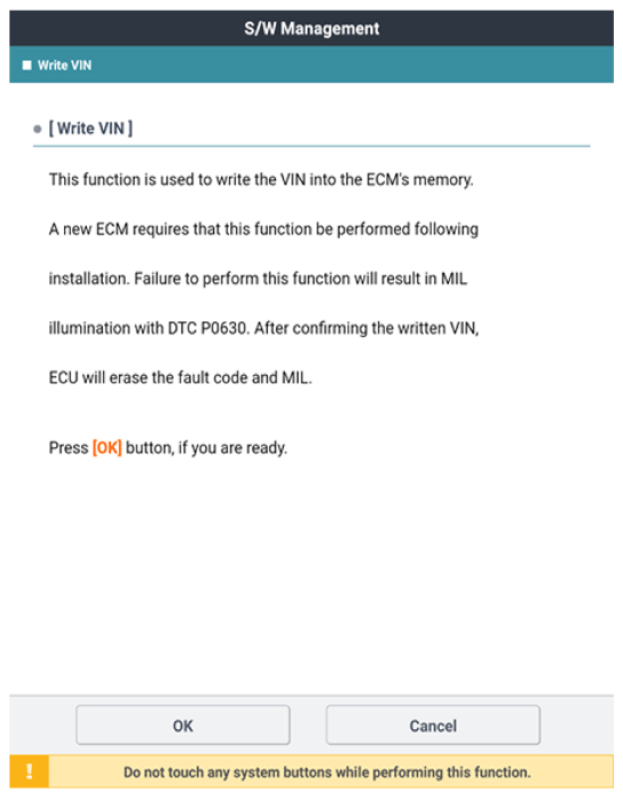

- Perform the VIN writing procedure by using the diagnosis tool.

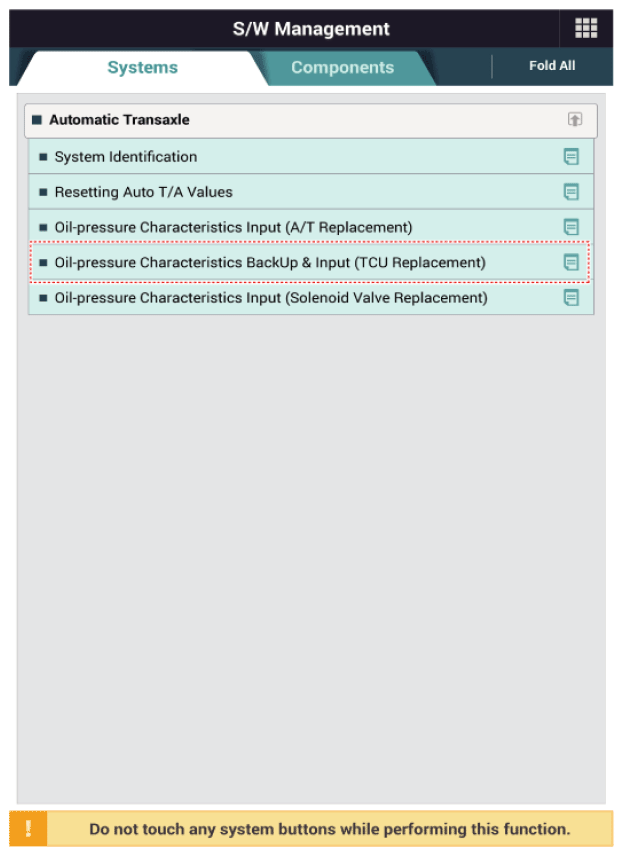

- Perform the oil pressure characteristics backup procedure using the diagnosis tool.
- Perform the ETC module learning procedure.
(Refer to Engine Control/Fuel System - "ETC SYSTEM ")
- Perform the TCM learning procedure.
(Refer to Automatic Transaxle Control System - " TCM ADAPTIVE VALUES LEARNING ")
