Repair Procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
NOTE:
- In order to prevent from oil leak, replacement of combustion seal should follow the below procedure.

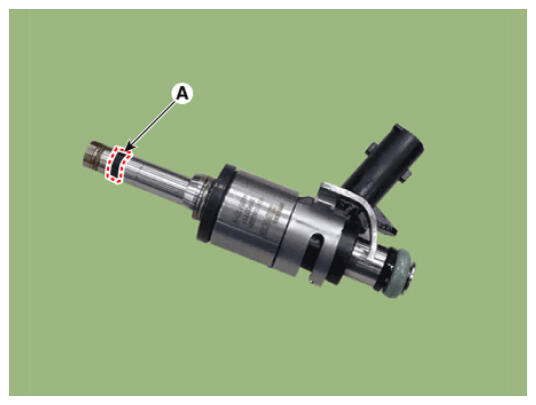

- Remove the combustion seal (A).NOTE:
- Be careful not to damage the injector while remove the combustion seal.
- Remove the combustion seal using a nipper.
- Before the assembly of the sealing ring the groove must be cleaned using a clean cloth.
- Install the combustion seal using a special service tool (SST No.: 09353-L1100).

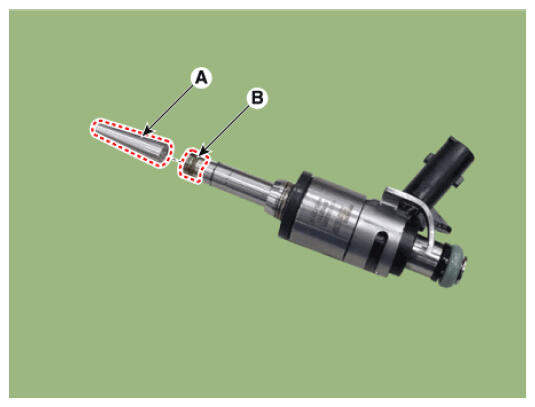

- Place the seal installing guide (A) (SST No.: 09353-2B000) on the tip of the injector not to damage the injector tip (B).

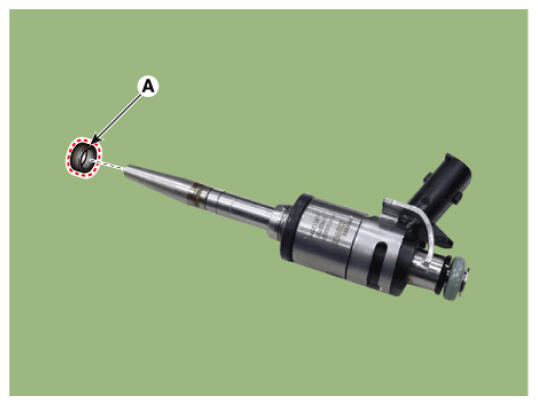

- Install the combustion seal (A) to the seal installing guide.

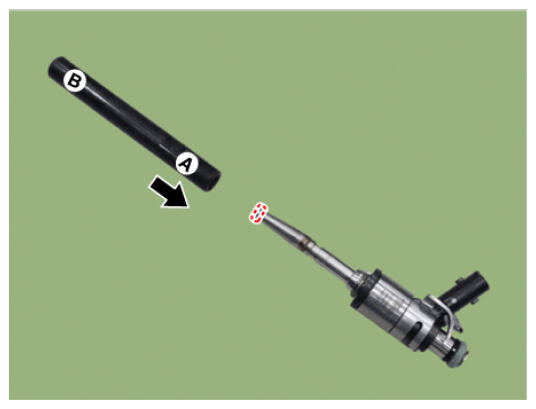

- Input the seal to A direction of the installer, and push it to B direction until it reaches the combustion seal installation area.NOTE:
- The complete assembly must not take longer than 2 to 3 seconds.

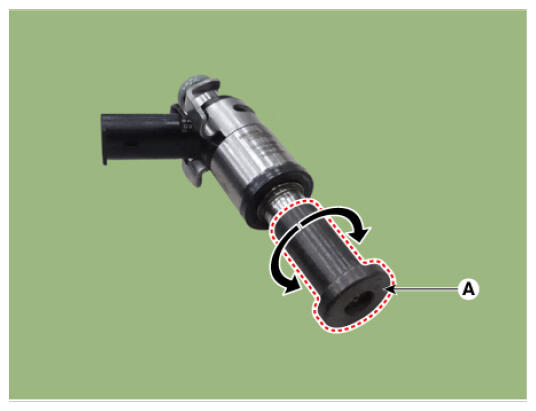

- Install the compressor (A) and disconnect it after rotating 3-4 times to left and right direction.

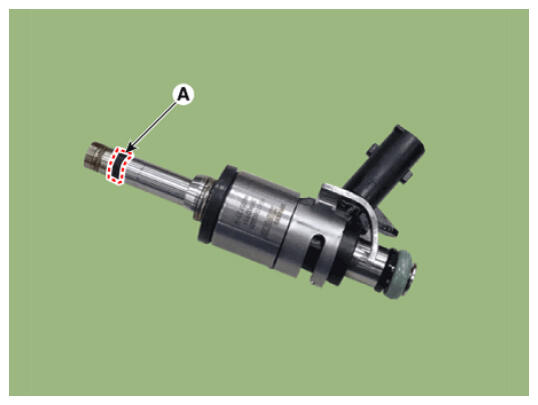

- Check the combustion seal (A) installation.
- Place the seal installing guide (A) (SST No.: 09353-2B000) on the tip of the injector not to damage the injector tip (B).
