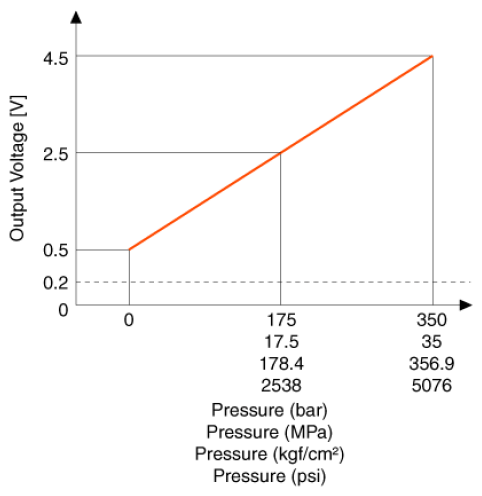

Rail Pressure Sensor (RPS): Specifications: Specification
WARNING: This page is about a different variant/trim than selected.
| Pressure |
Output Voltage (V) [Vref = 5V] |
| Bar |
[MPa (kgf/cm2
, psi)] |
| 0 |
0 (0, 0) |
0.5 |
| 175 |
17.5 (178.5, 2538.2) |
2.5 |
| 350 |
35 (356.9, 5076.3) |
4.5 |
 Courtesy of HYUNDAI MOTOR AMERICA
|
