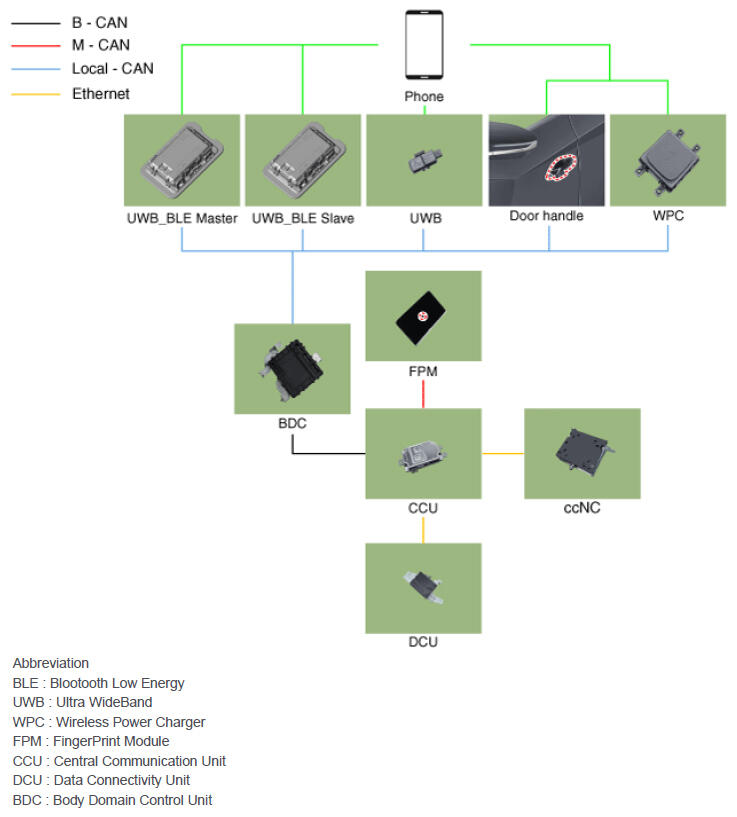

System Flow Chart

WARNING: This page is about a different variant/trim than selected.
G16984233Courtesy of HYUNDAI MOTOR AMERICA
