IAU Learning method

WARNING: This page is about a different variant/trim than selected.

Learning between IAU-BDC is carried out to set up the digital key system.

CAUTION:

When learning IAU-BDC, the digital key information previously stored in the vehicle is deleted.
It is used after re-enrolling the digital key.

Connect the diagnostic tool to the vehicle.

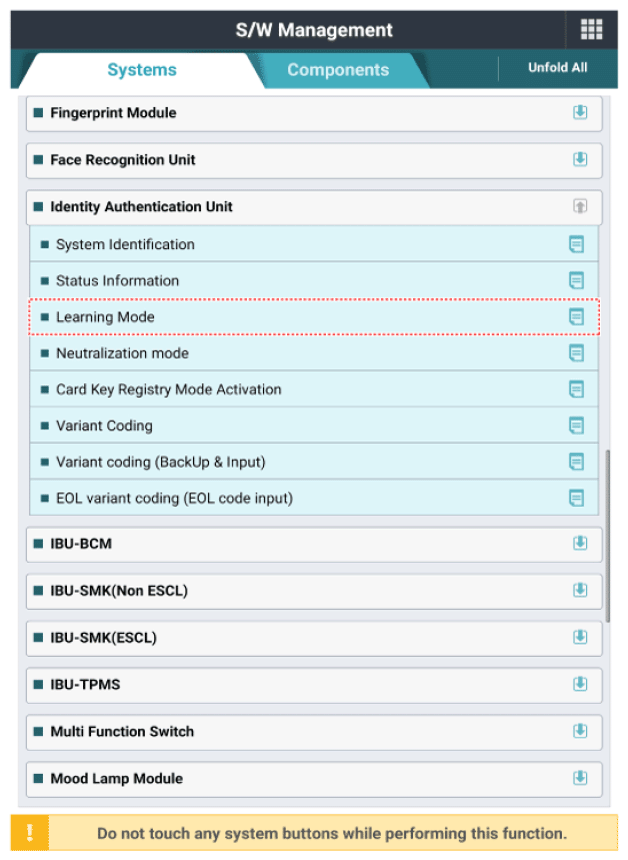

Select the 'S/W Management' and 'Learning Mode'.

Courtesy of HYUNDAI MOTOR AMERICA

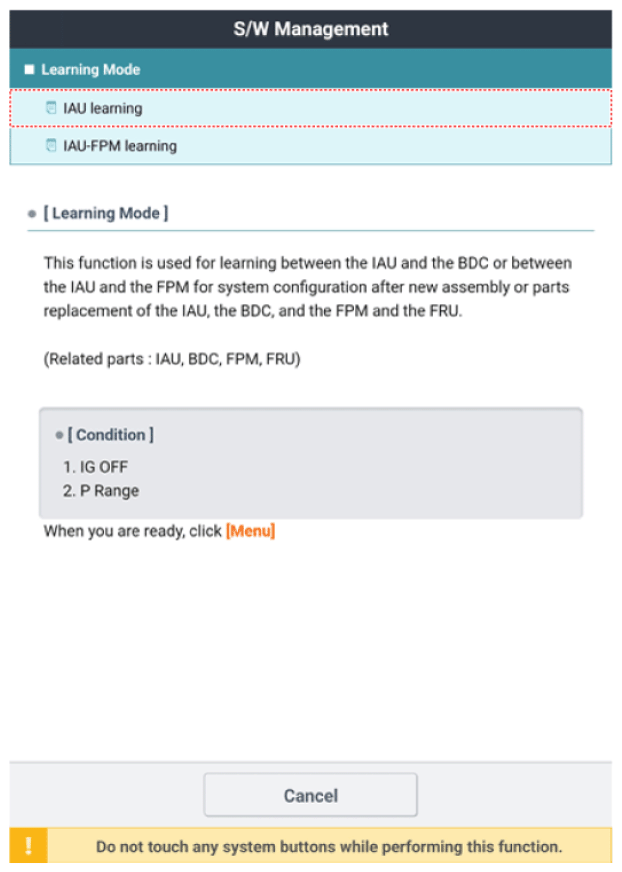

Select IAU learning and perform the procedure according to the required conditions.

Courtesy of HYUNDAI MOTOR AMERICA
