IAU-FPM Learning method

WARNING: This page is about a different variant/trim than selected.

Learning between IAU-FPM is carried out to set up the fingerprint recognition system.

CAUTION:

When learning IAU-FPM, the fingerprint recognition information previously stored in the vehicle is deleted.
It is used after re-enrolling the fingerprint.

Connect the diagnostic tool to the vehicle.

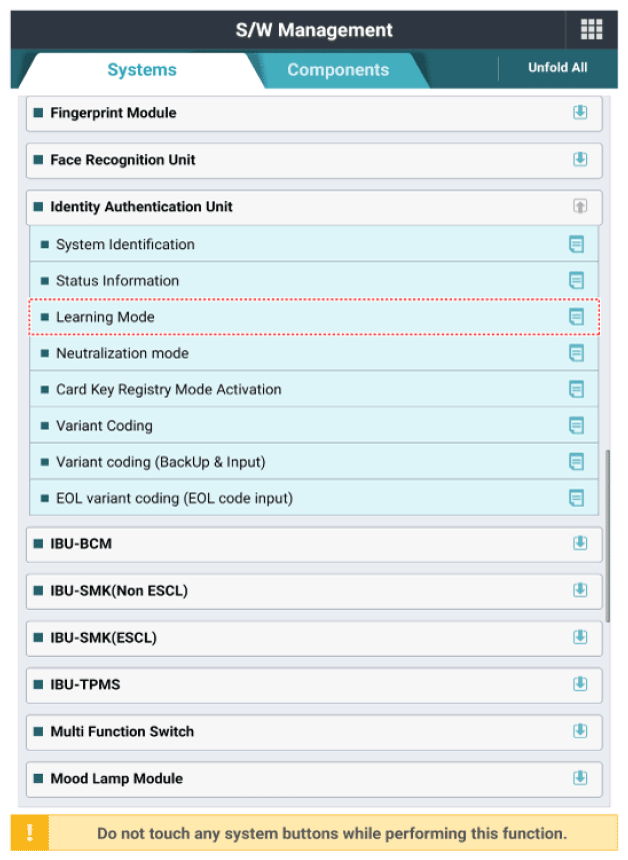

Select the 'S/W Management' and 'Learning Mode'.

Courtesy of HYUNDAI MOTOR AMERICA

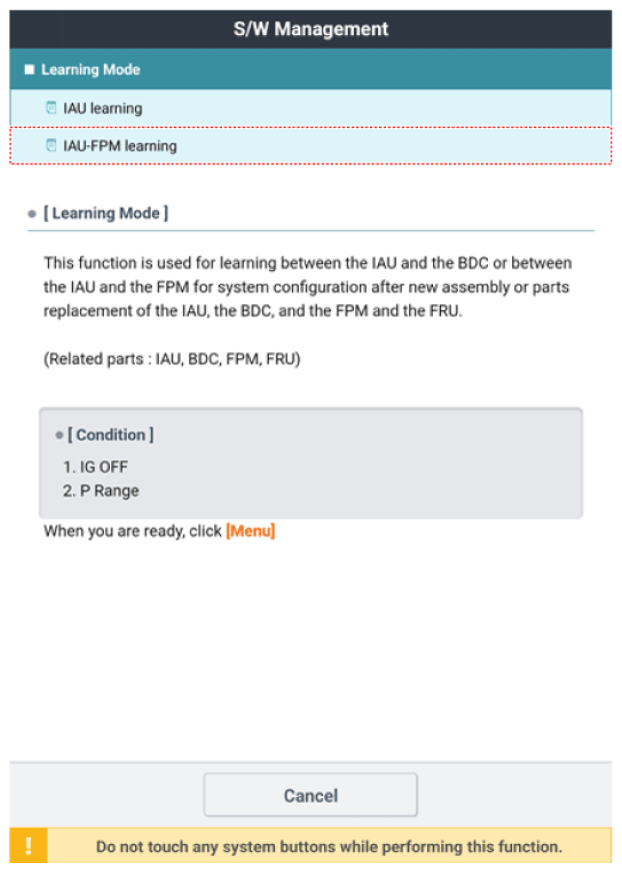

Select IAU-FPM learning and perform the procedure according to the required conditions.

Courtesy of HYUNDAI MOTOR AMERICA
