Code 11: Crank Angle Sensor

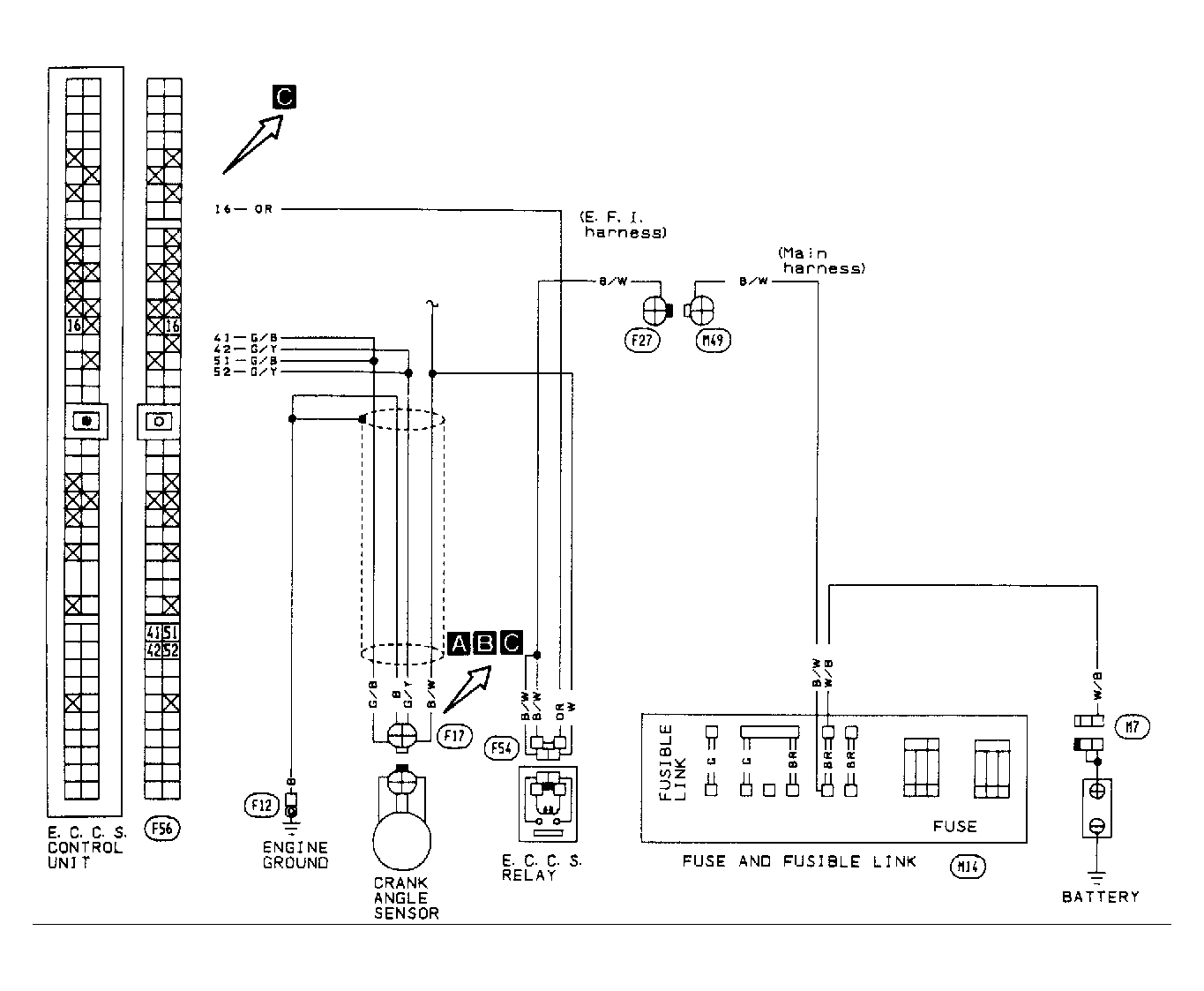

Fig 1: Code 11: Crank Angle Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

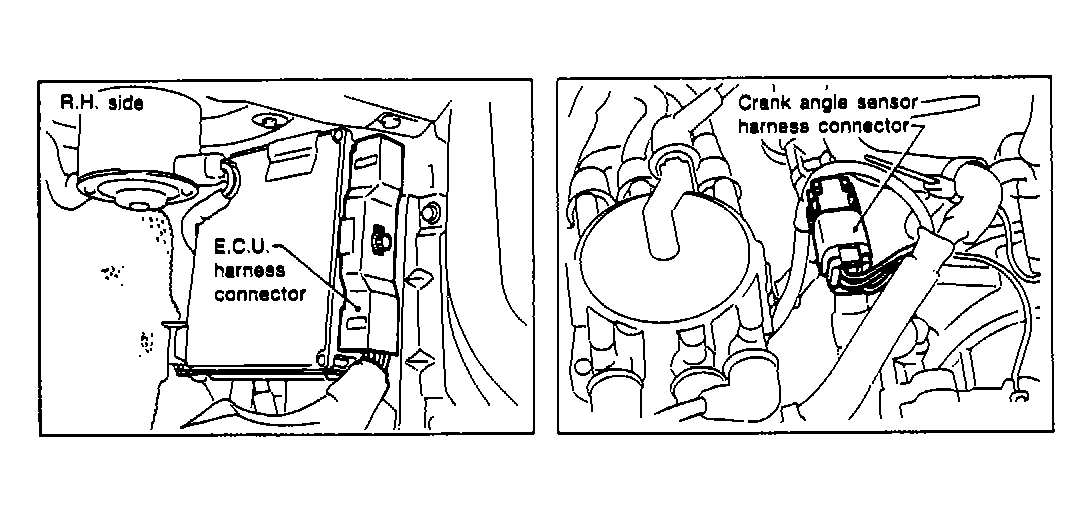

Fig 2: Code 11: Crank Angle Sensor & ECU Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

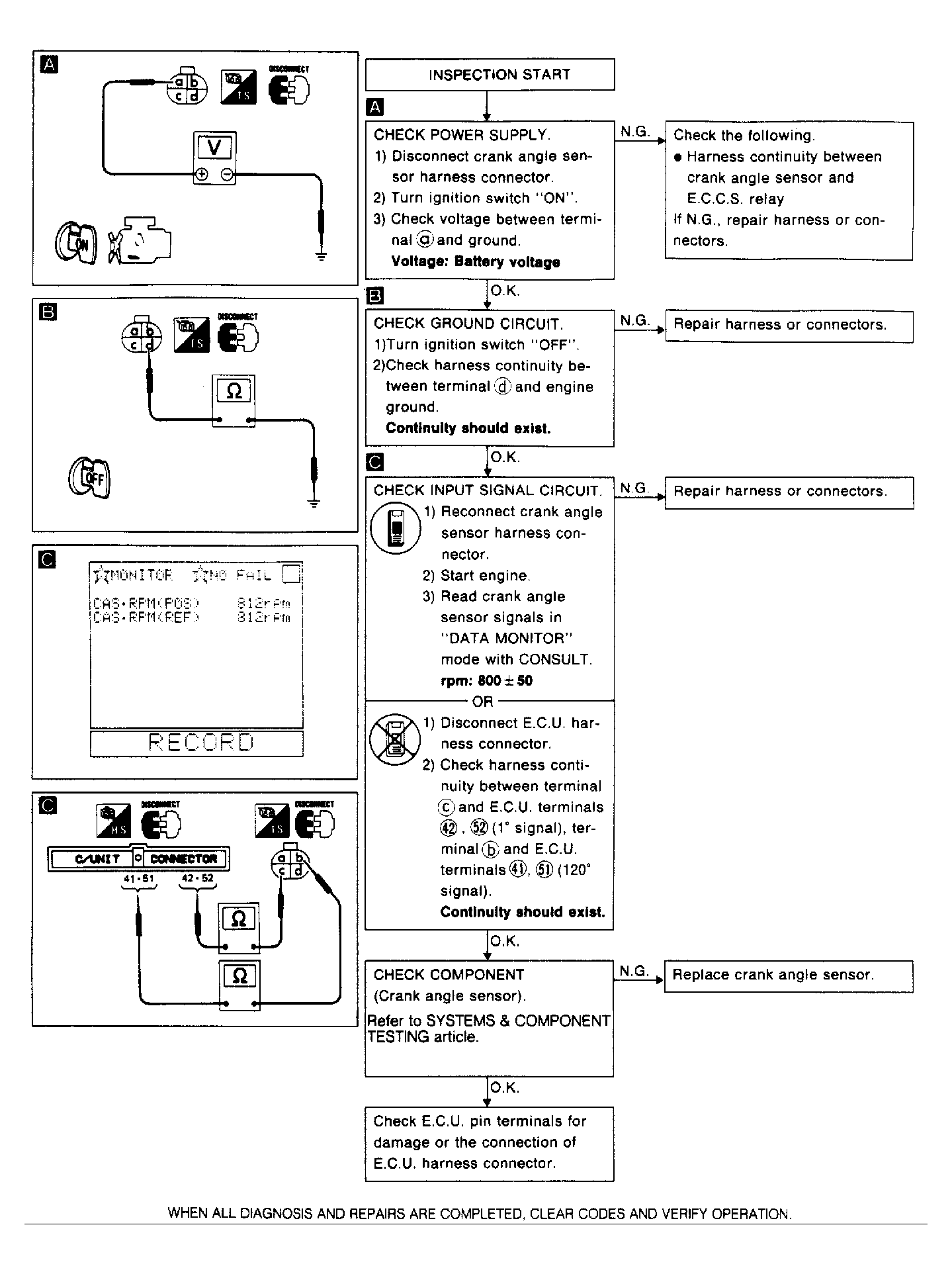

Fig 3: Code 11: Crank Angle Sensor Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
