Code 12: Airflow Meter

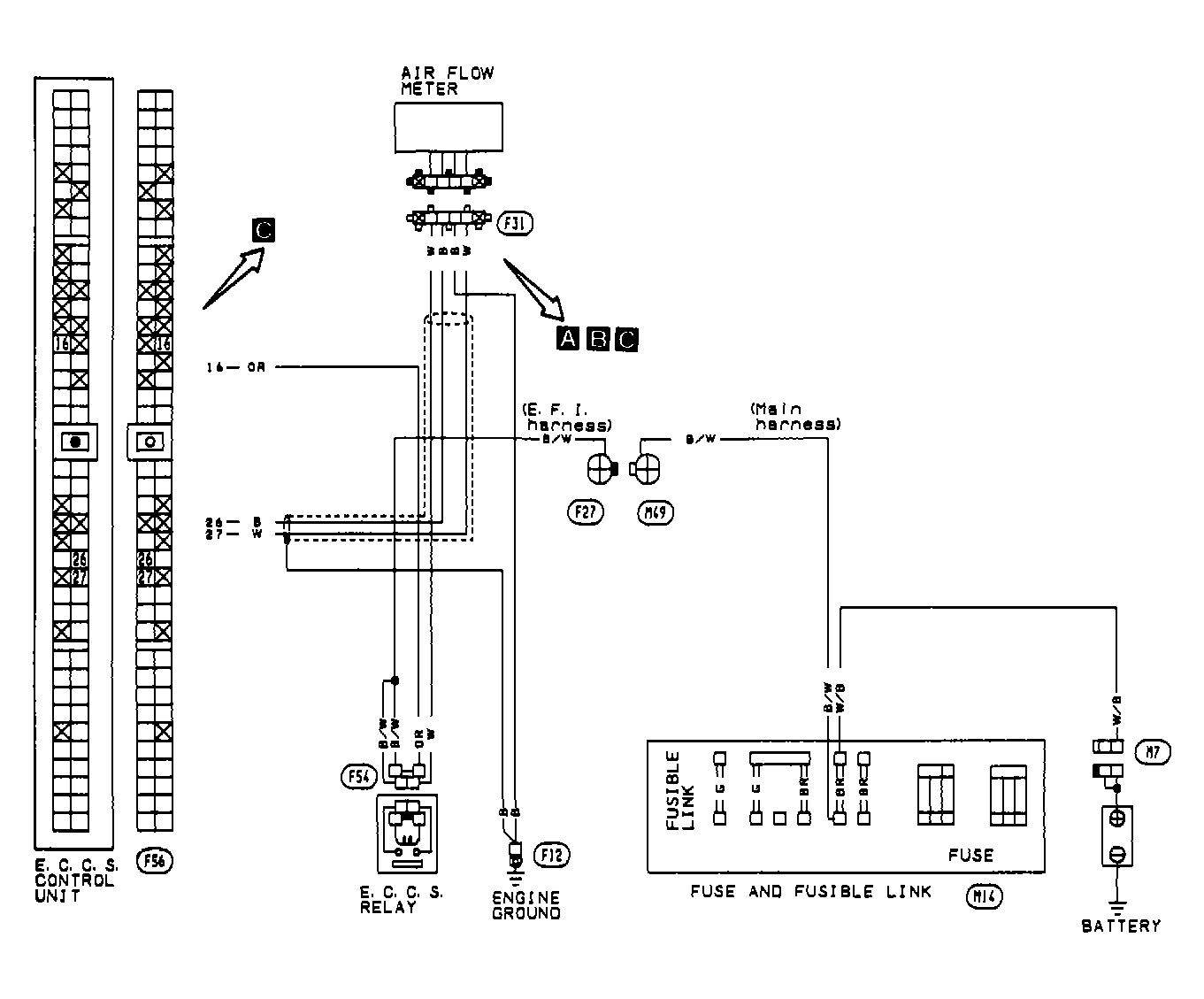

Fig 1: Code 12: Air Flow Meter Circuit Diagram
G90H18645Courtesy of NISSAN MOTOR CO., U.S.A.

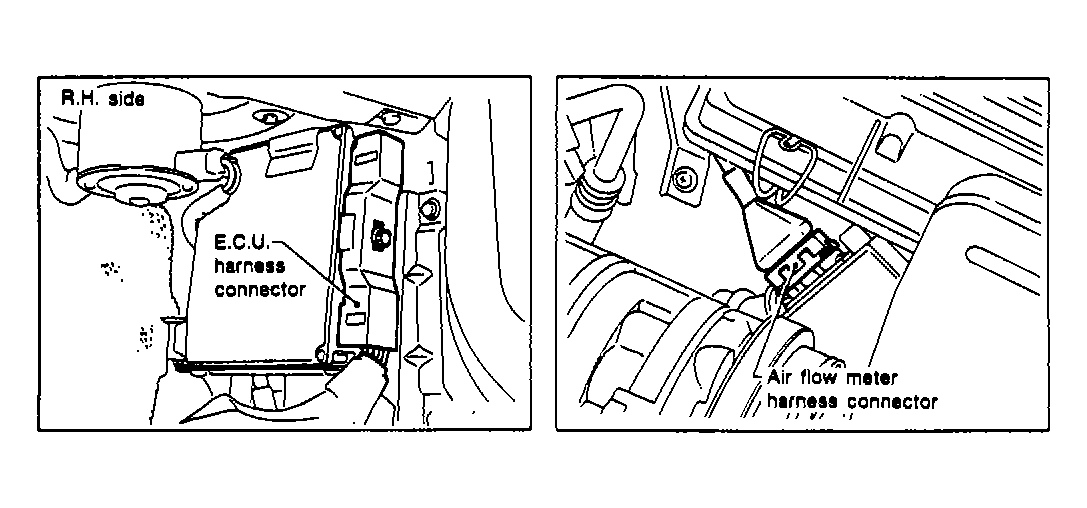

Fig 2: Code 12: Air Flow Meter & ECU Harness Location
G90I18646Courtesy of NISSAN MOTOR CO., U.S.A.

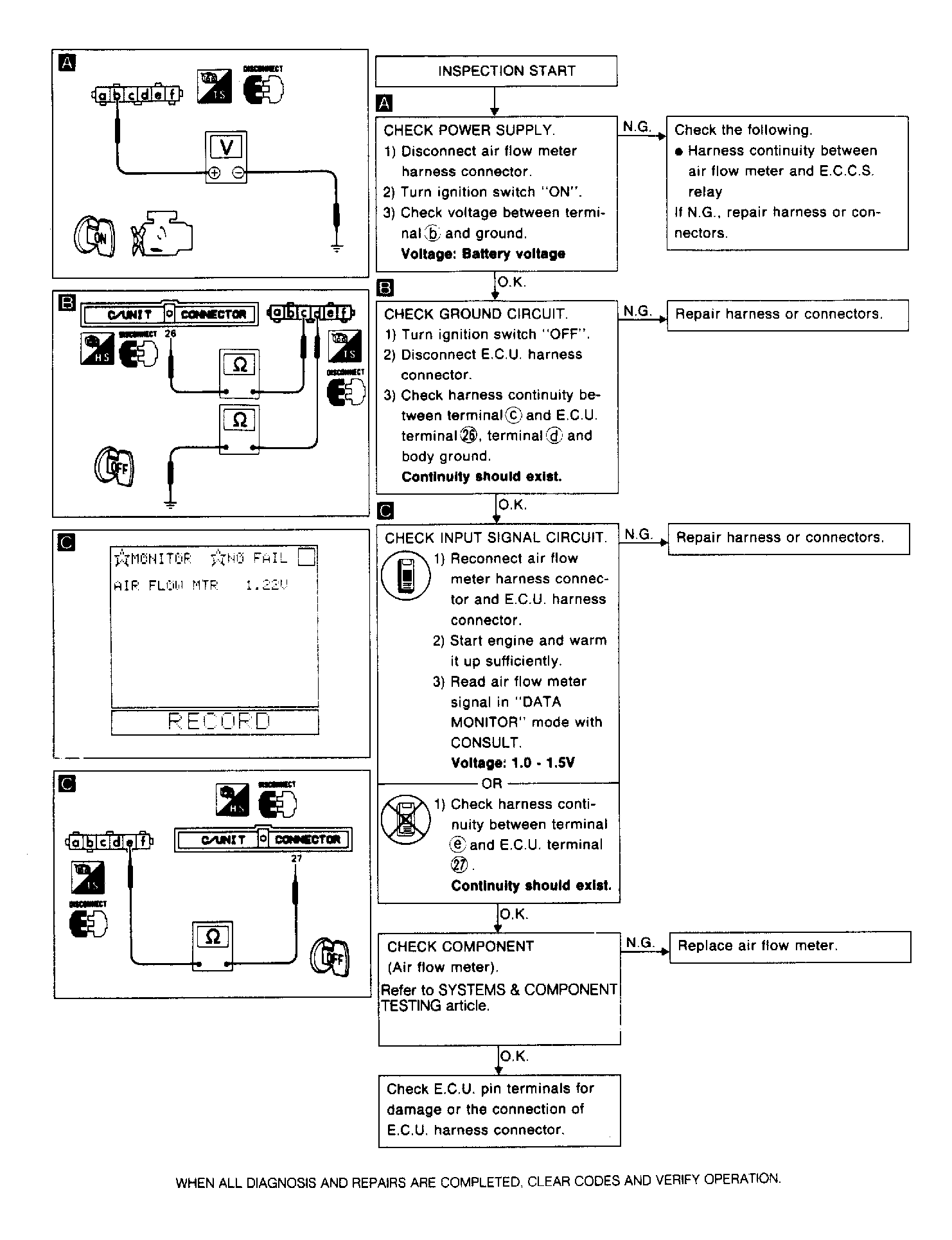

Fig 3: Code 12: Air Flow Meter Flow Chart
G90J18647Courtesy of NISSAN MOTOR CO., U.S.A.
