Code 13: Engine (Coolant) Temp Sensor

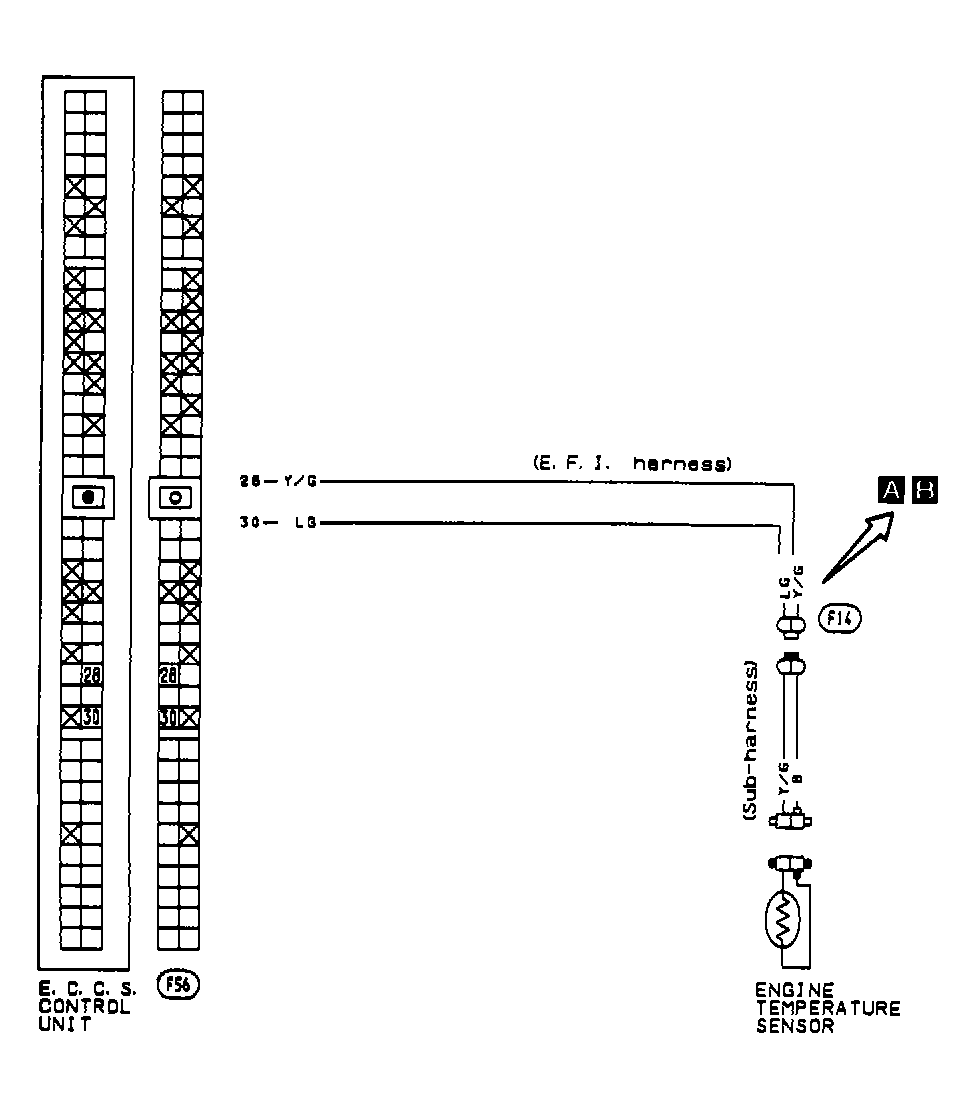

Fig 1: Code 13: Engine Temp Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

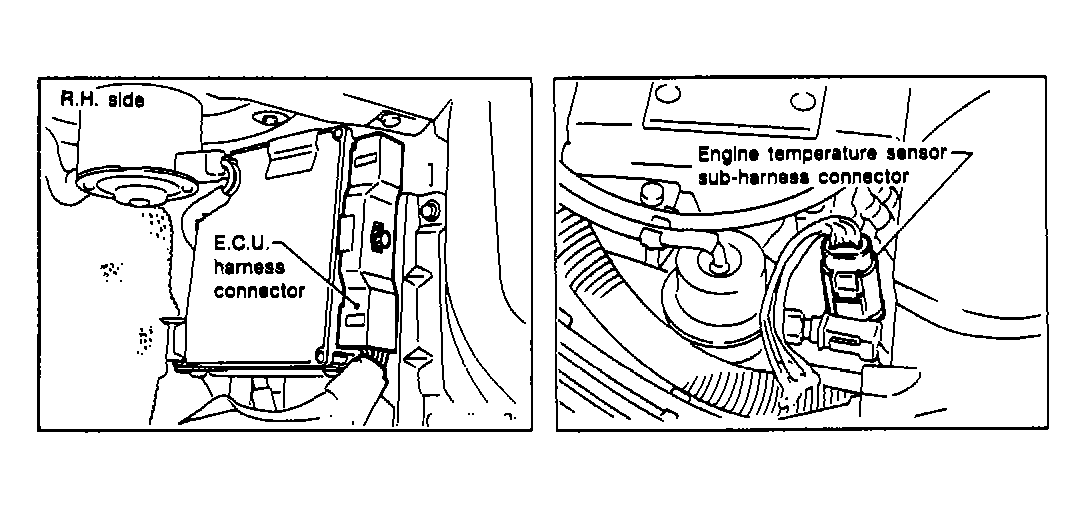

Fig 2: Code 13: Engine Temp Sensor & ECU Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

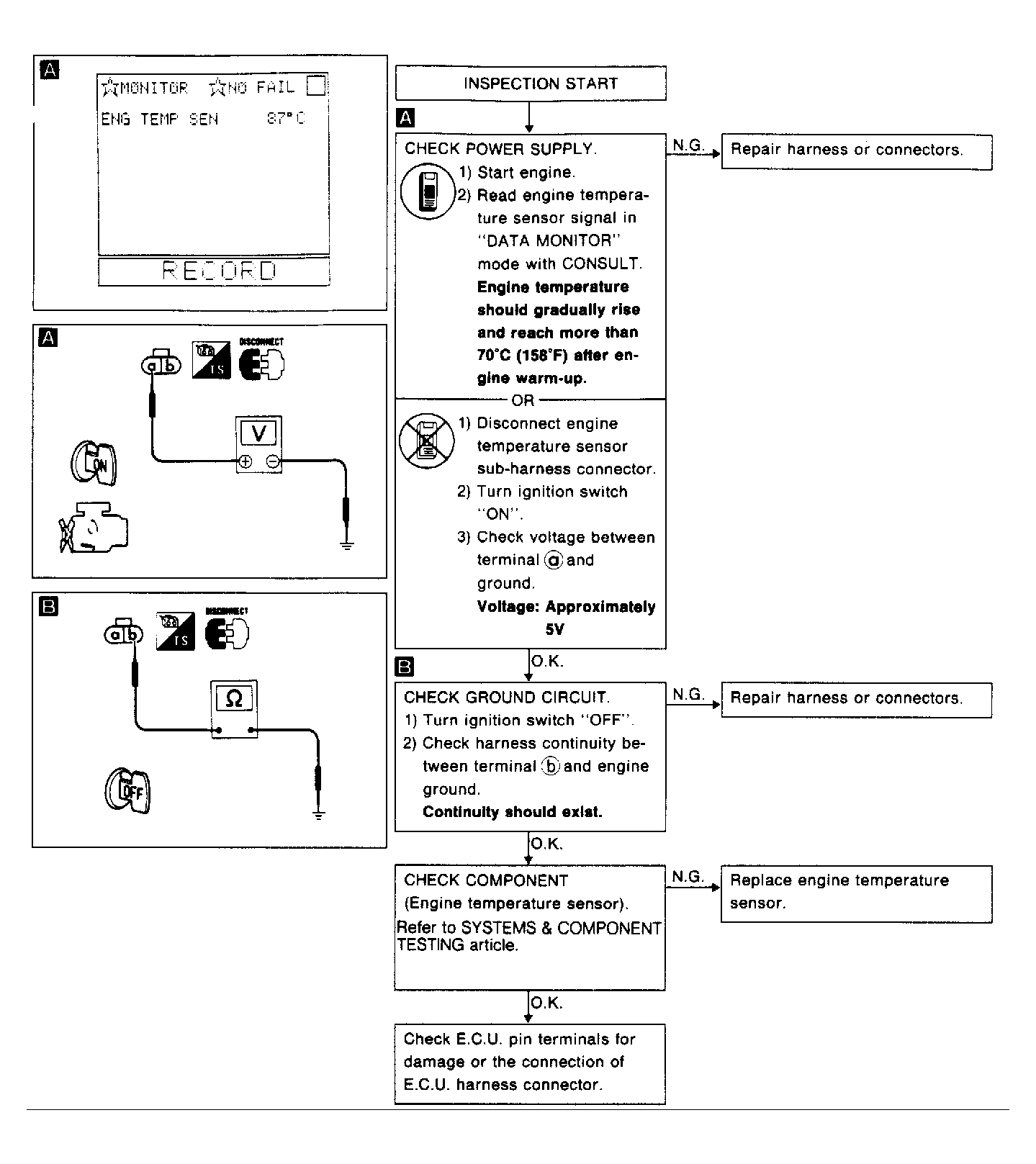

Fig 3: Code 13: Engine Temp Sensor Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
