Code 21: Ignition Signal Circuit

Fig 1: Code 21: Ignition Signal Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

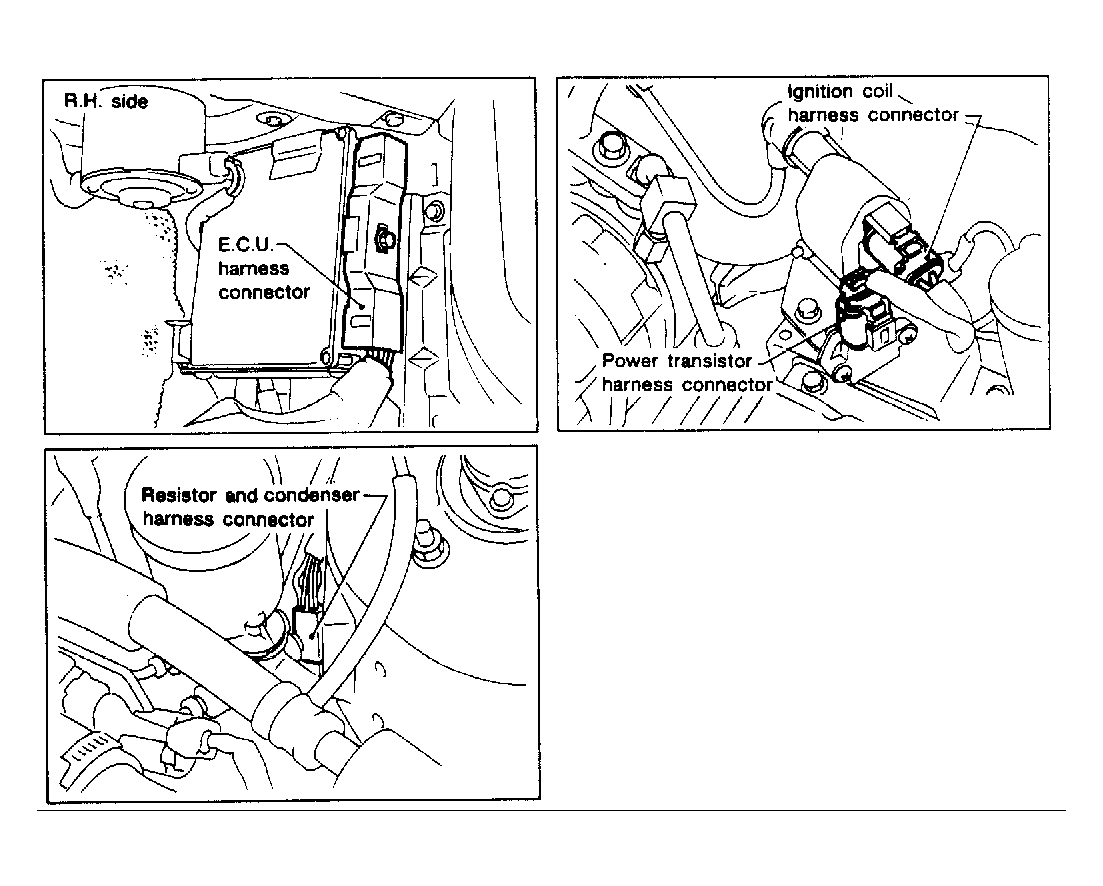

Fig 2: Code 21: Component Harness Connector Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

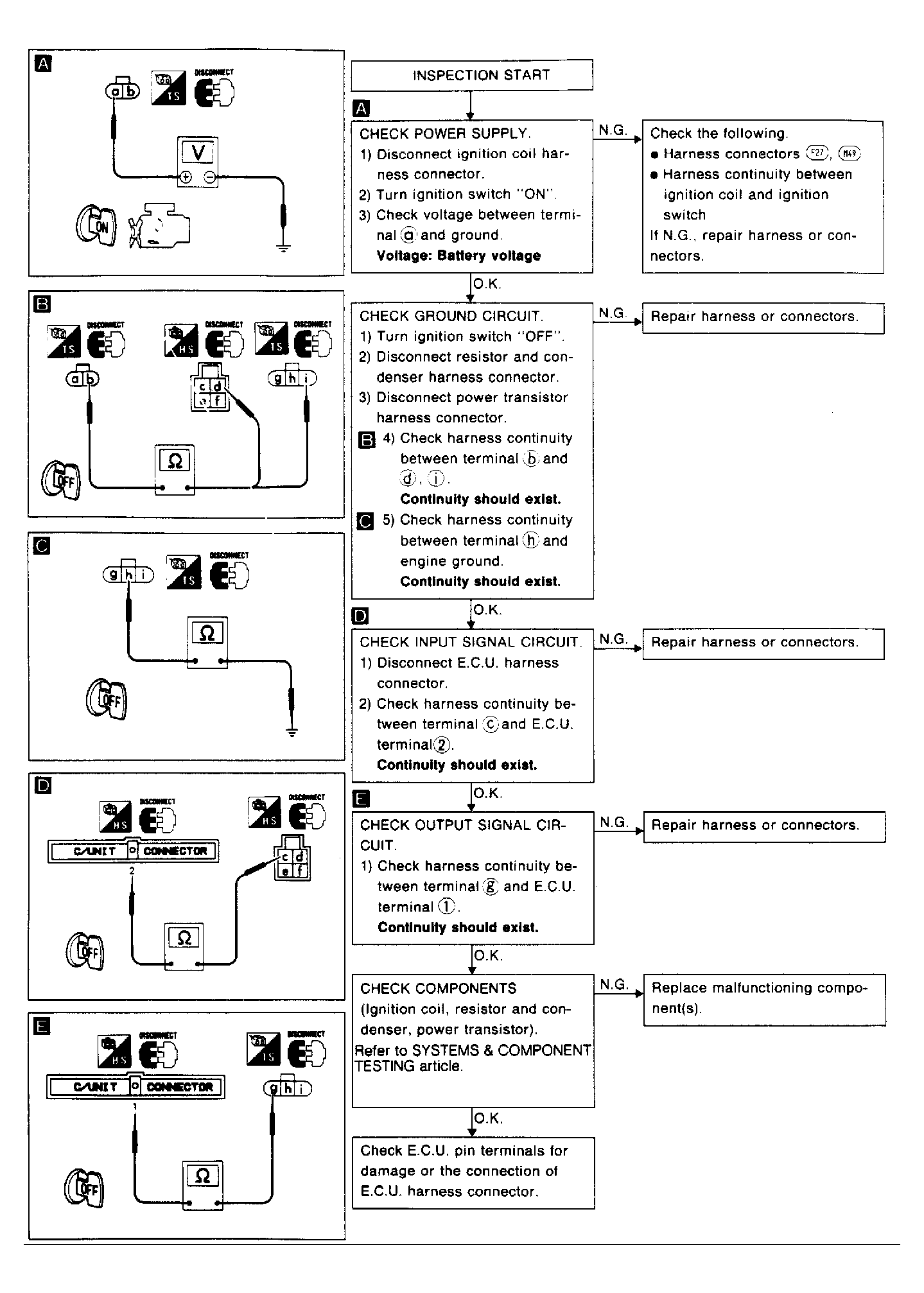

Fig 3: Code 21: Ignition Signal Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
