Code 33: Oxygen Sensor

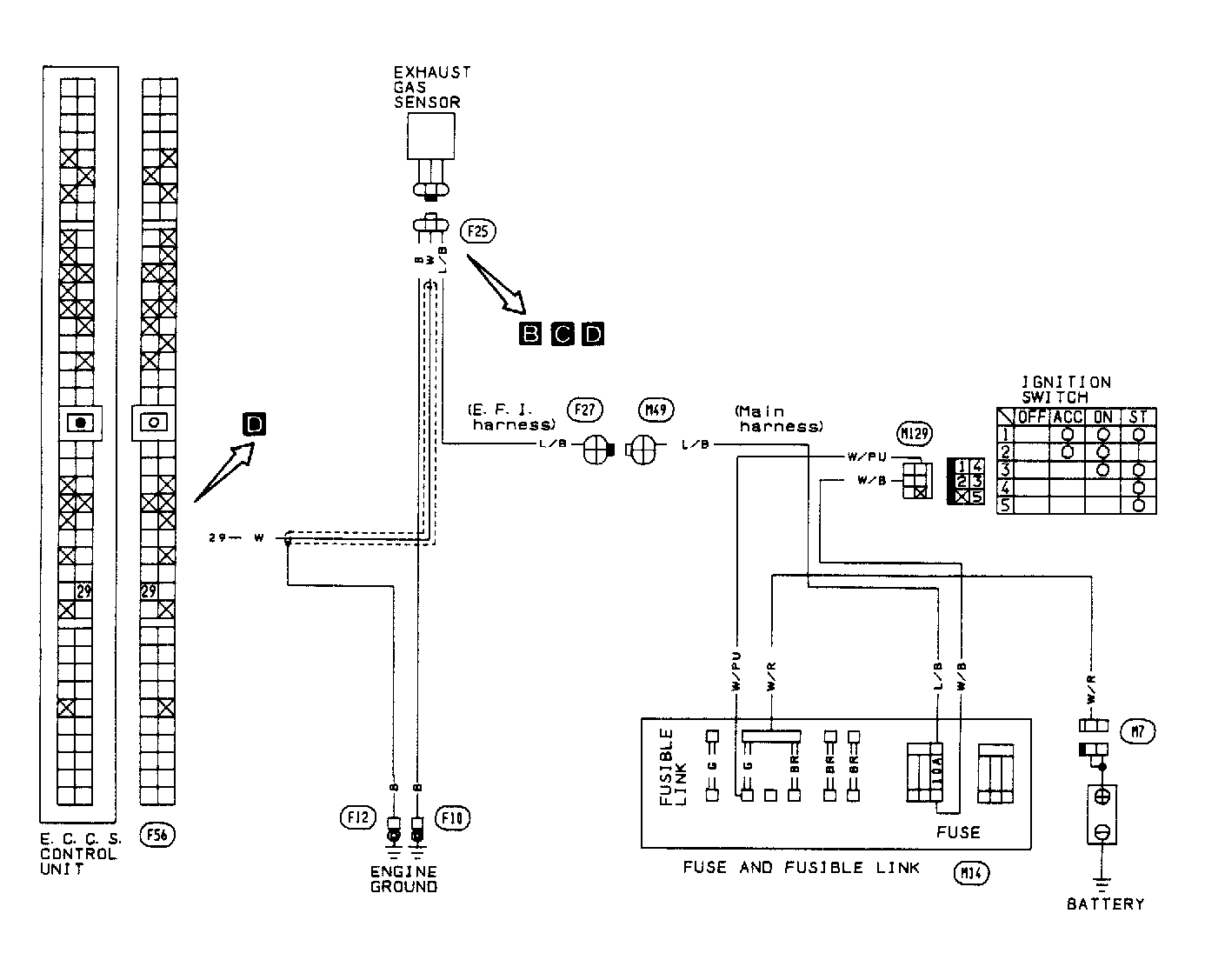

Fig 1: Code 33: O2 Sensor Circuit Diagram
G90E18667Courtesy of NISSAN MOTOR CO., U.S.A.

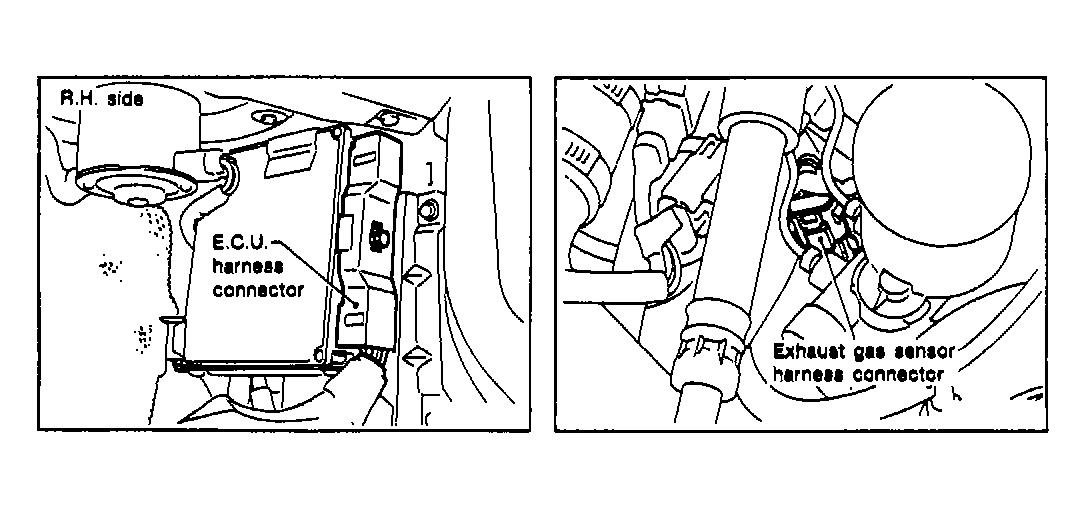

Fig 2: Code 33: Component Harness Connector Locations
G90F18668Courtesy of NISSAN MOTOR CO., U.S.A.

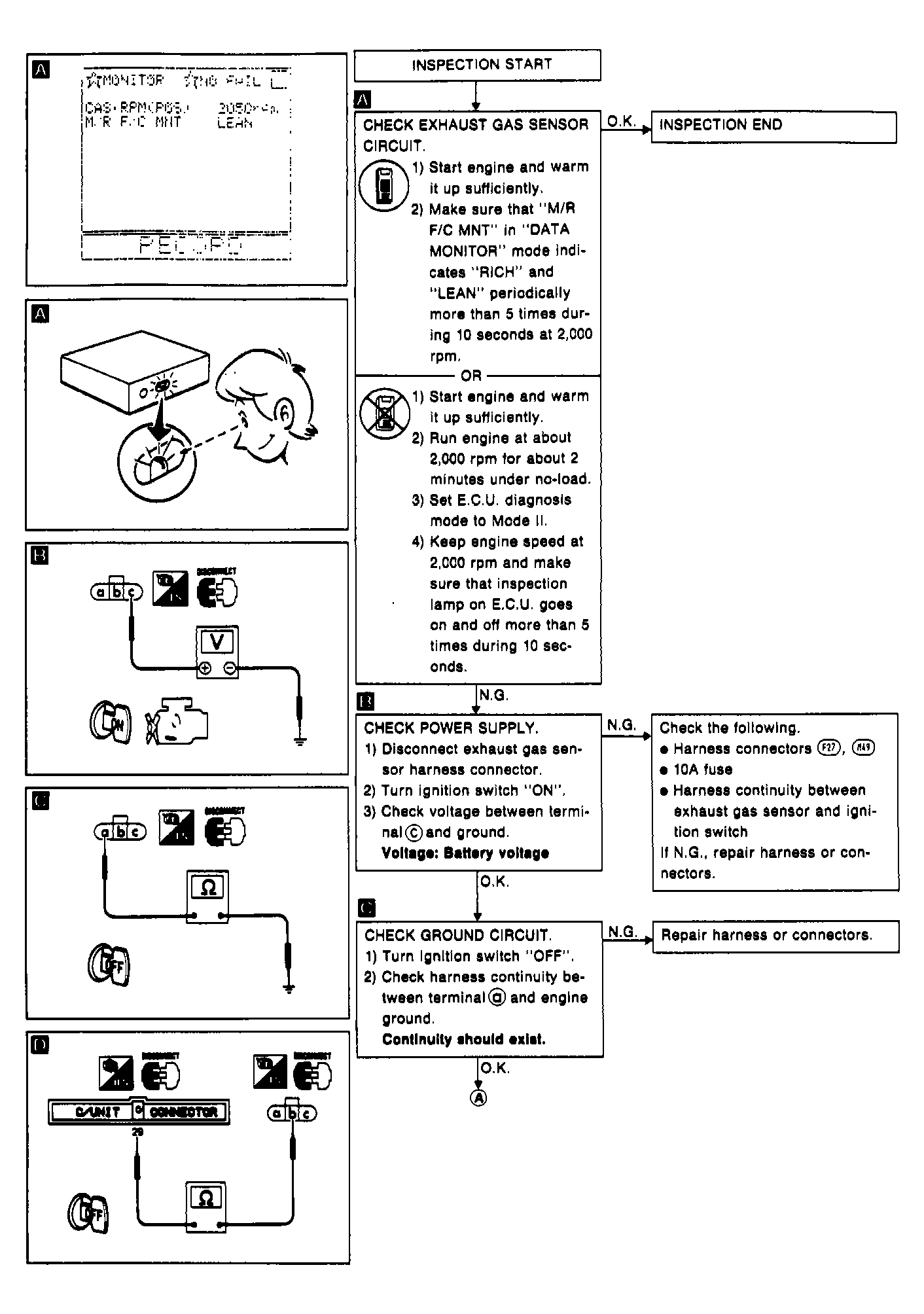

Fig 3: Code 33: O2 Sensor Flow Chart (1 of 2)
G90G18669Courtesy of NISSAN MOTOR CO., U.S.A.

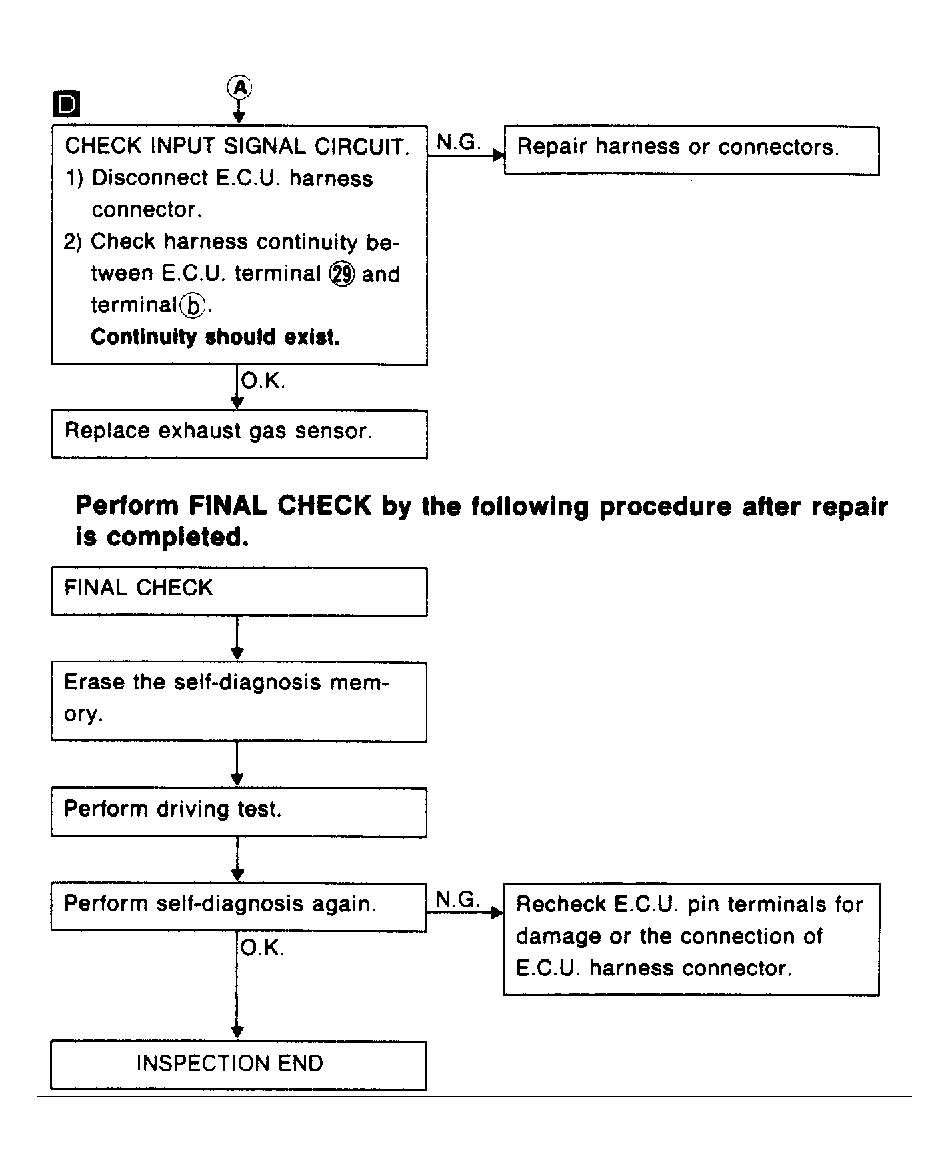

Fig 4: Code 33: O2 Sensor Flow Chart (2 of 2)
G90J18670Courtesy of NISSAN MOTOR CO., U.S.A.
