Code 34: Knock (Detonation) Sensor

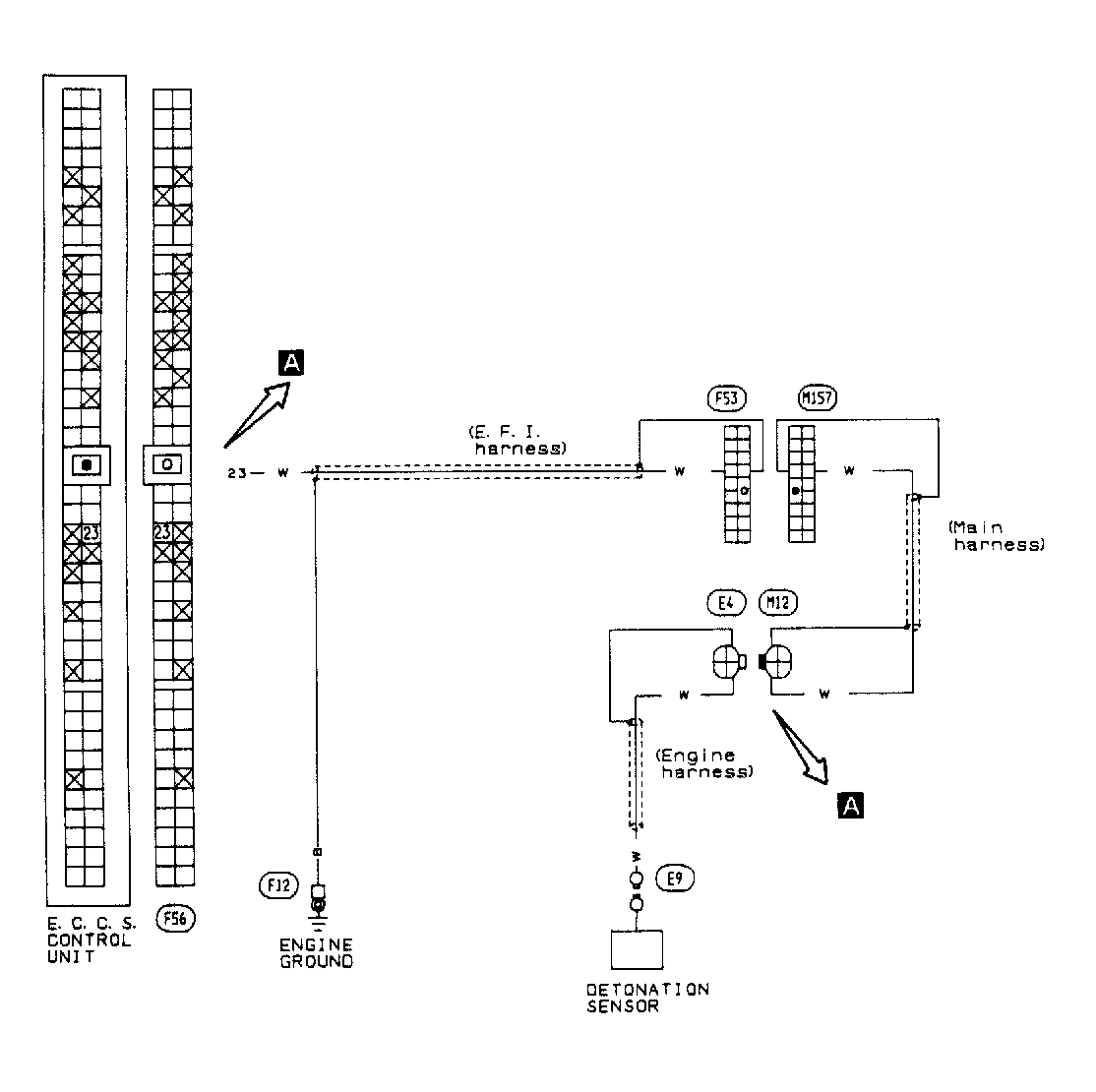

Fig 1: Code 34: Knock Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

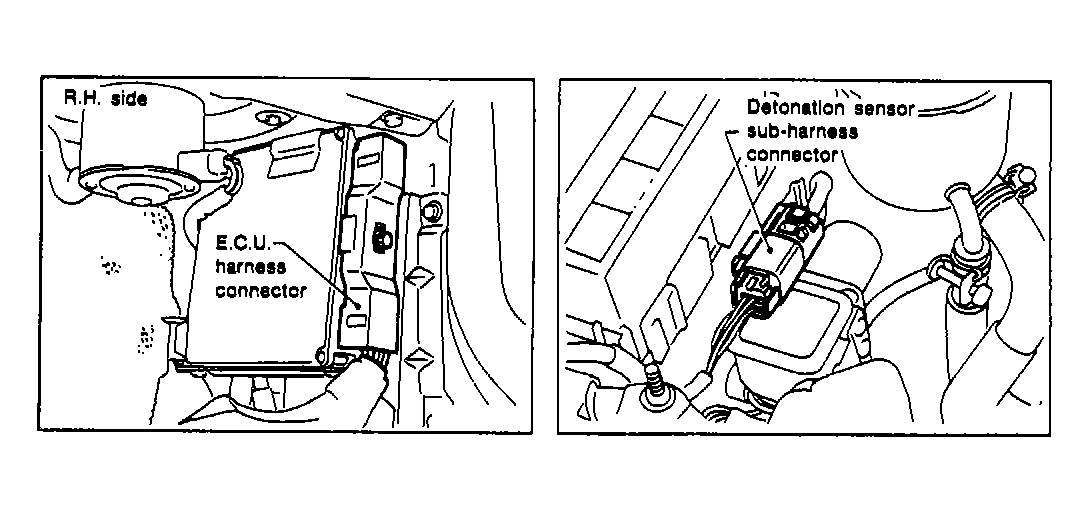

Fig 2: Code 34: Component Harness Connector Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

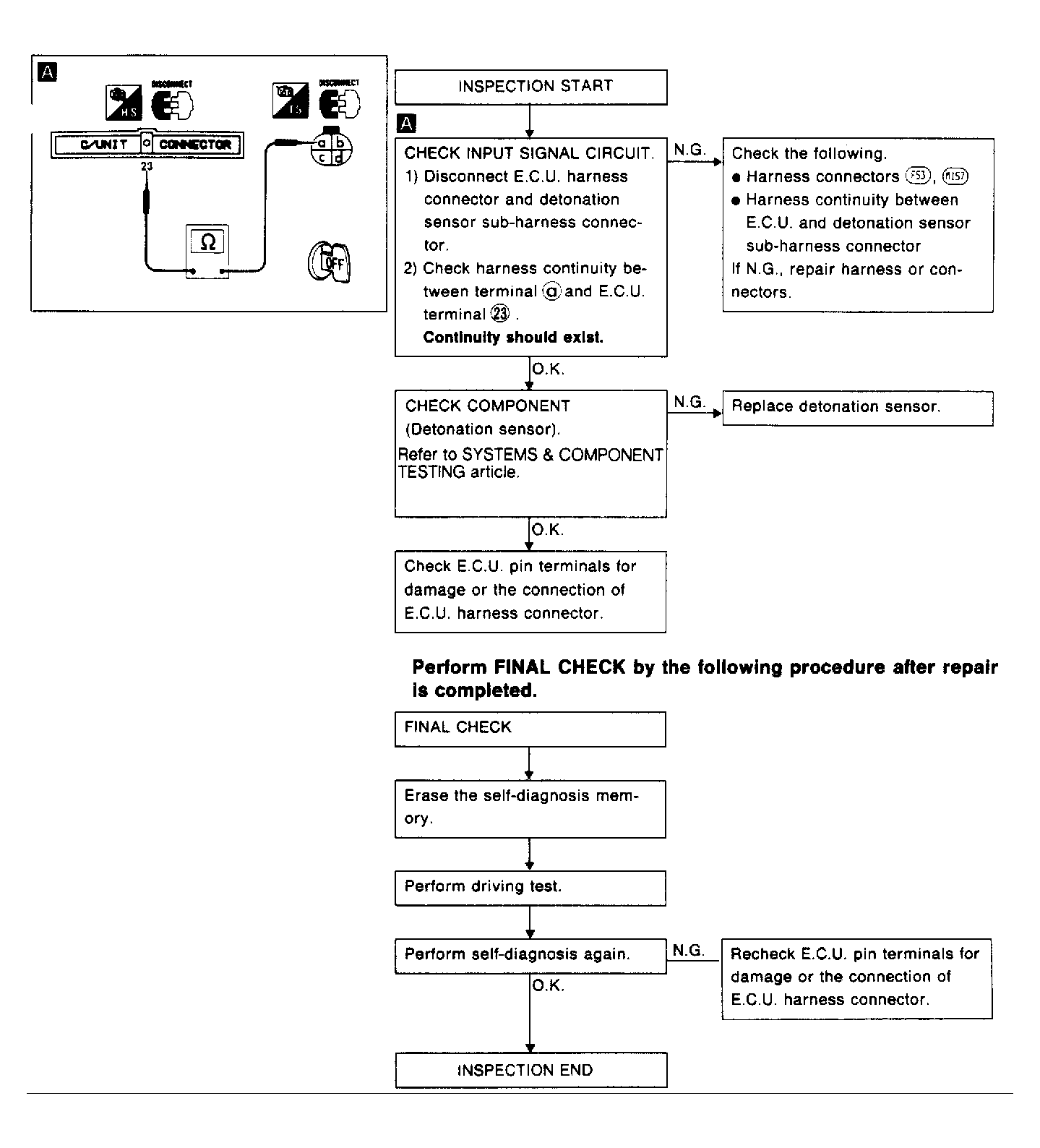

Fig 3: Code 34: Knock Sensor Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
