Code 43: Throttle Position Sensor

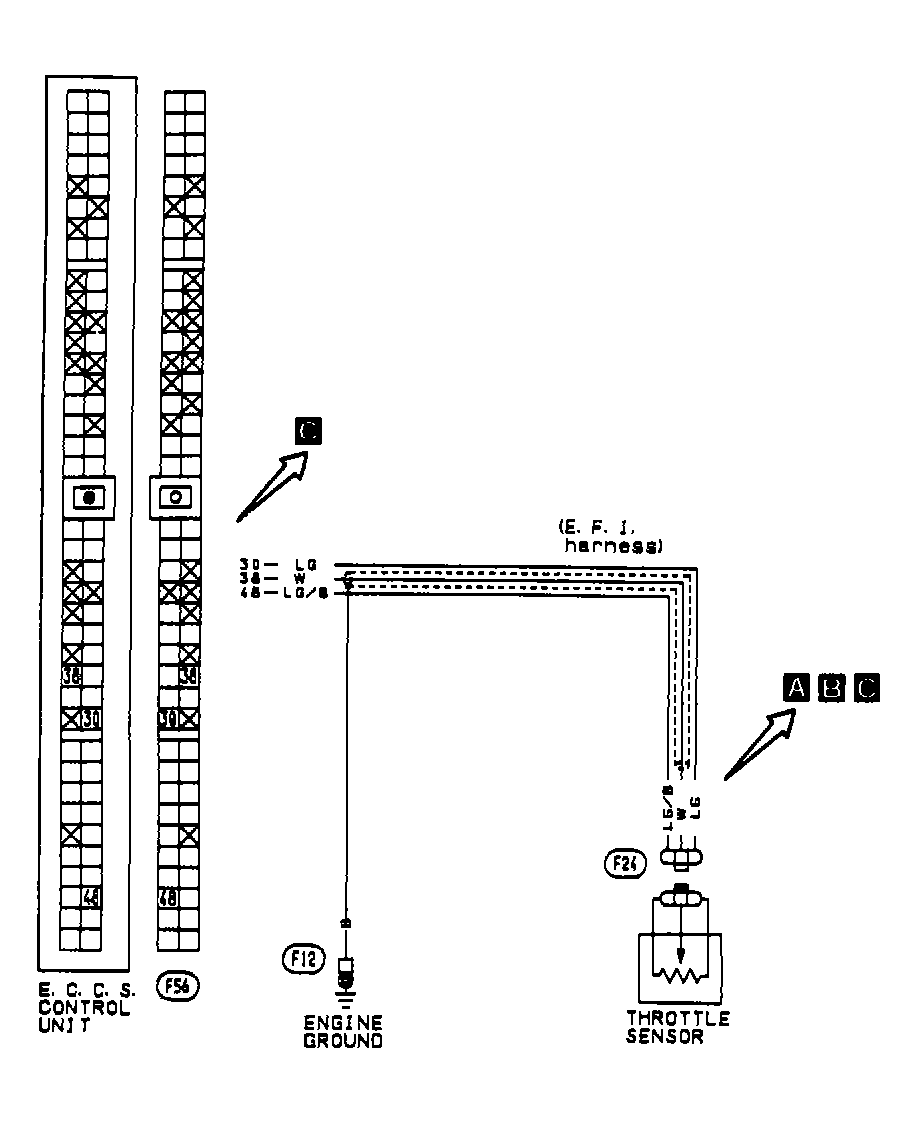

Fig 1: Code 43: TPS Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

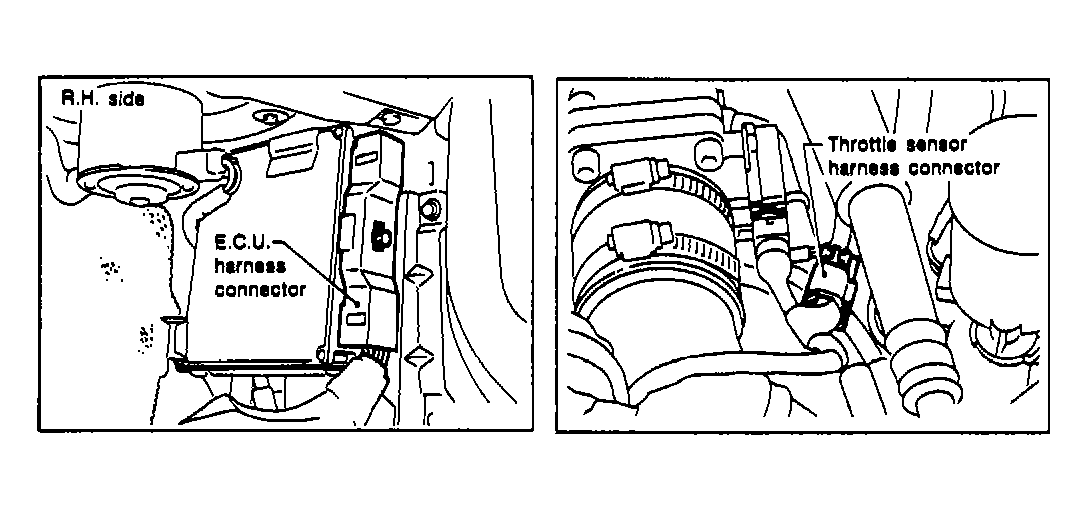

Fig 2: Code 43: Component Harness Connector Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

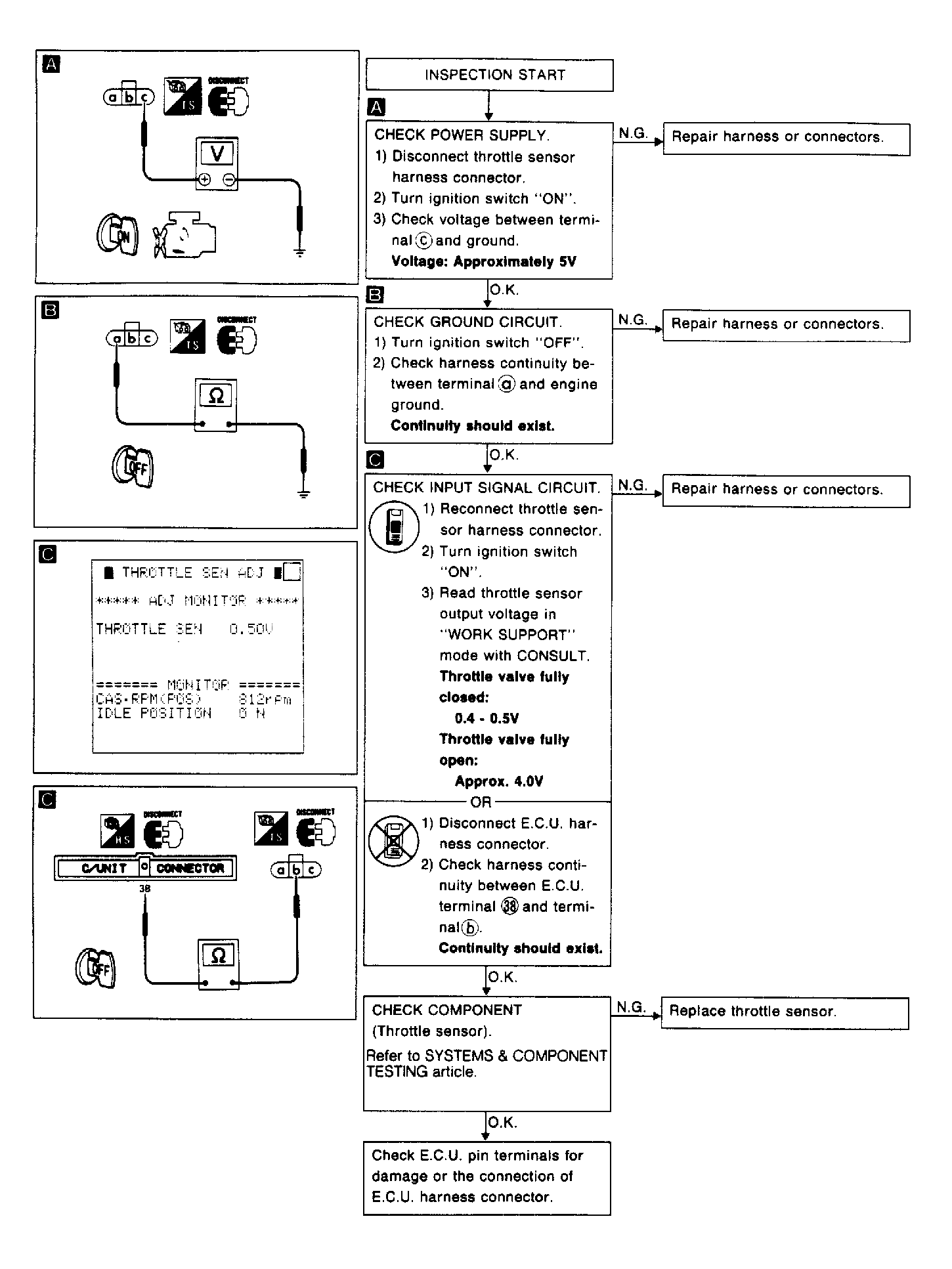

Fig 3: Code 43: TPS Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
