Code 12: Airflow Meter (Q45)

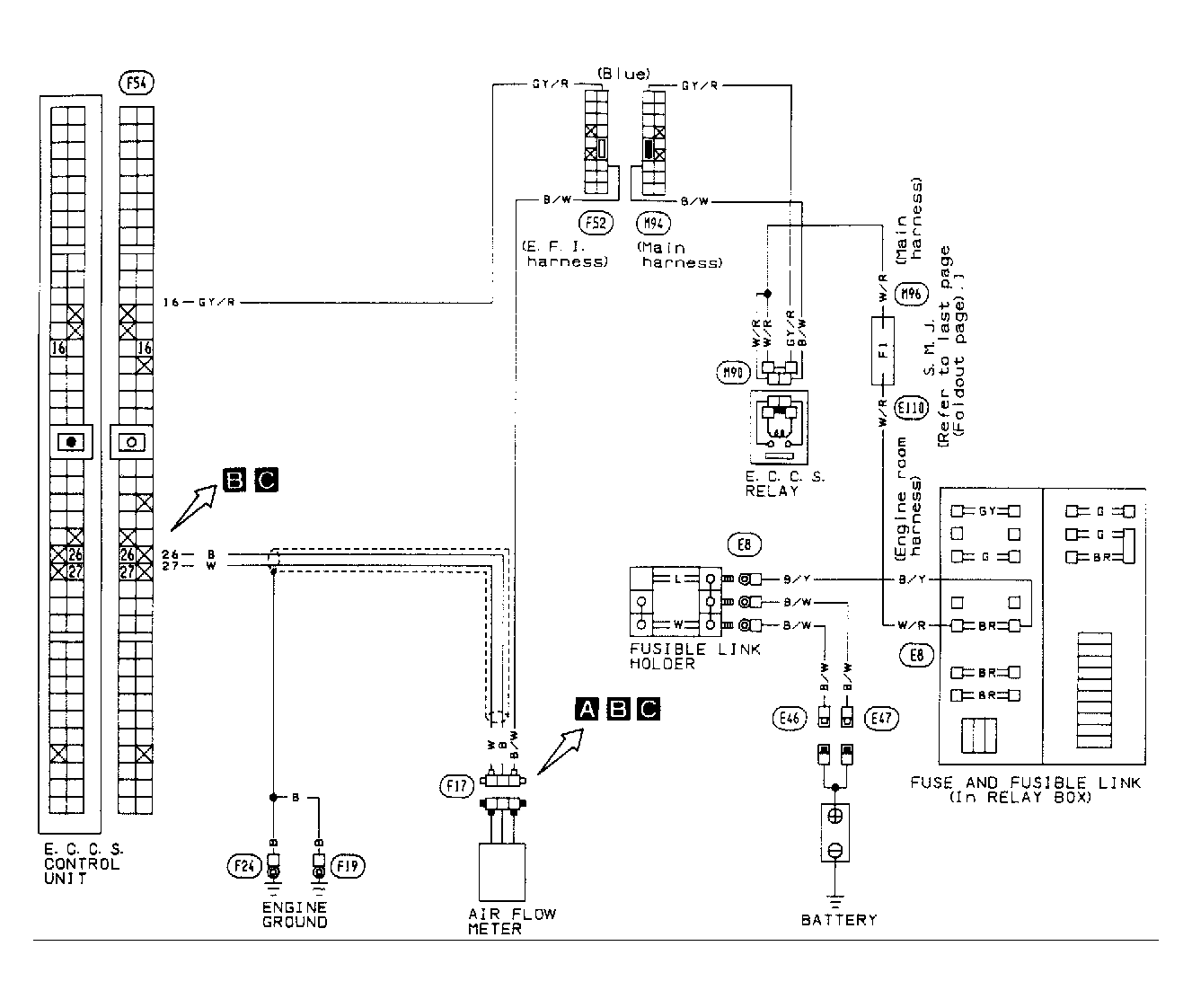

Fig 1: Q45 Code 12: Air Flow Meter Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

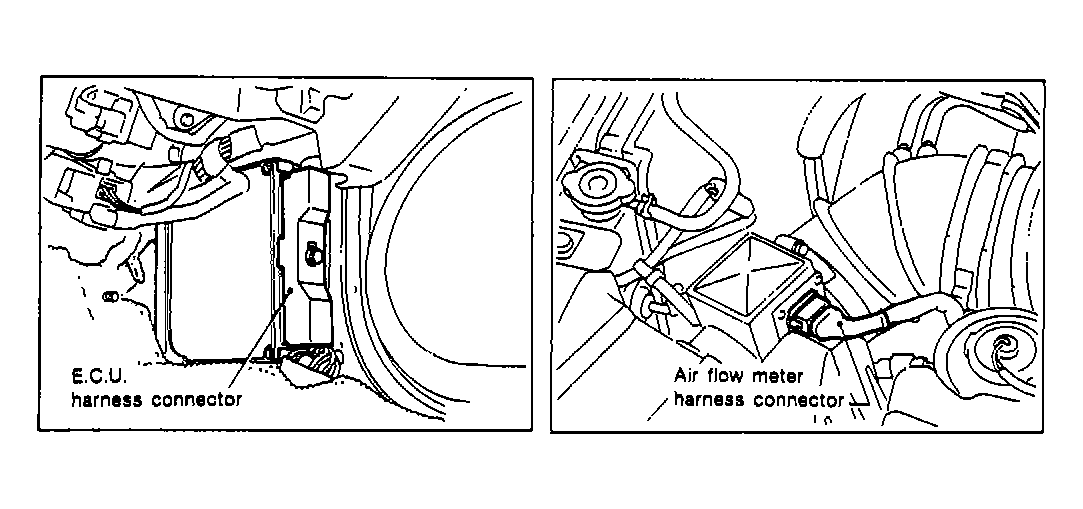

Fig 2: Q45 Code 12: Air Flow Meter & ECU Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

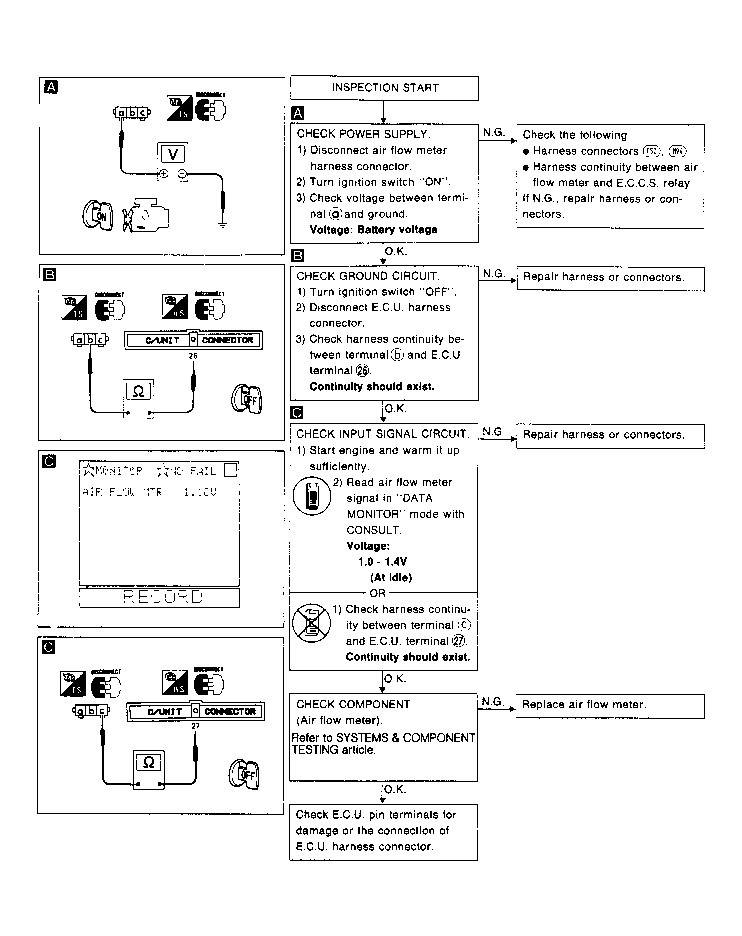

Fig 3: Q45 Code 12: Air Flow Meter Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
