Code 34: Knock (Detonation) Sensor (Q45)

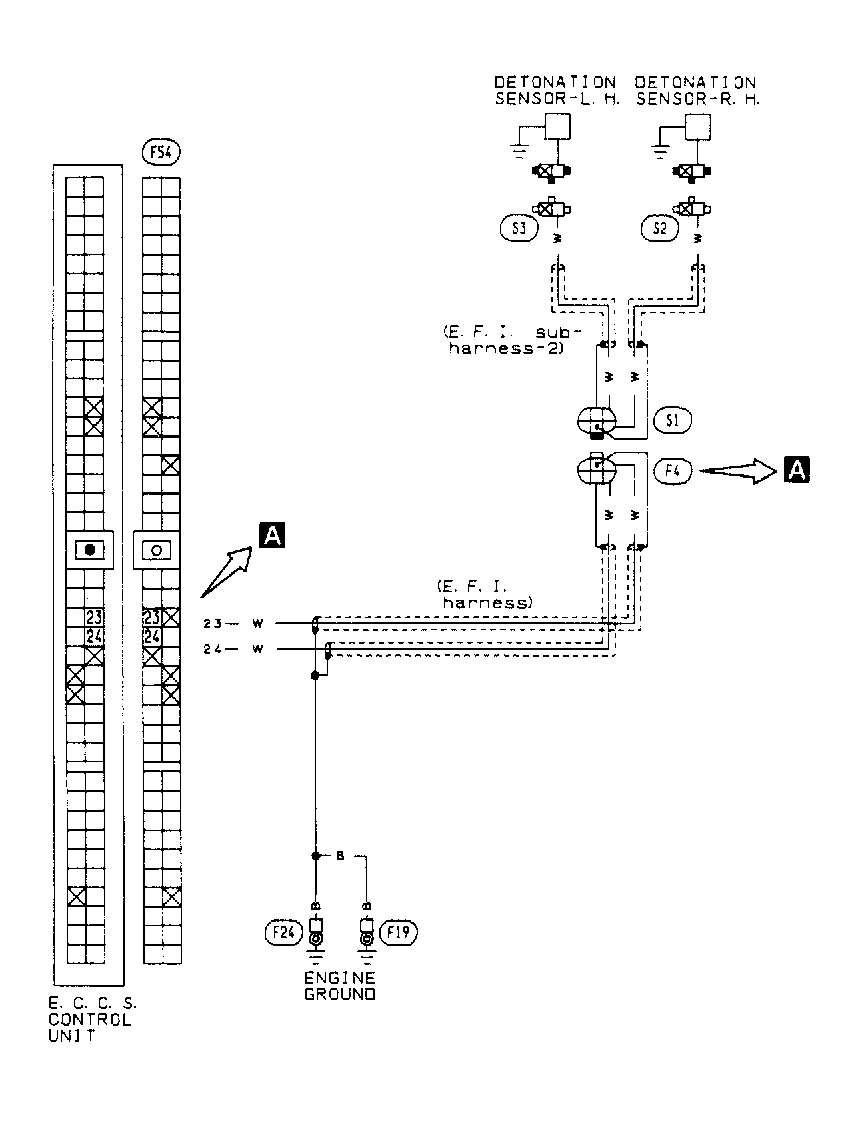

Fig 1: Q45 Code 34: Knock Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

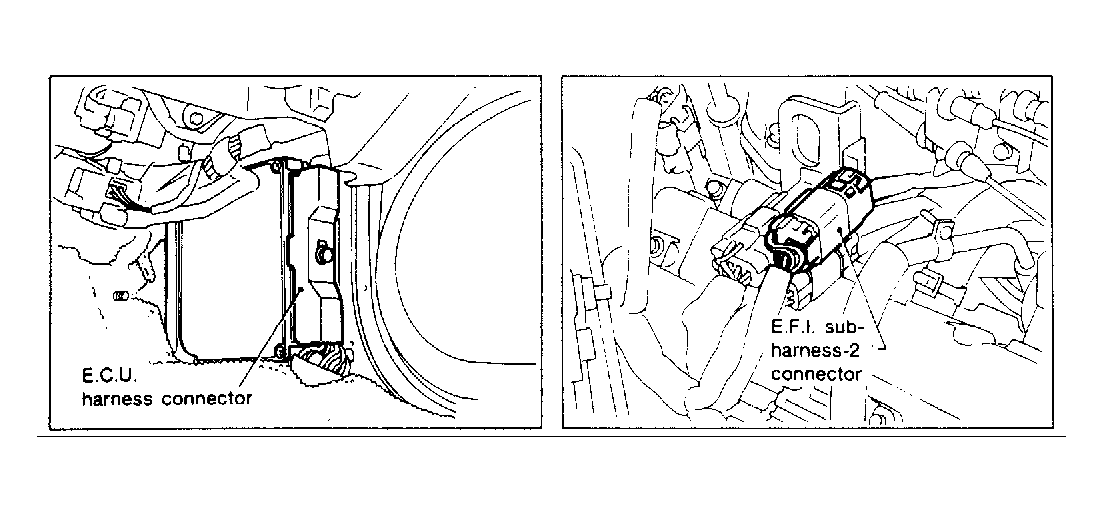

Fig 2: Q45 Code 34: Component Harness Connector Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

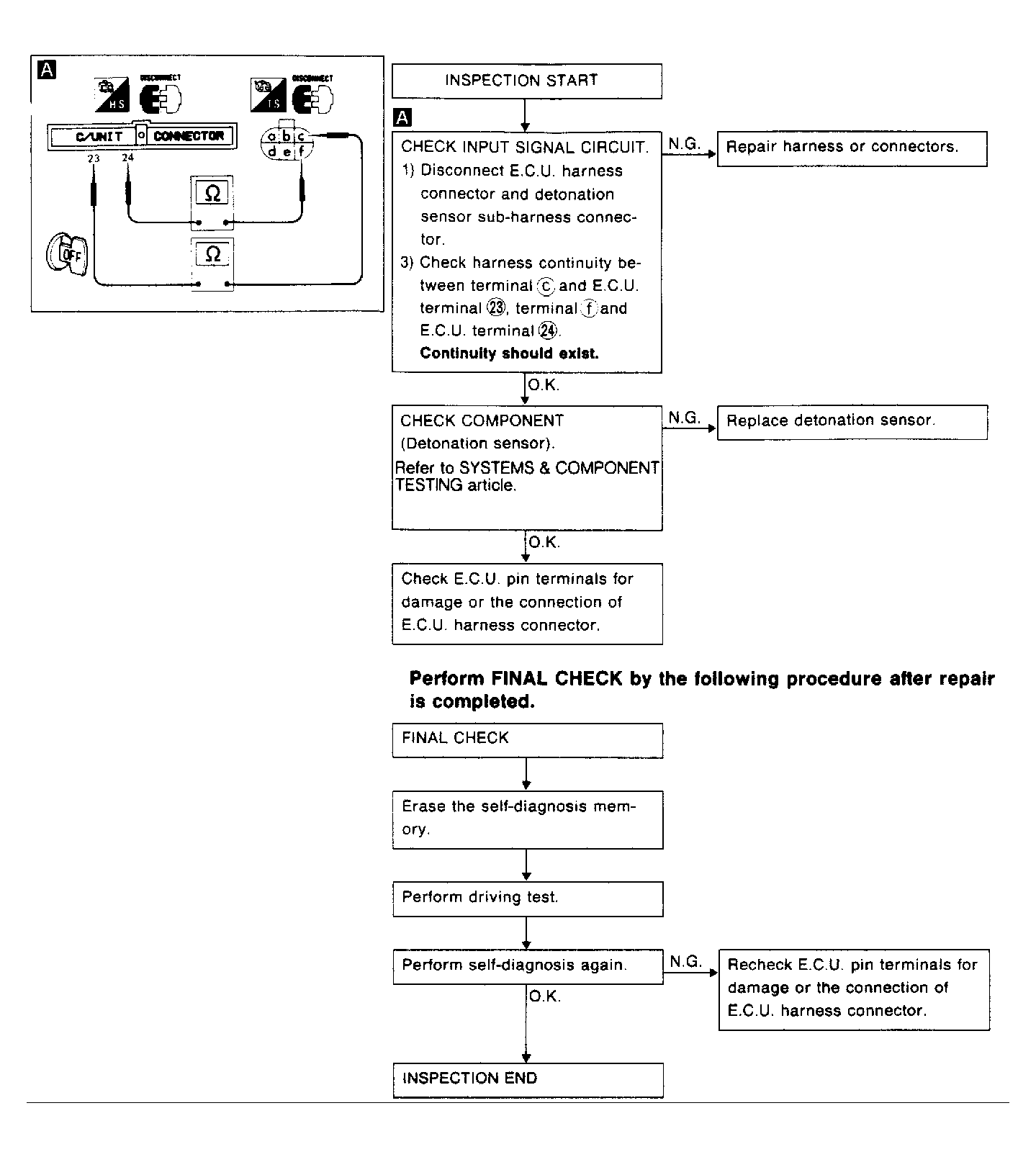

Fig 3: Q45 Code 34: Knock Sensor Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
