Code 45: Injector Leak (Q45)

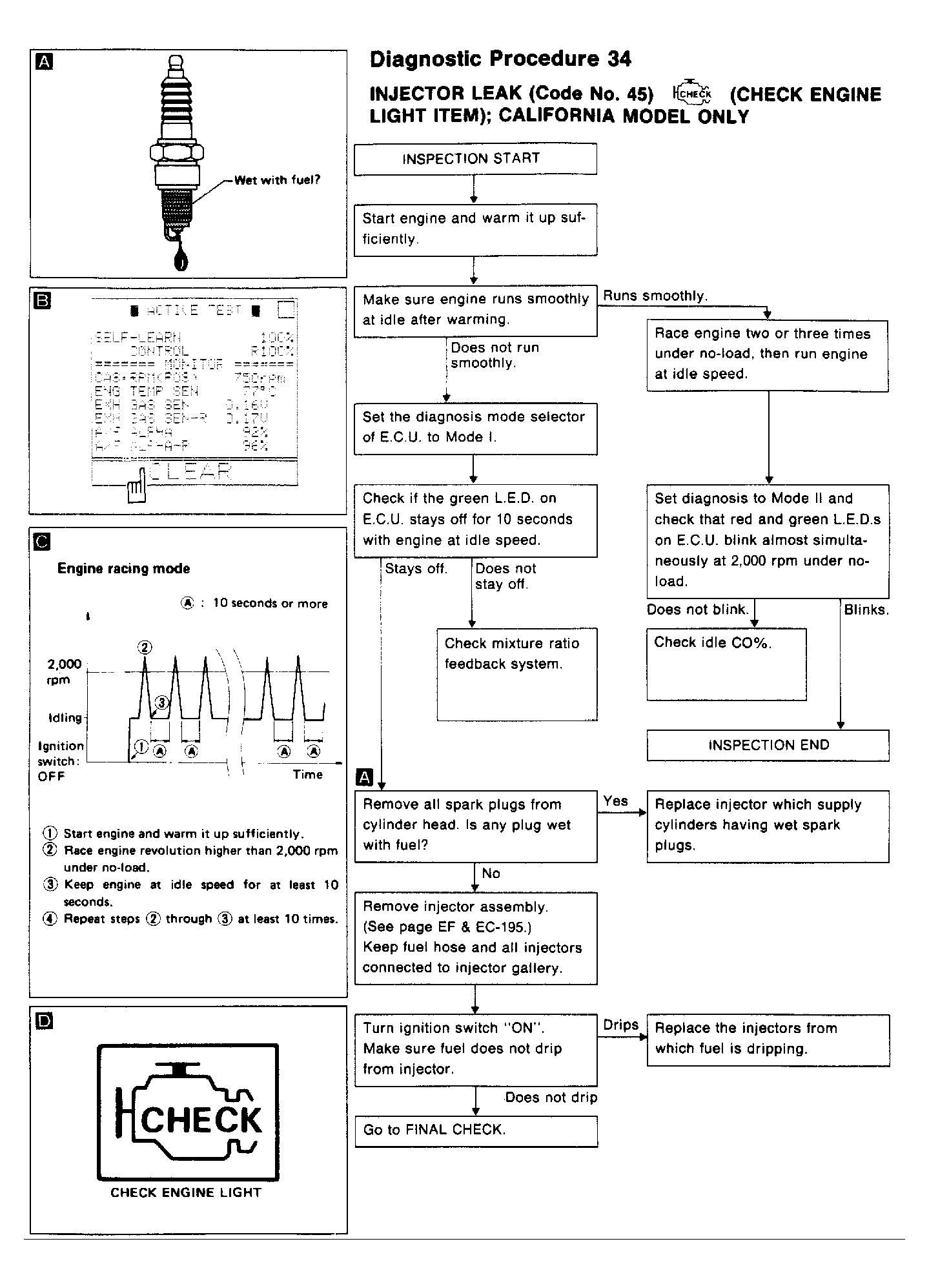

Fig 1: Q45 Code 45: Injector Leak Flow Chart (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

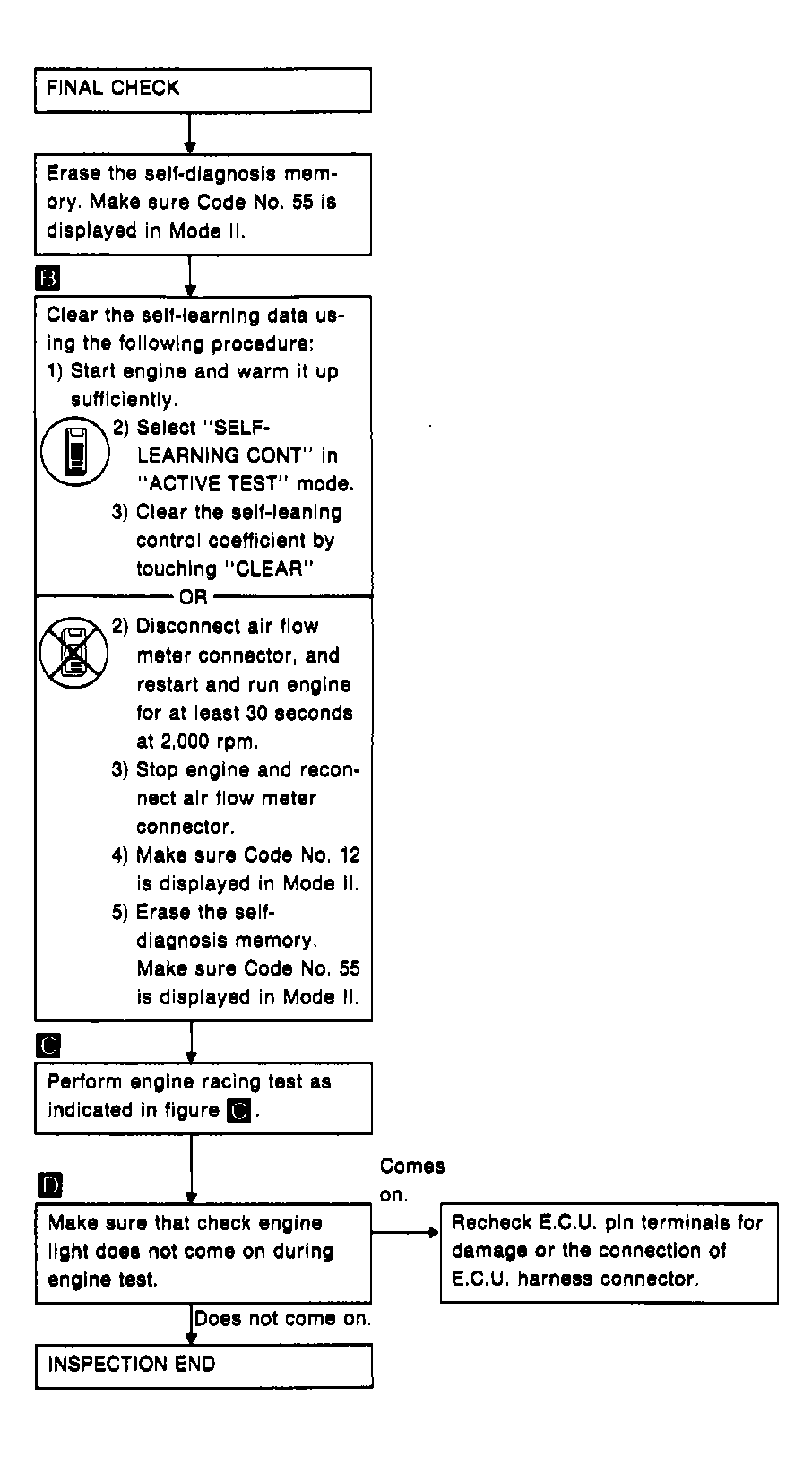

Fig 2: Q45 Code 45: Injector Leak Final Check Flow Chart (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
