Code 12: Airflow Meter
Code 12: Airflow Meter

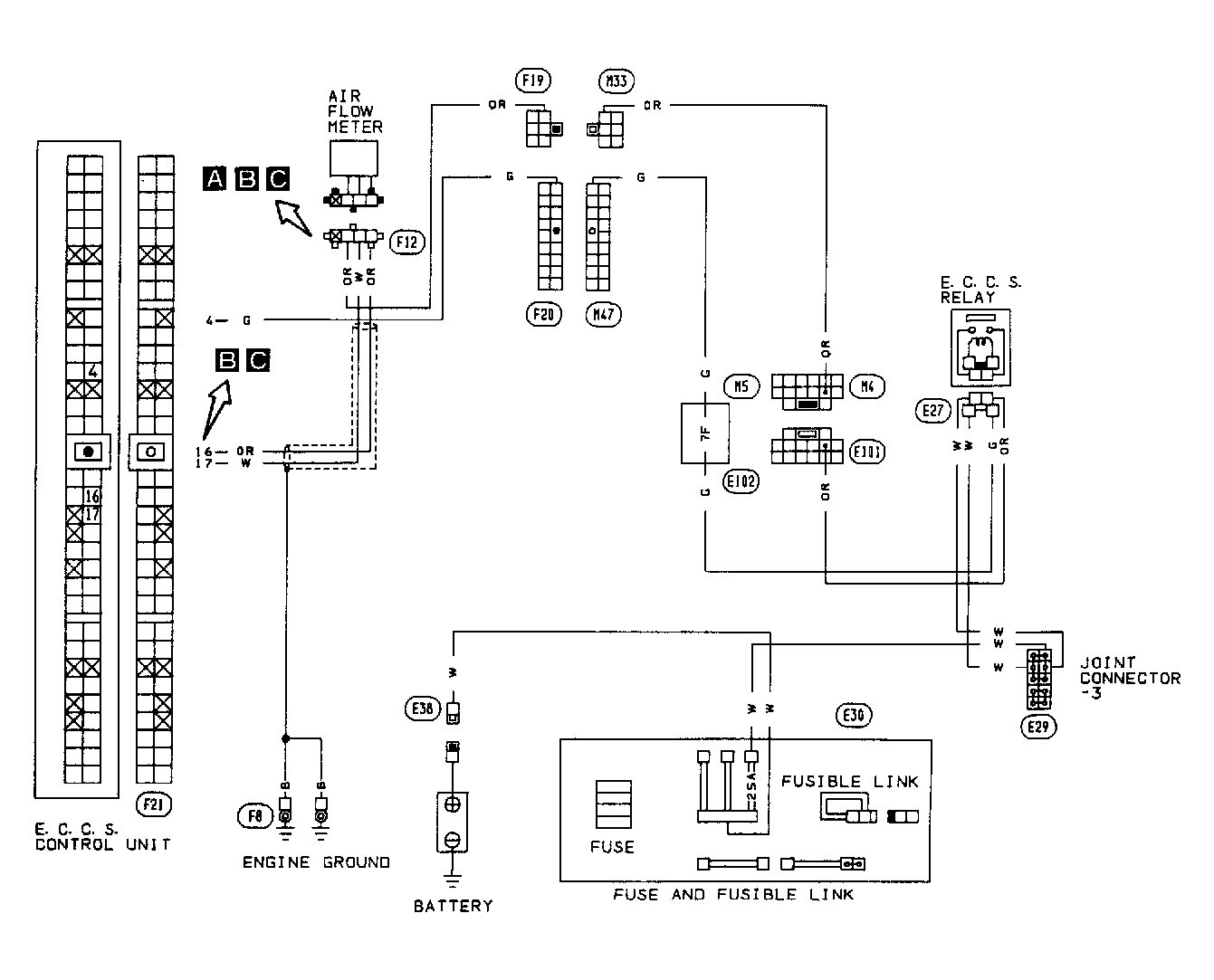

Fig 1: Code 12: Airflow Meter Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

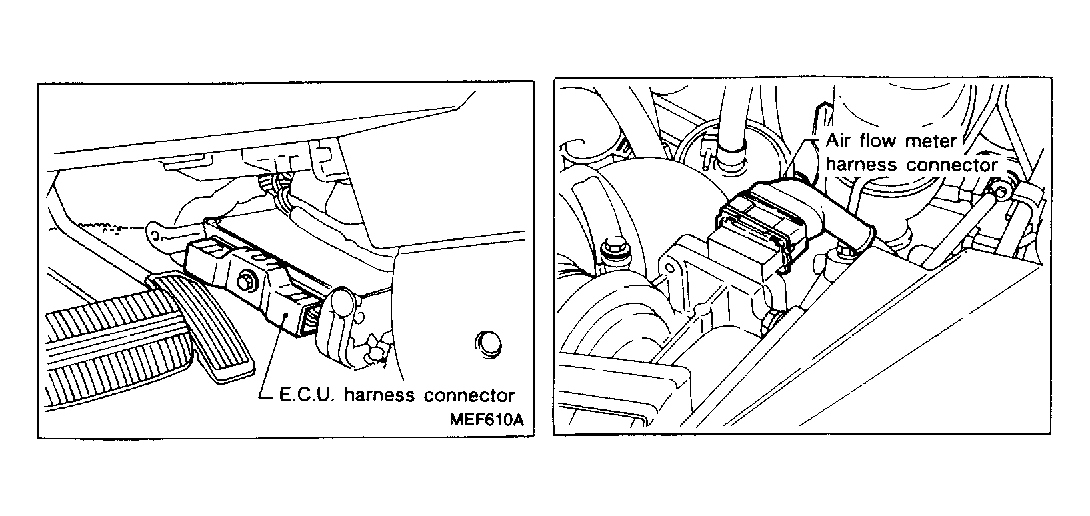

Fig 2: Code 12: Airflow Meter & ECU Harness Location
Courtesy of NISSAN MOTOR CO., U.S.A.

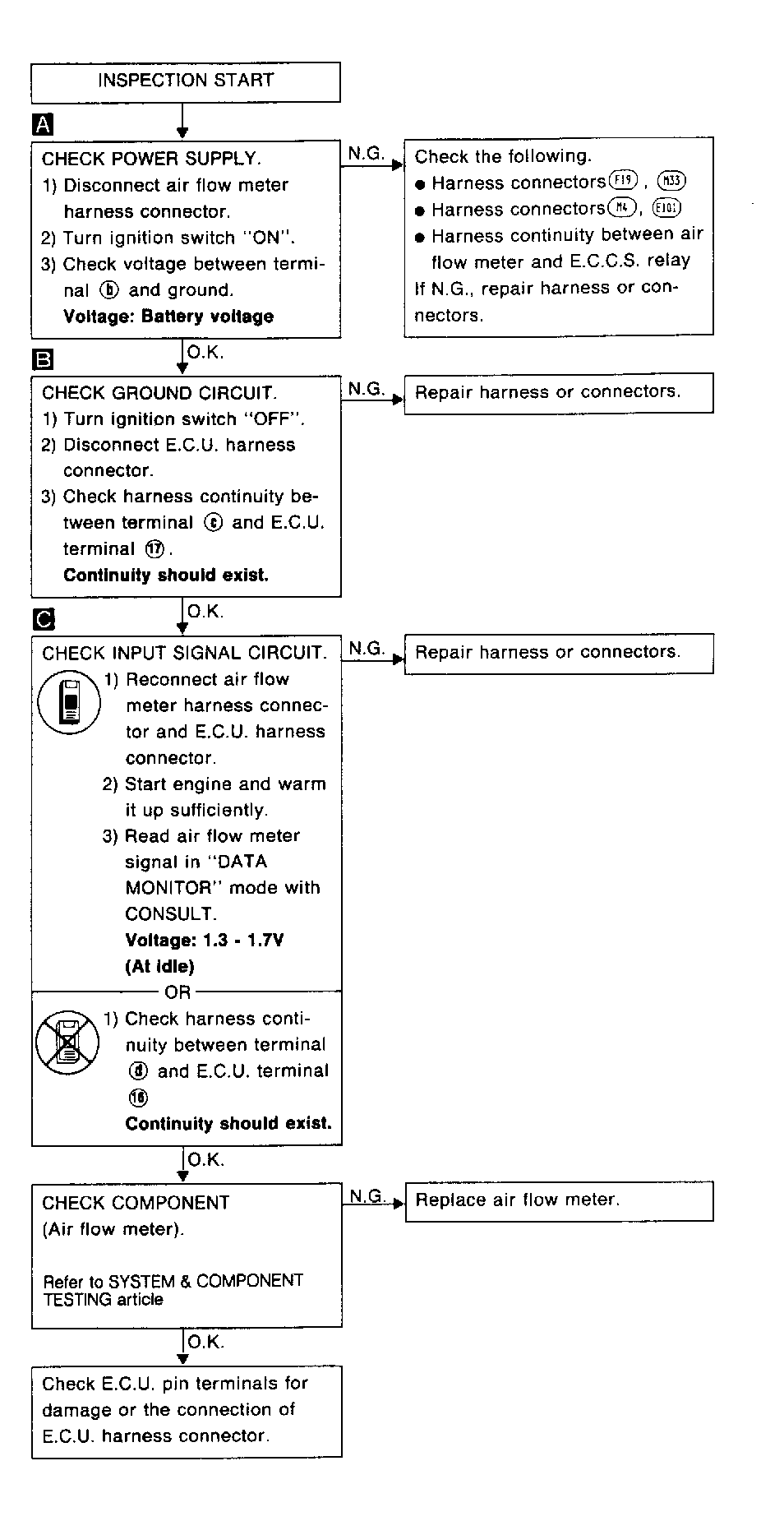

Fig 3: Code 12: Airflow Meter Flow Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

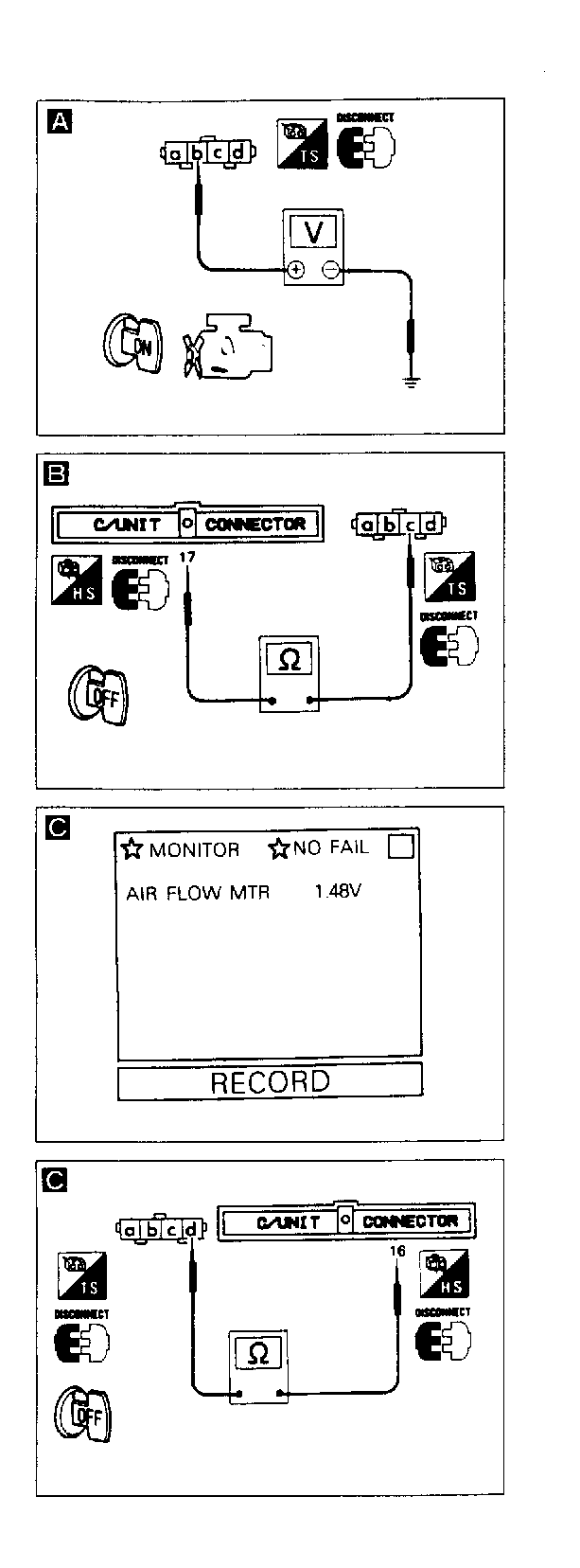

Fig 4: Code 12: Airflow Meter Flow Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
