Code 21: Ignition Signal Circuit

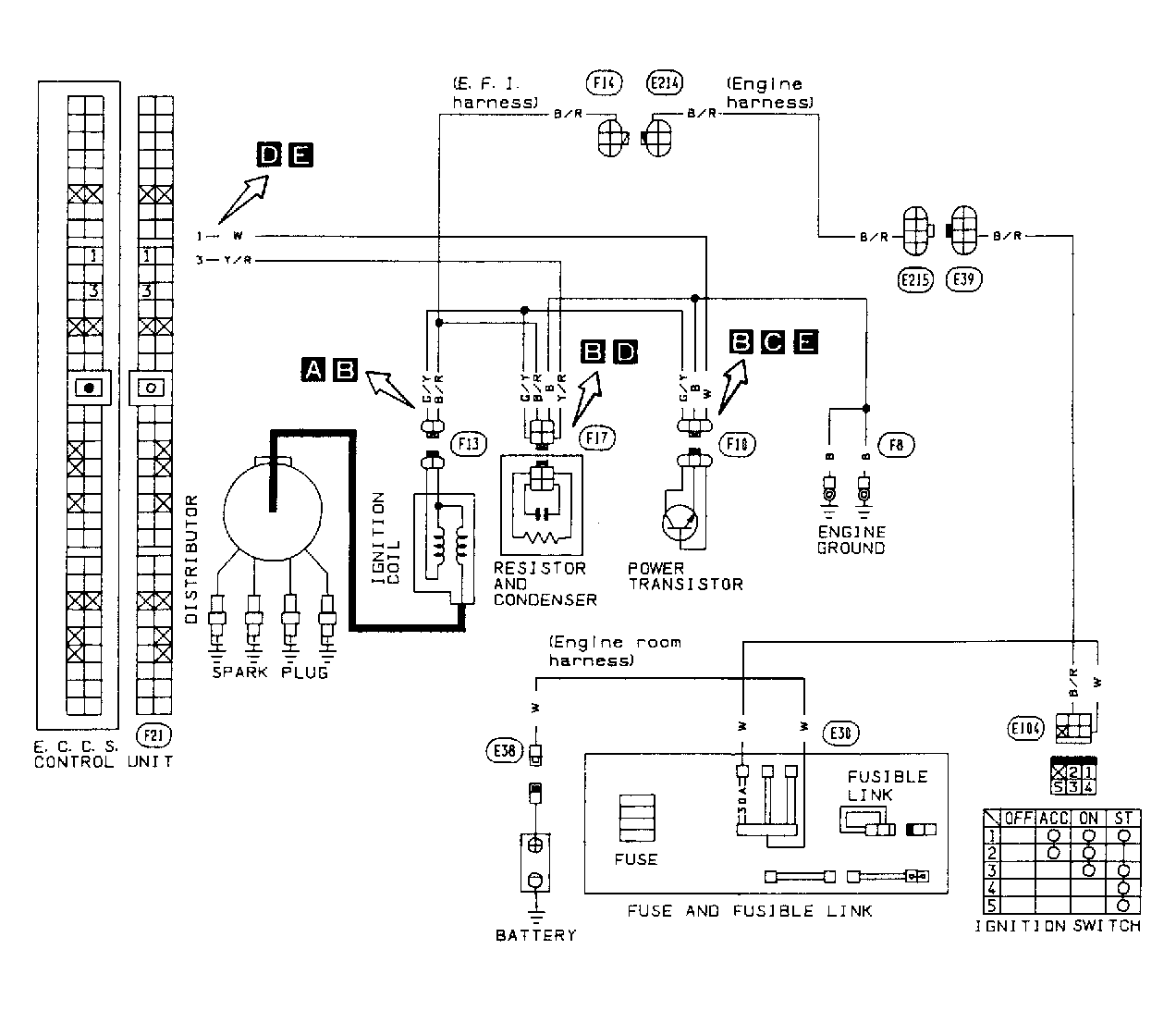

Fig 1: Code 21: Ignition Signal Ckt. Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

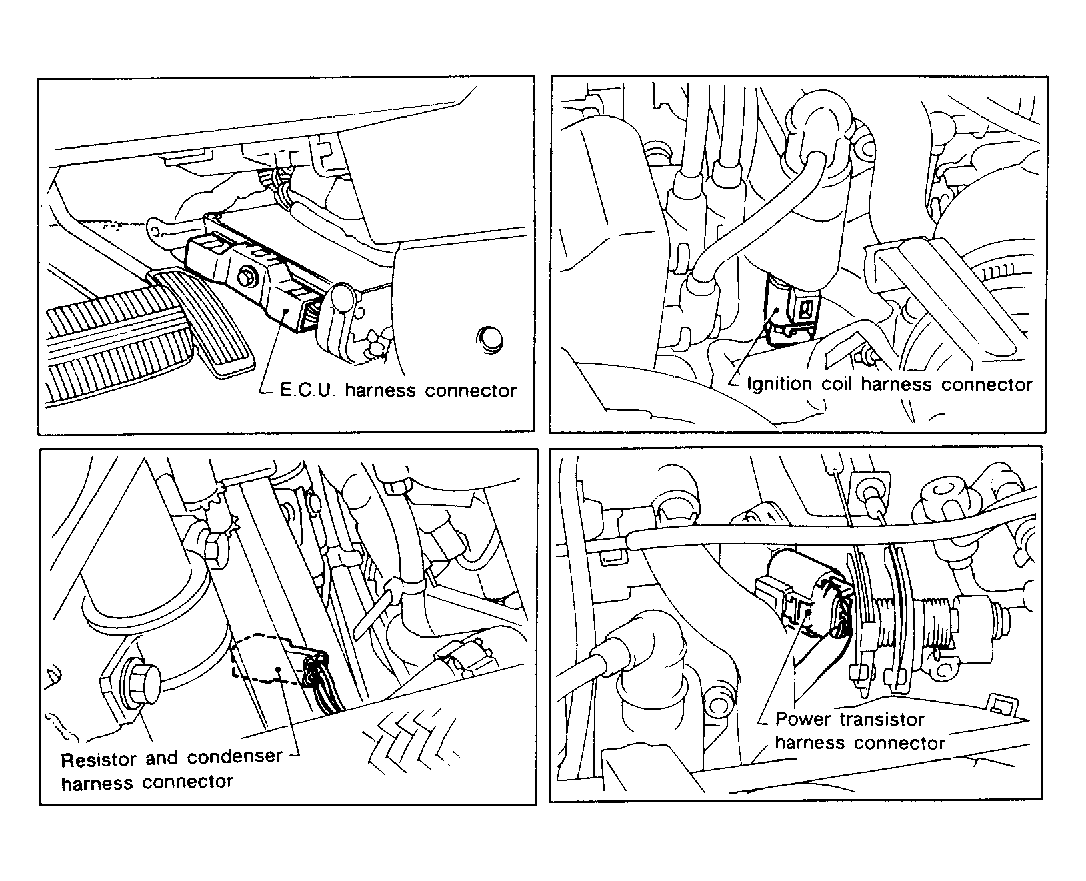

Fig 2: Code 21: Ignition Signal Ckt. ECU & Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

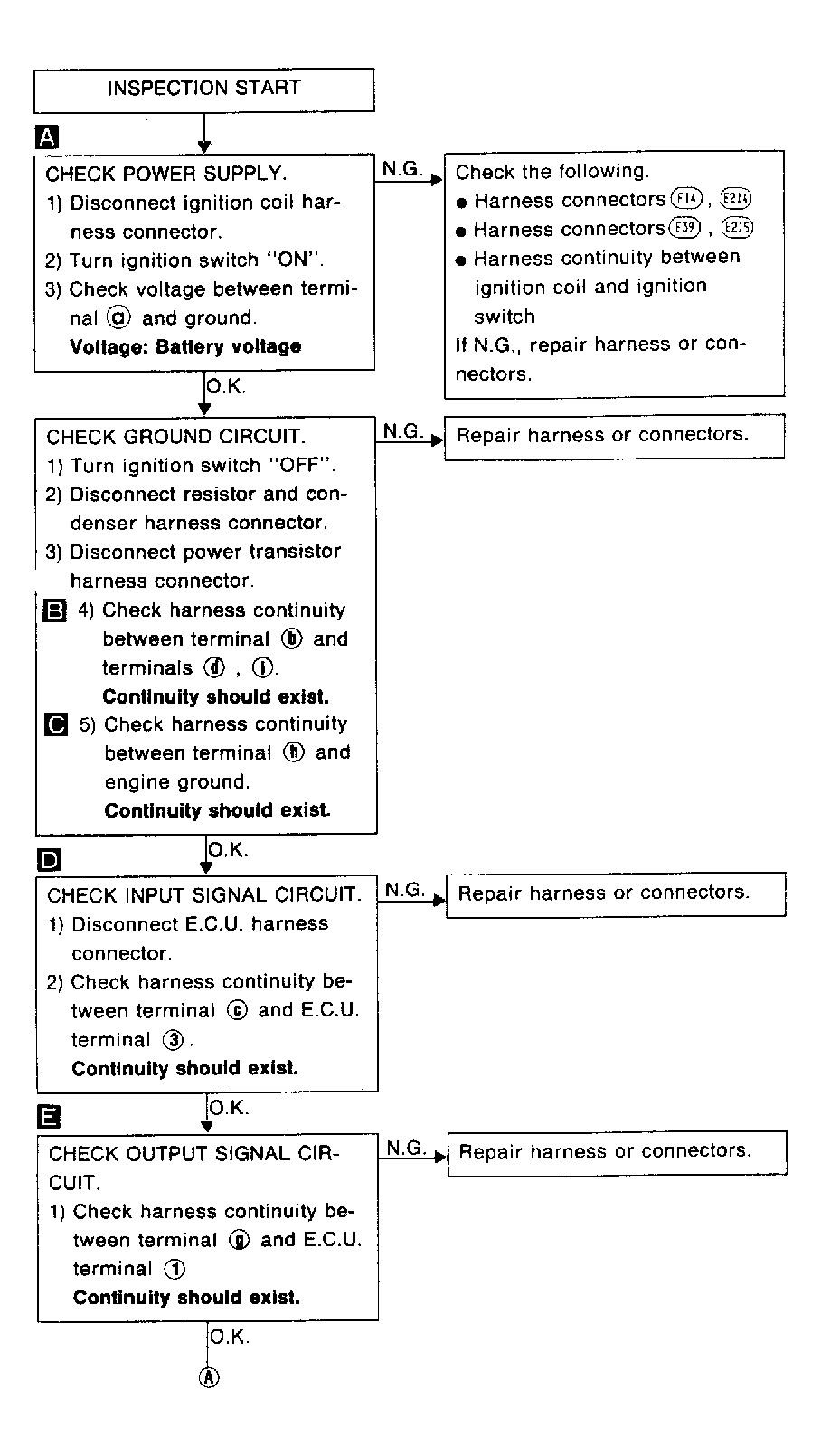

Fig 3: Code 21: Ignition Signal Ckt. Flow Chart (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

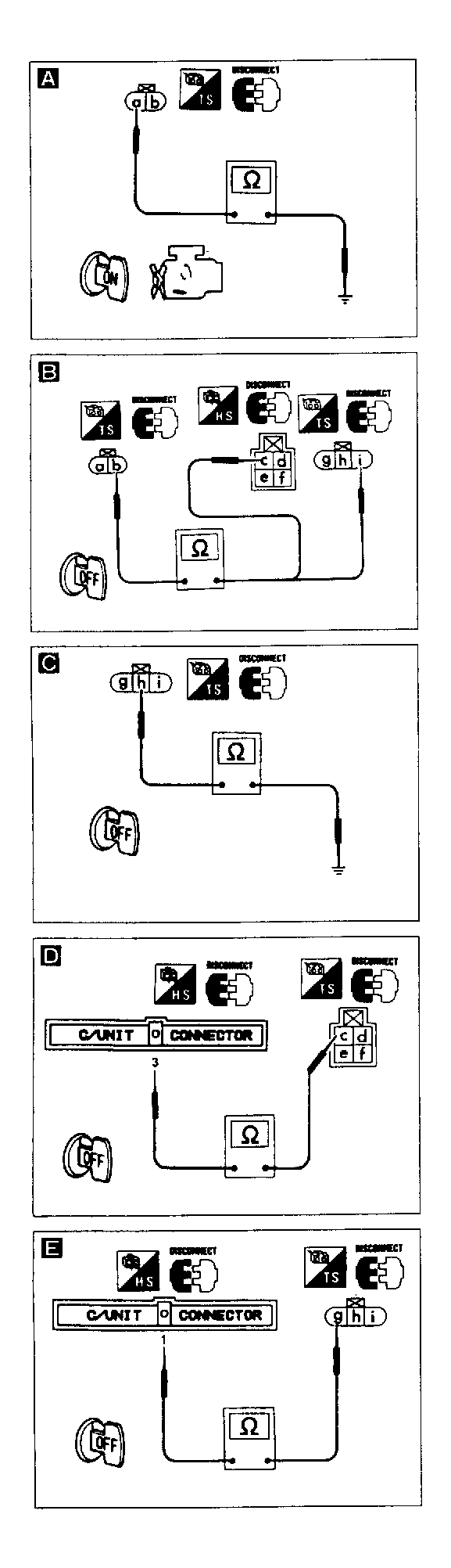

Fig 4: Code 21: Ignition Signal Ckt. Flow Chart (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

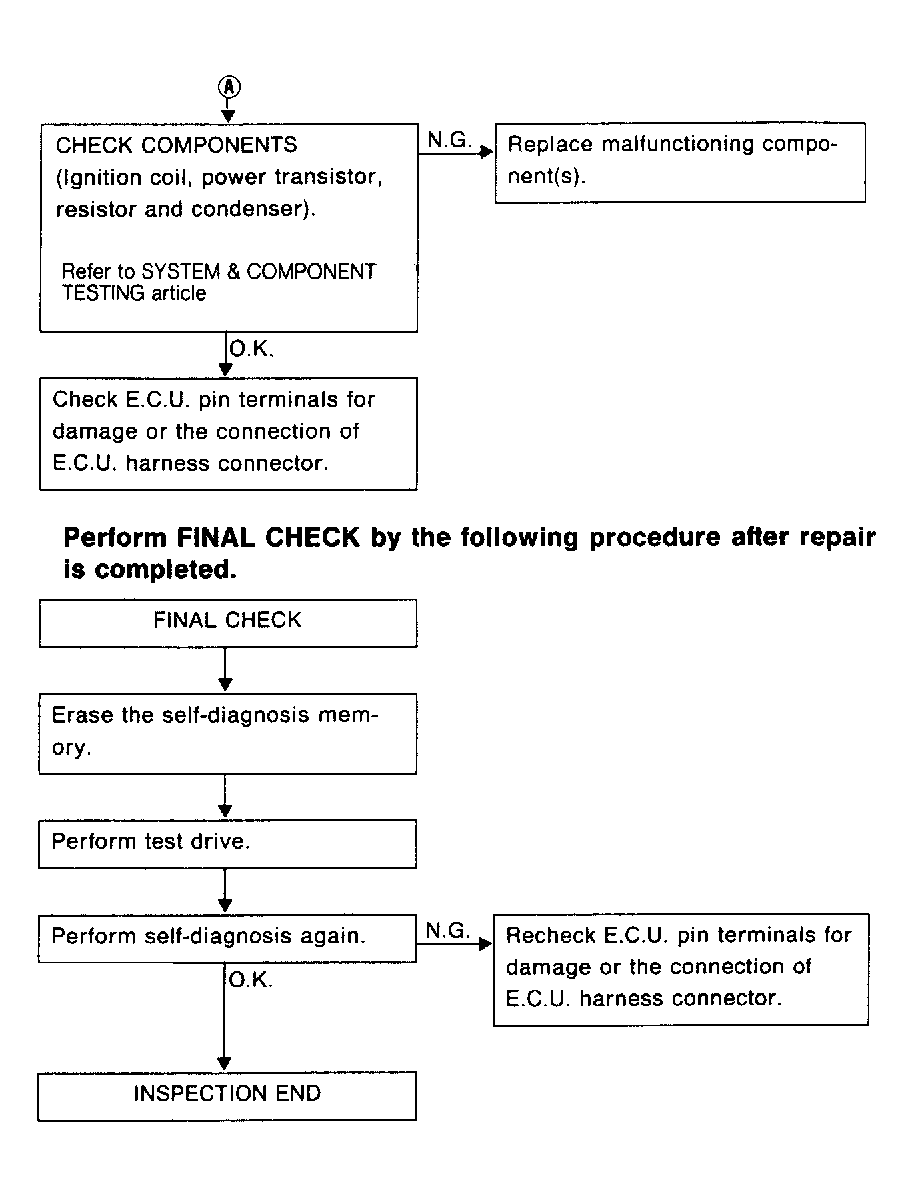

Fig 5: Code 21: Ignition Signal Ckt. Flow Chart (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
