Code 45: Injector Leak

Fig 1: Code 45: Injector Leak - Spark Plug Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

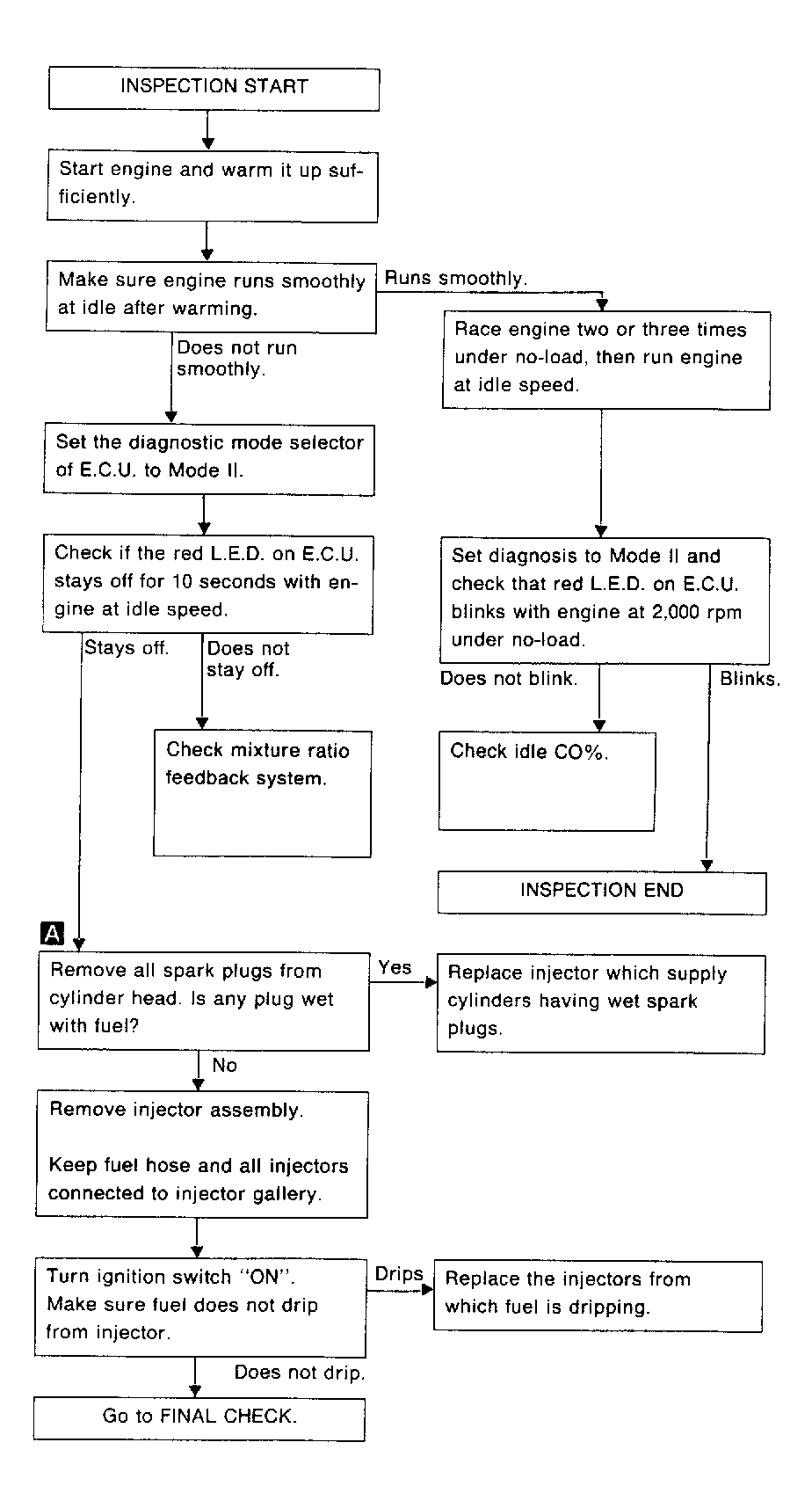

Fig 2: Code 45: Injector Leak Flow Chart (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

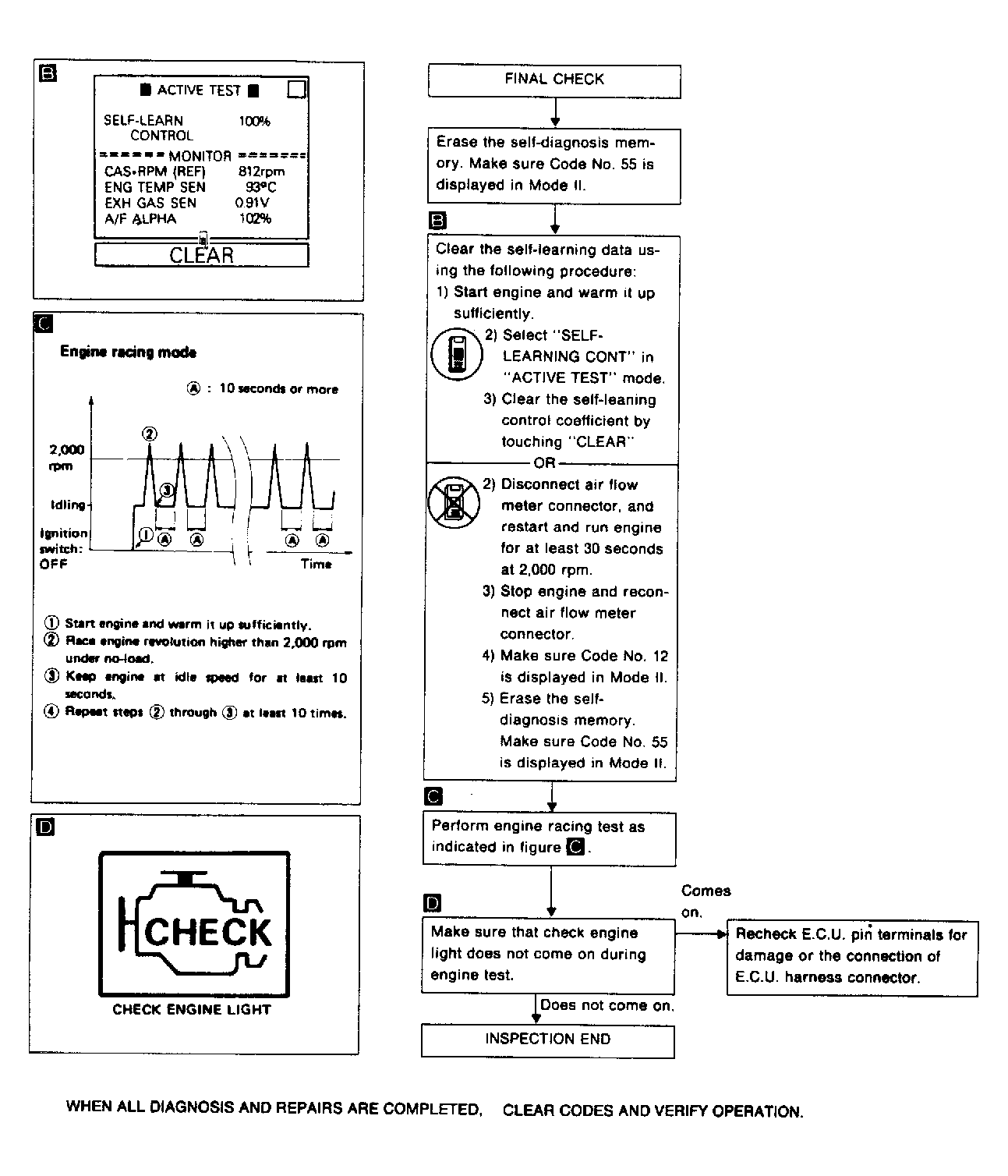

Fig 3: Code 45: Injector Leak Flow Chart (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
