Code 14: Vehicle Speed Sensor

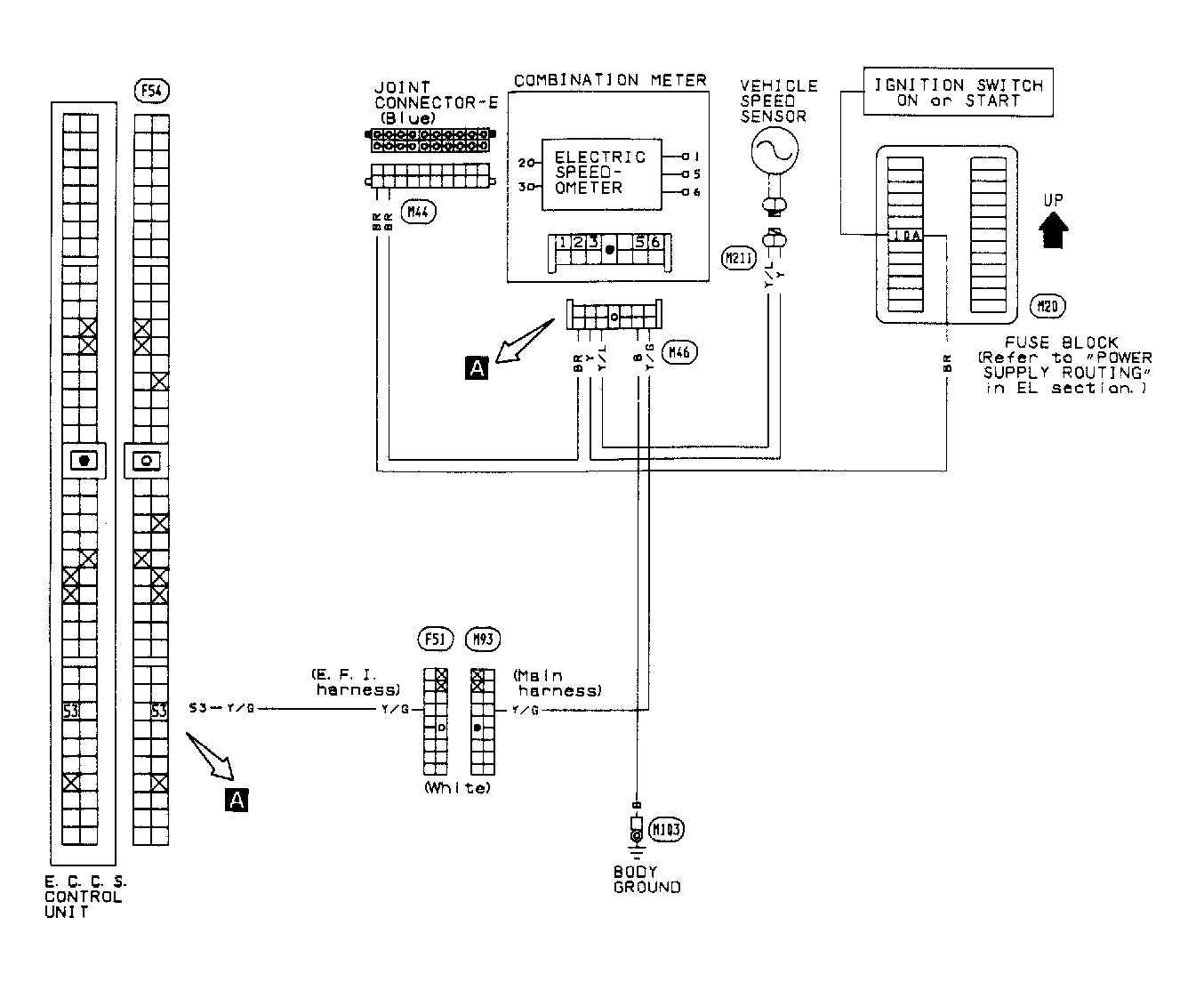

Fig 1: Code 14: Vehicle Speed Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 14: Vehicle Speed Sensor & ECU Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

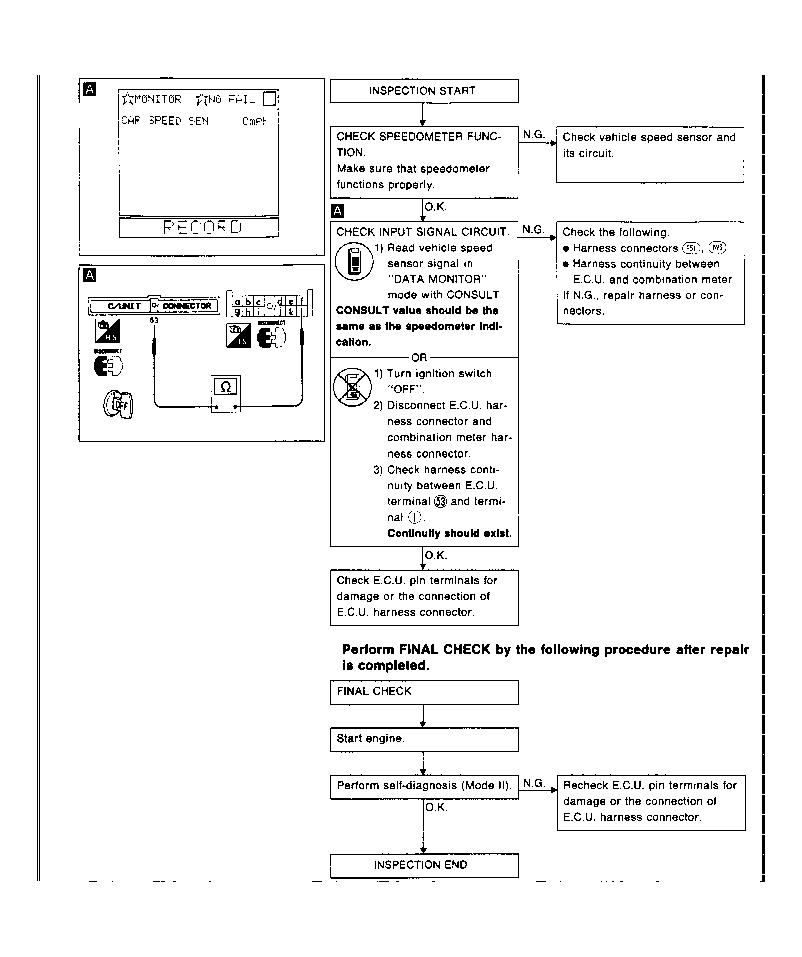

Fig 3: Code 14: Vehicle Speed Sensor Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
