Code 21: Ignition Signal Circuit

Fig 1: Code 21: Ignition Signal Ckt. ECU Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

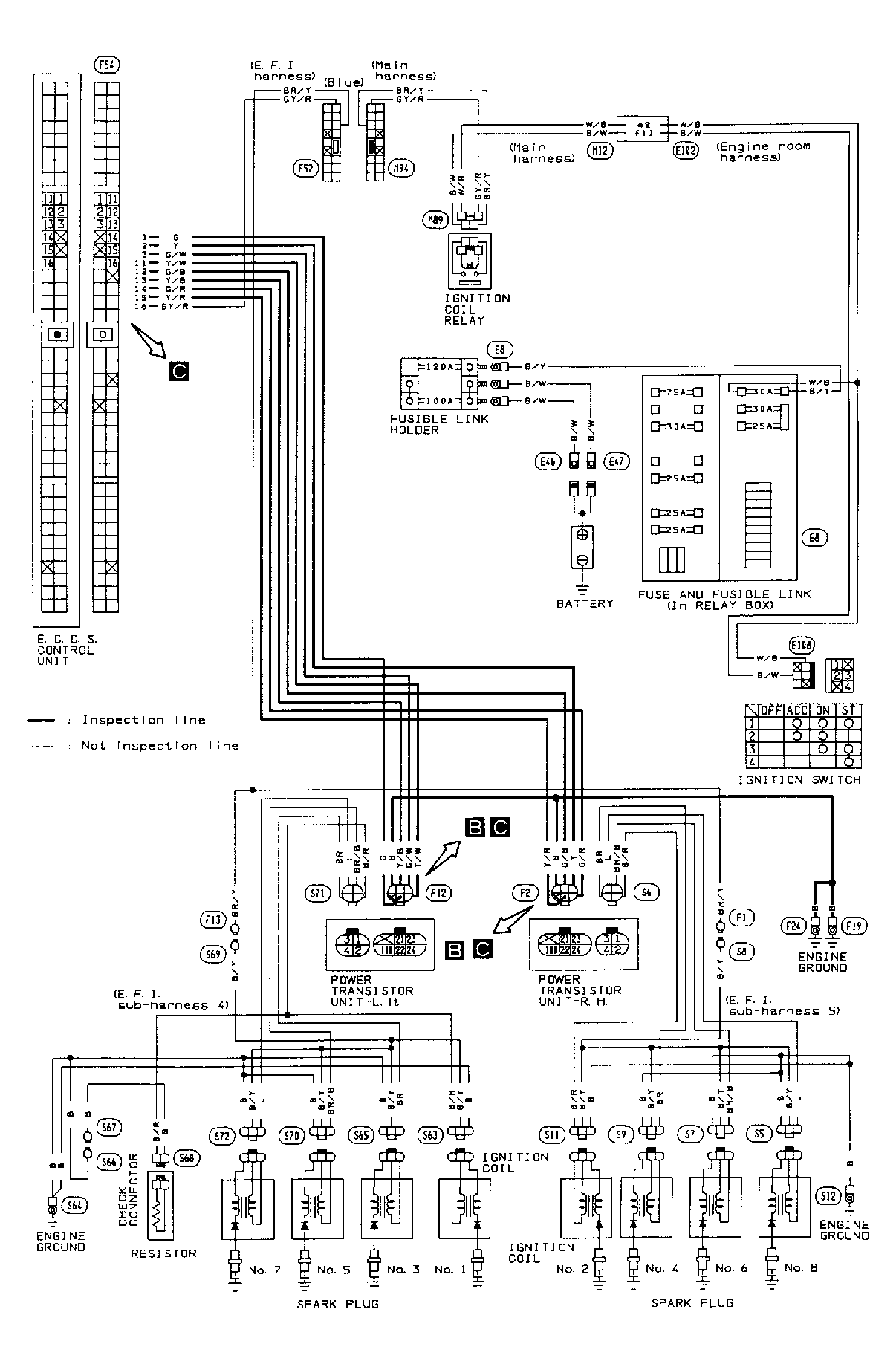

Fig 2: Code 21: Ignition Signal Ckt. Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

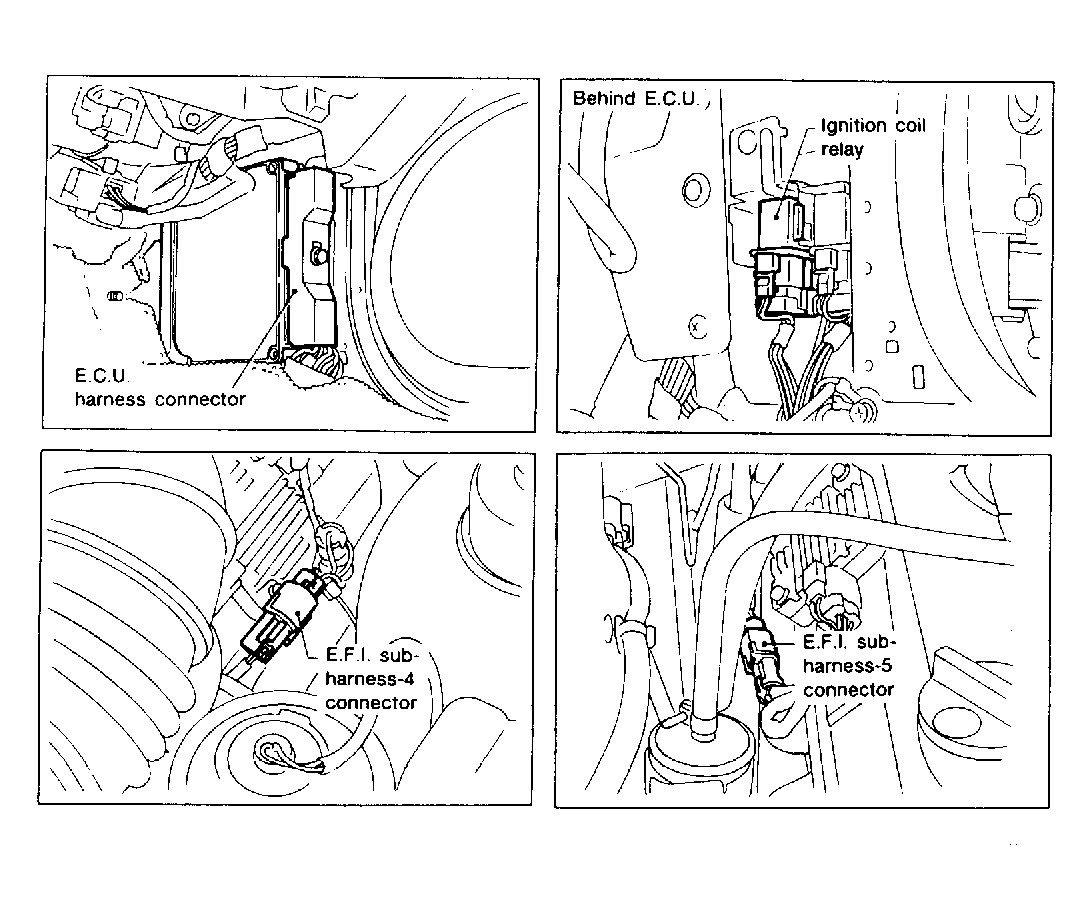

Fig 3: Code 21: Ignition Signal Ckt. Harness Location (1 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

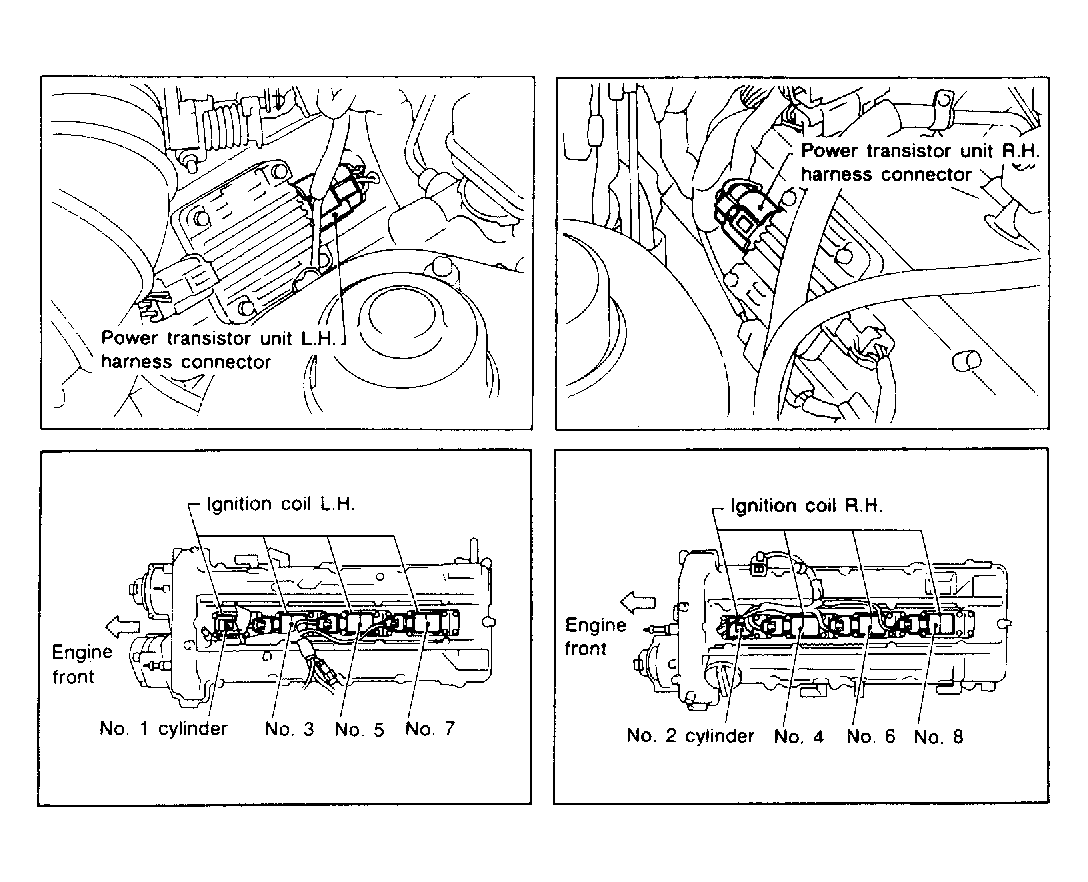

Fig 4: Code 21: Ignition Signal Ckt. Harness Location (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

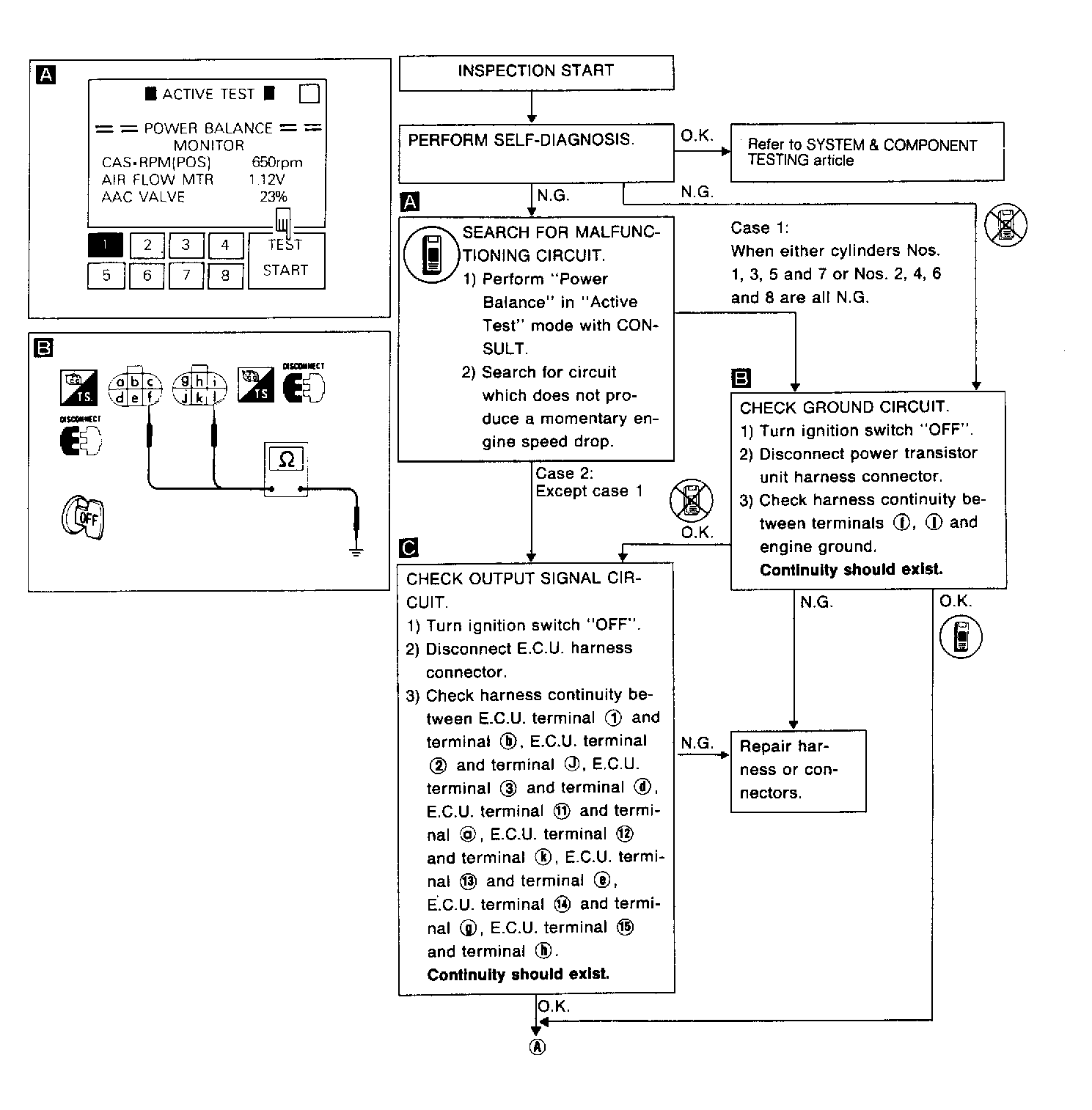

Fig 5: Code 21: Ignition Signal Ckt. Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
