Code 35: Exhaust Gas Temperature Sensor

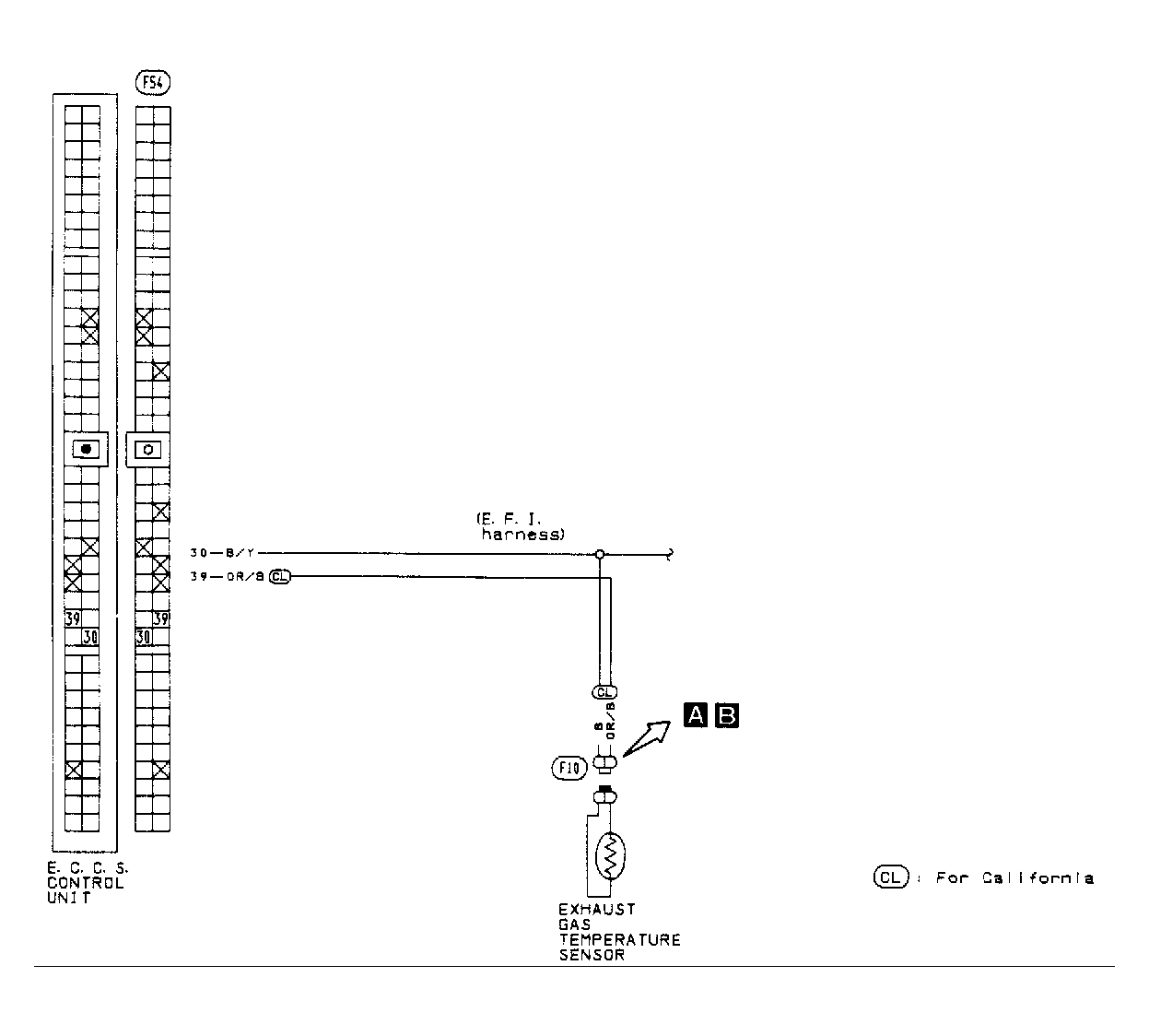

Fig 1: Code 35: Exhaust Gas Temp. Sensor Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

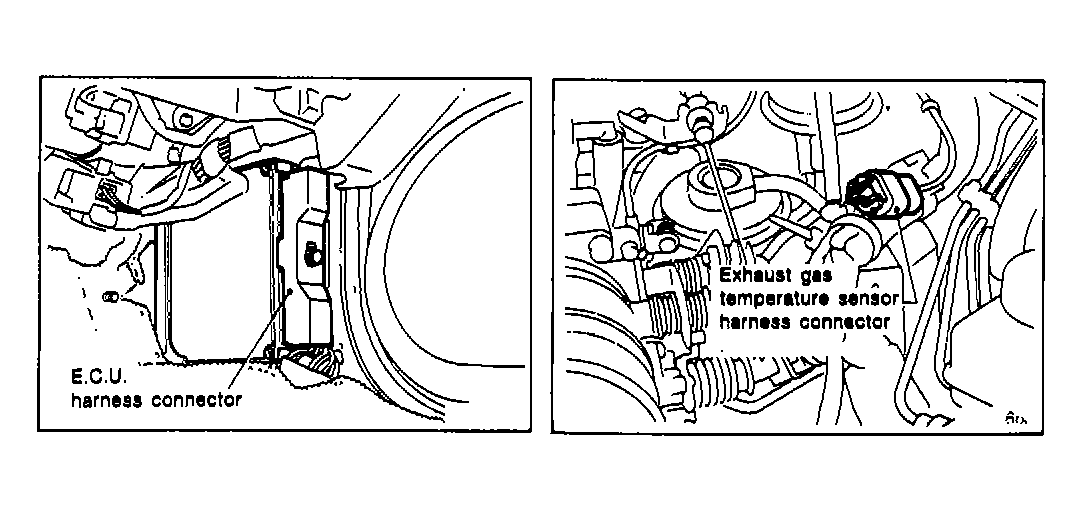

Fig 2: Code 35: Exhaust Gas Temp. Sensor & ECU Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

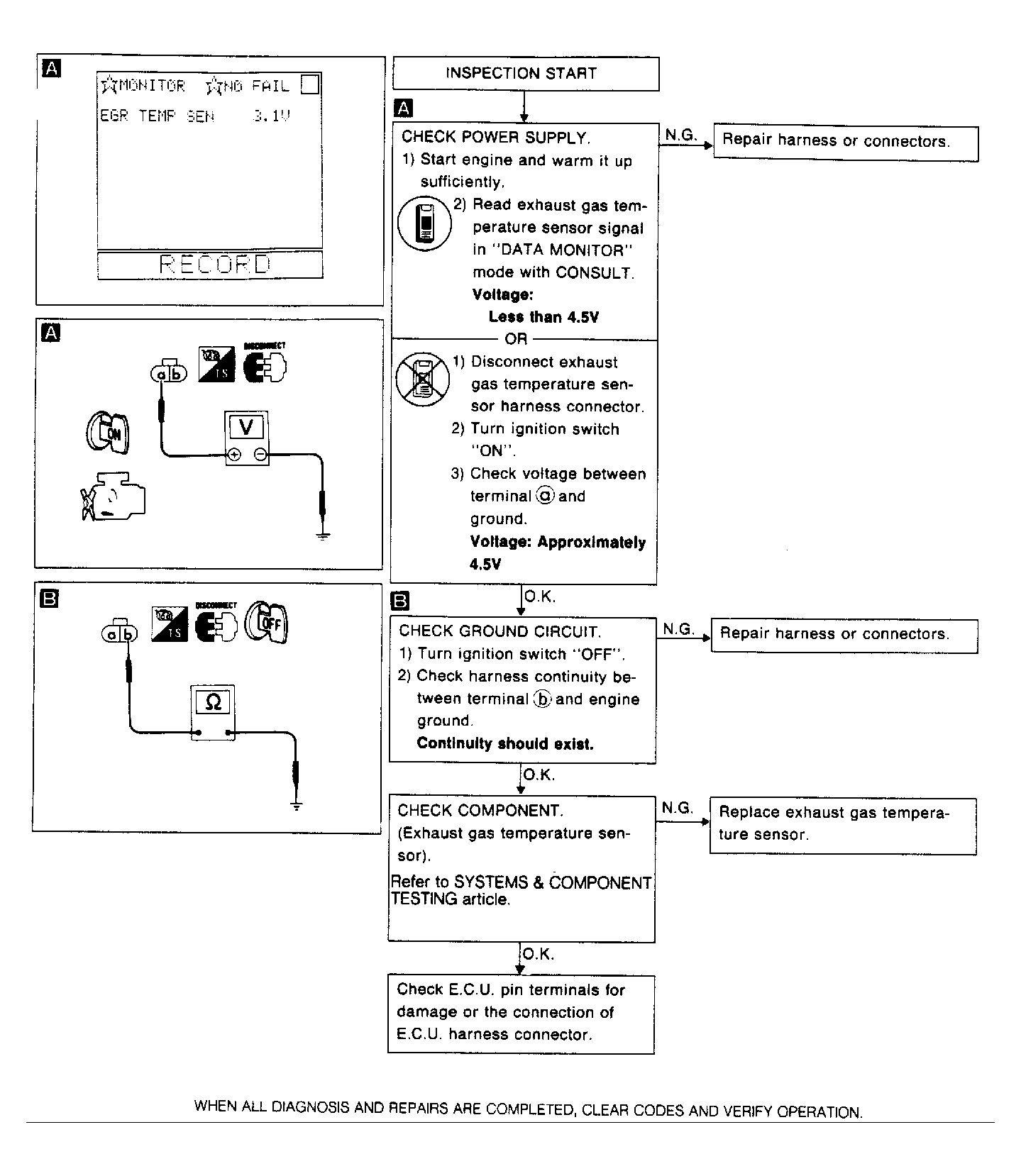

Fig 3: Code 35: Exhaust Gas Temp. Sensor Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
