Code 45: Injector Leak
Code 45: Injector Leak

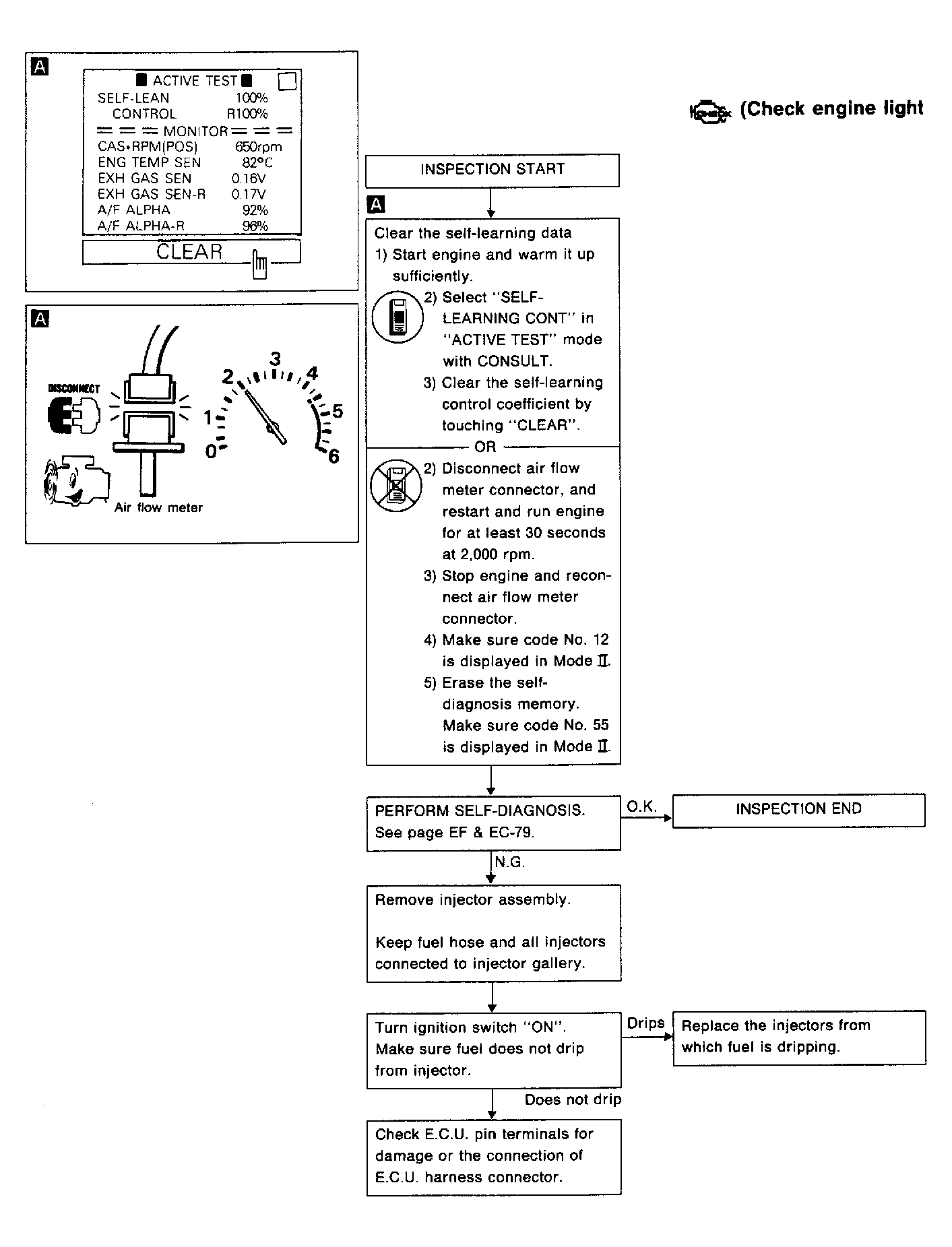

Fig 1: Code 45: Injector Leak Flow Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Code 45: Injector Leak Flow Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
