Code 54: Automatic Transmission Signal

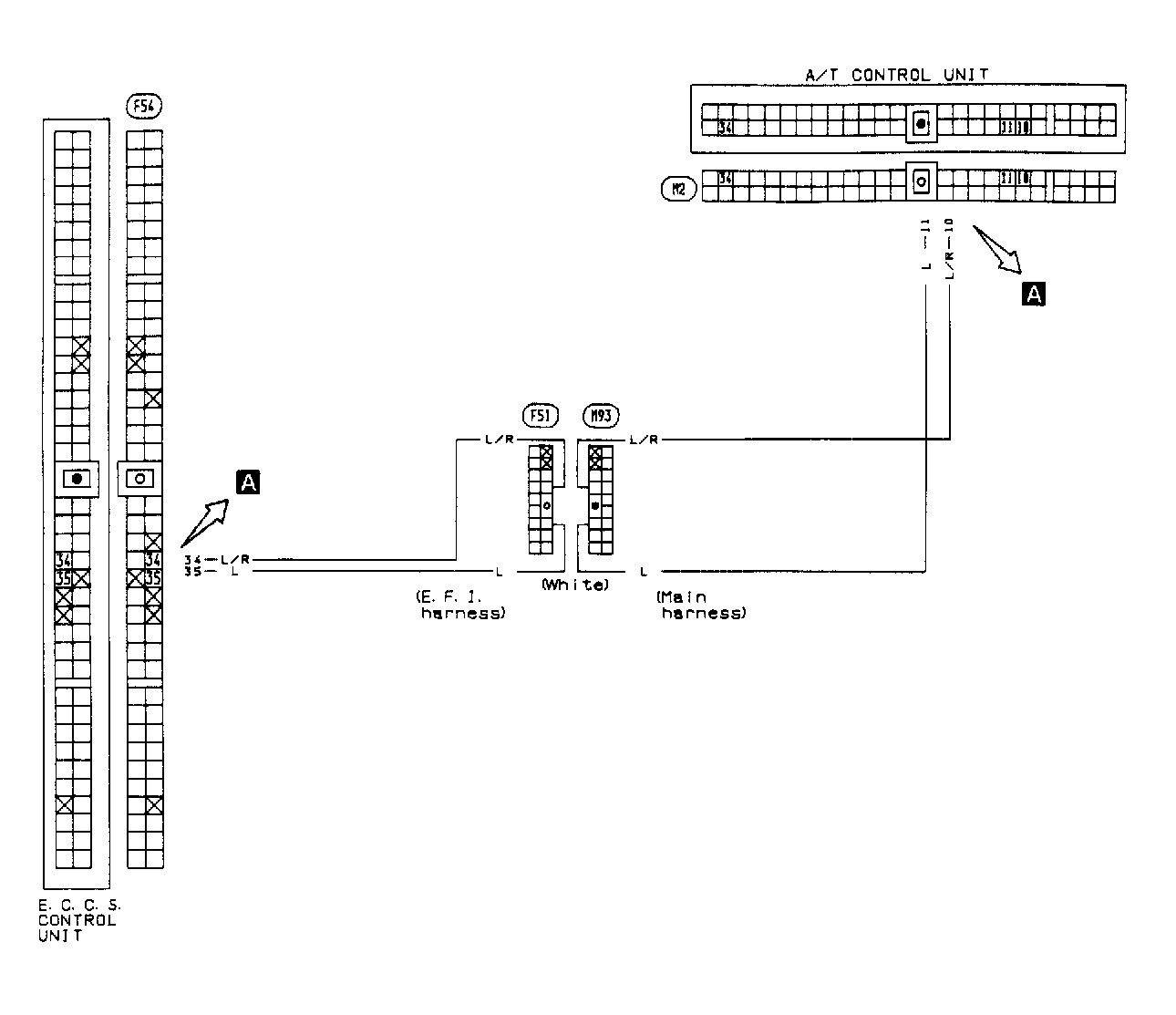

Fig 1: Code 54: Auto Trans. Signal Circuit Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

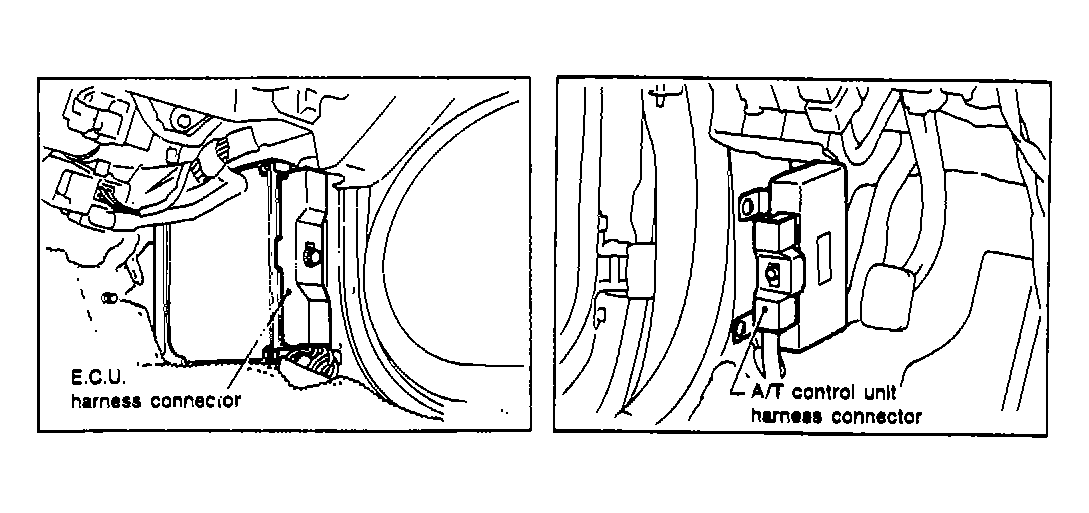

Fig 2: Code 54: Auto Trans. Signal & ECU Harness Location

Courtesy of NISSAN MOTOR CO., U.S.A.

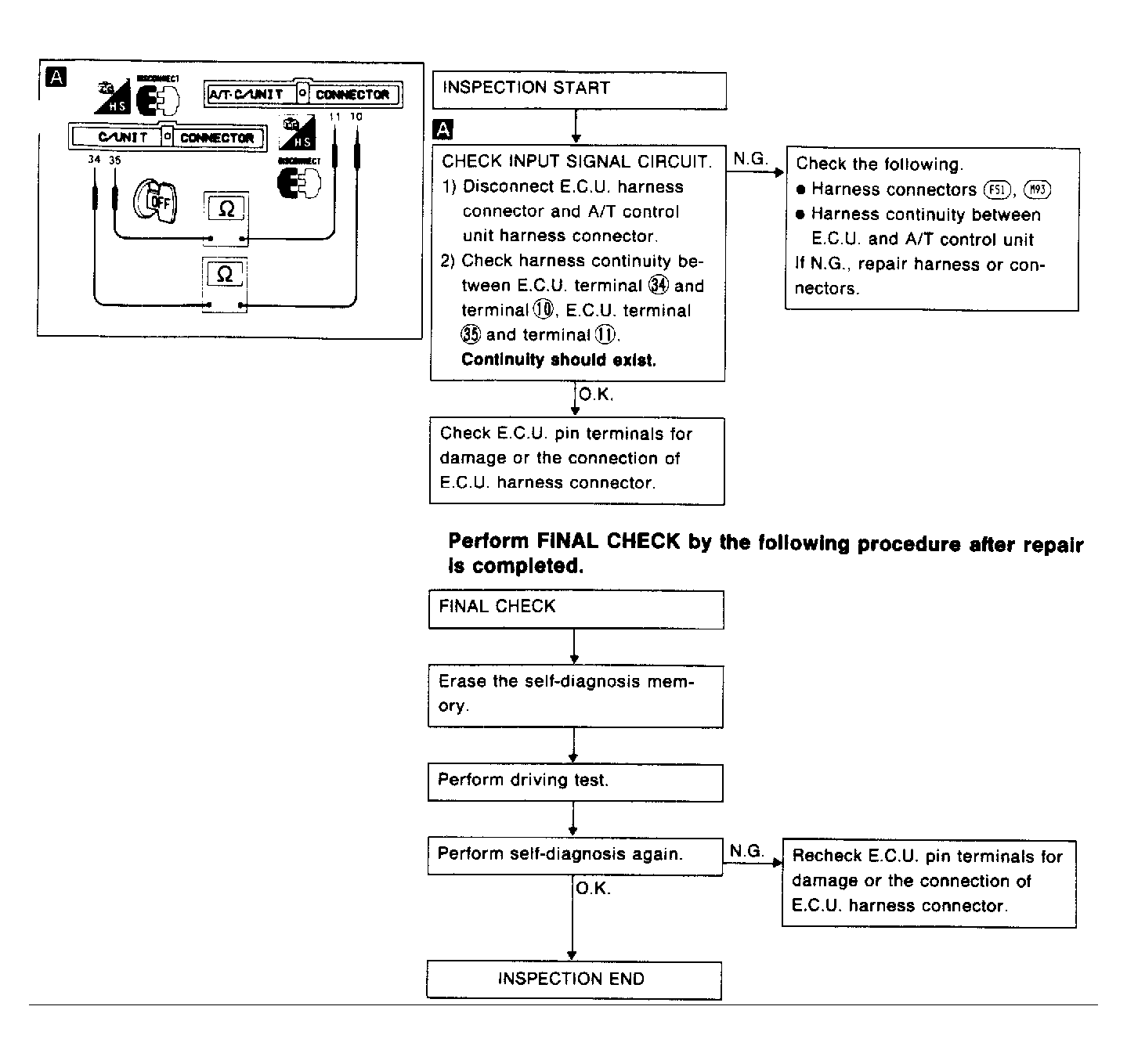

Fig 3: Code 54: Auto Trans. Signal Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
