DTC 32 - EGR System Function

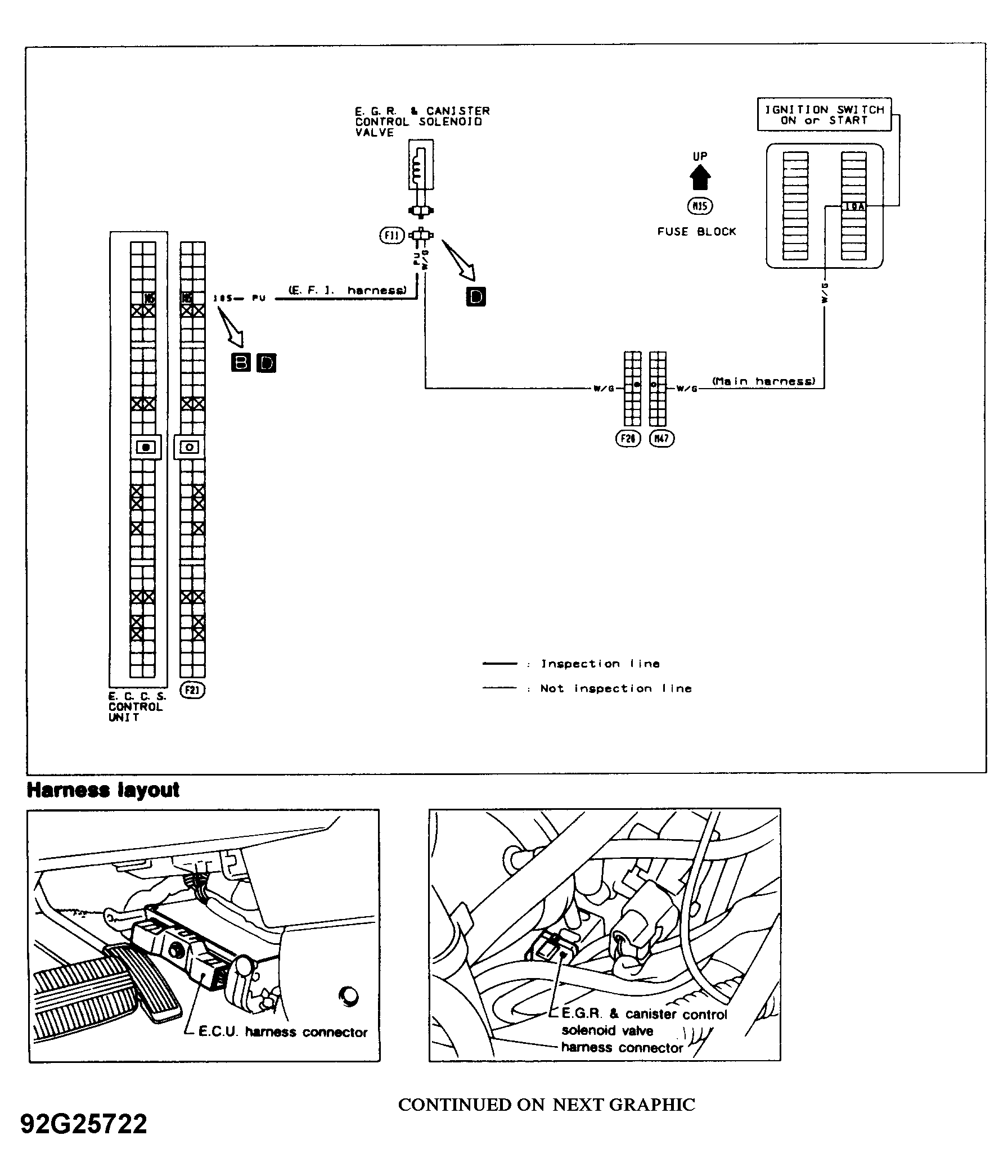

Fig 1: Code 32 Schematic - EGR System Function

Courtesy of NISSAN MOTOR CO., U.S.A.

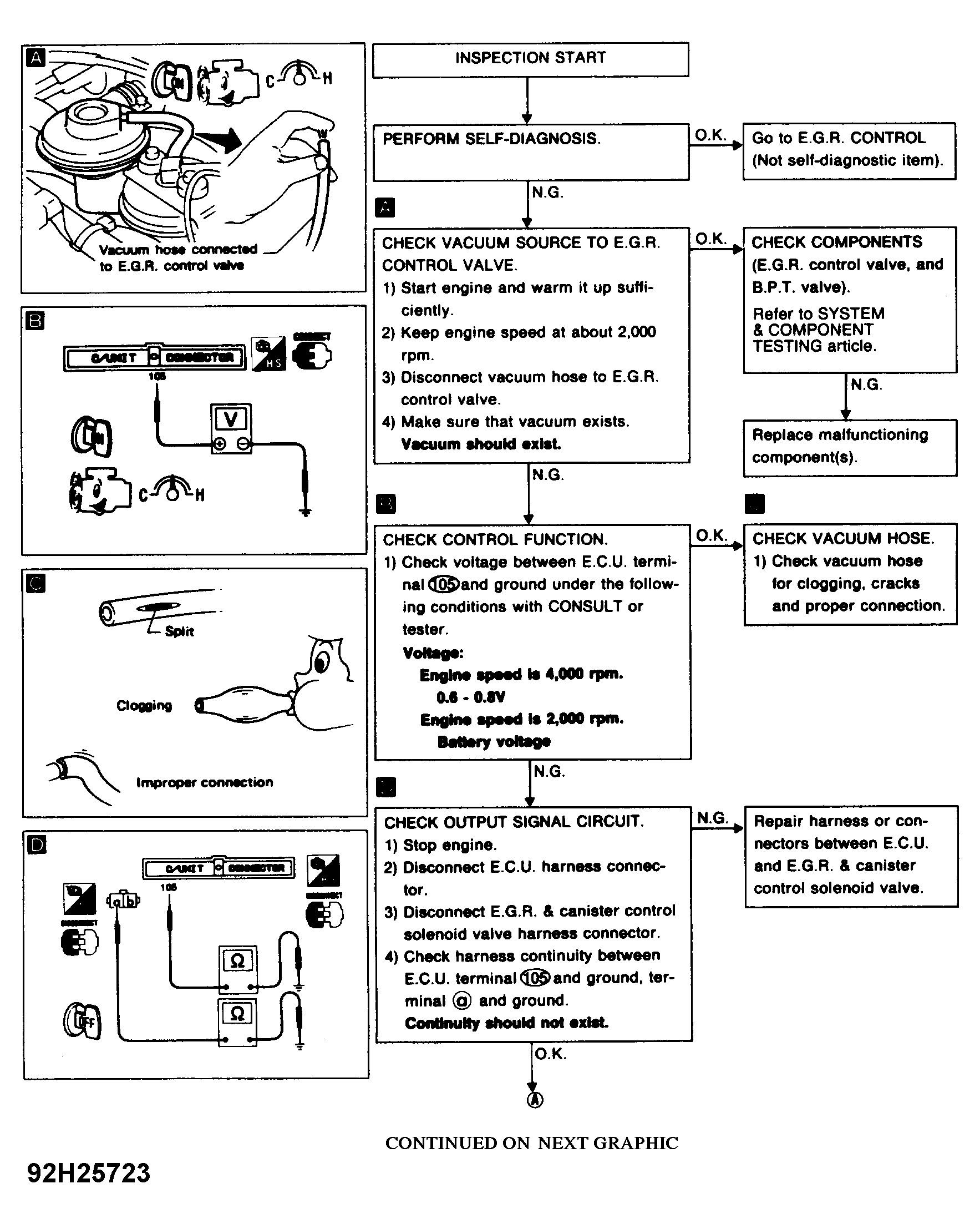

Fig 2: Code 32 Chart (1 of 2) - EGR System Function

Courtesy of NISSAN MOTOR CO., U.S.A.

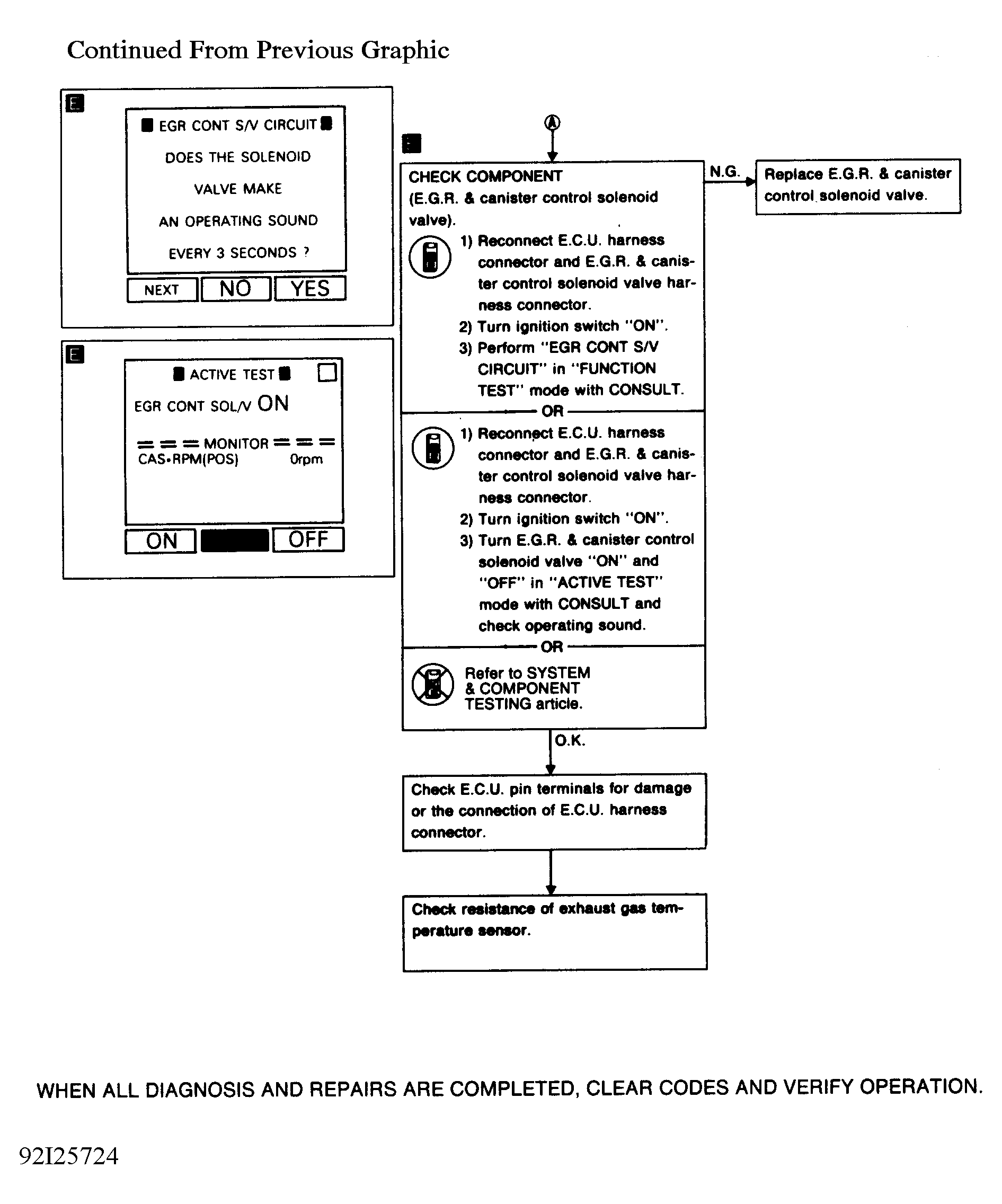

Fig 3: Code 32 Chart (2 of 2) - EGR System Function

Courtesy of NISSAN MOTOR CO., U.S.A.
