TCS Pump

TCS pump motor should operate when battery voltage is applied. Do not apply battery voltage for more than 5 seconds. See Fig 1 .

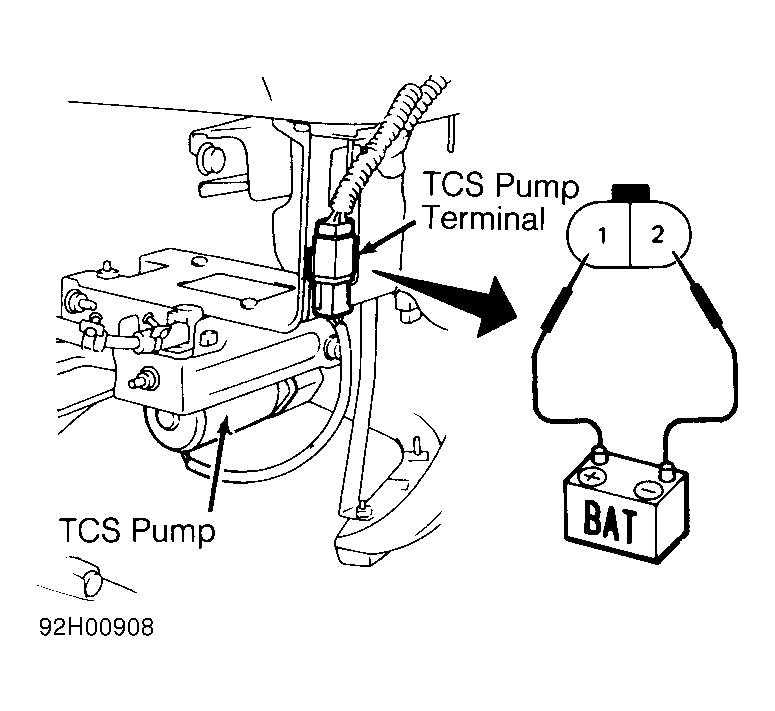

Fig 1: Locating TCS Pump & Terminal Identification

Courtesy of NISSAN MOTOR CO., U.S.A.
