DTC 43 - Throttle Position Sensor

Fig 1: Code 43 Schematic - Throttle Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Code 43 Connector Location - Throttle Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

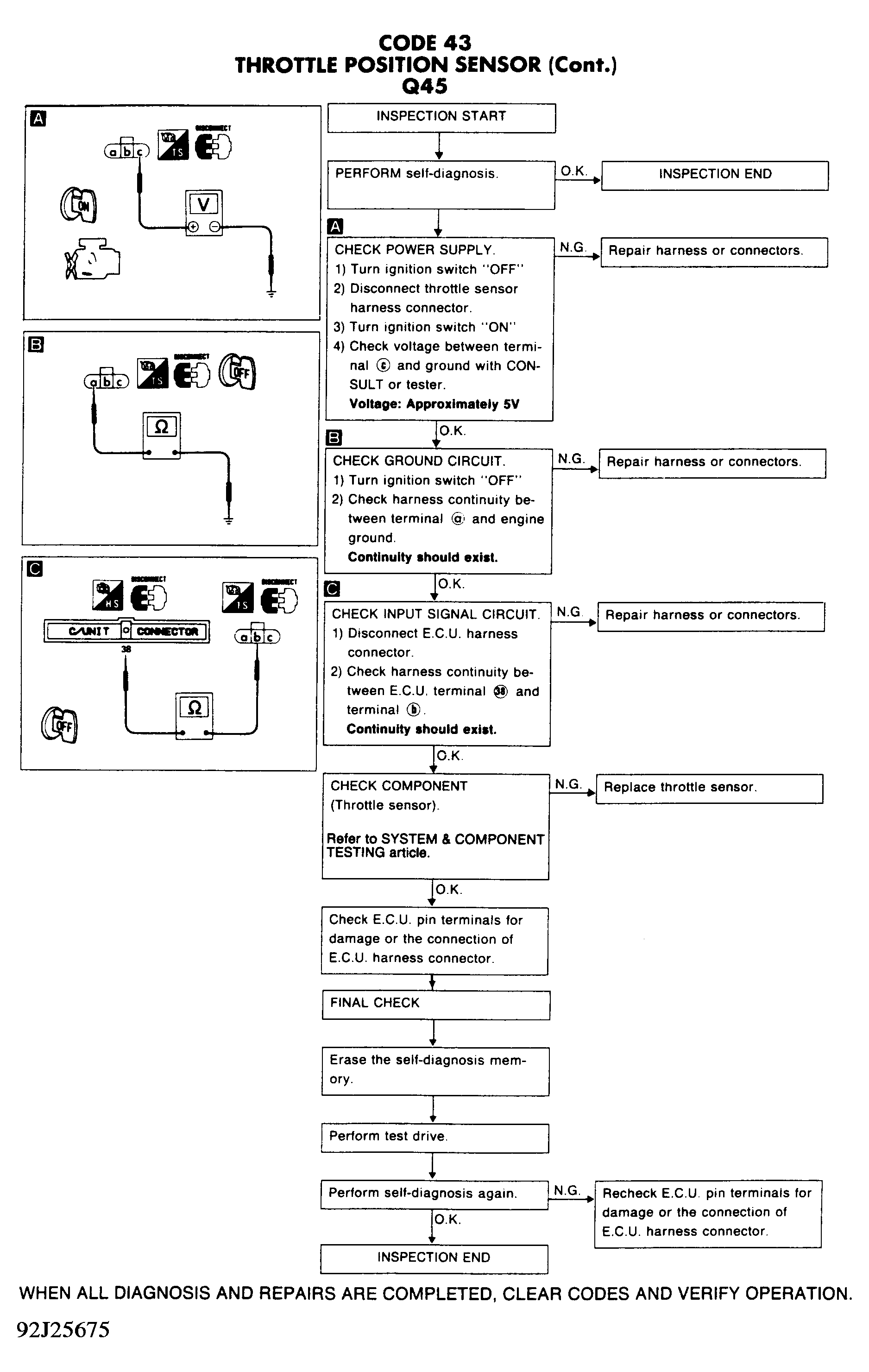

Fig 3: Code 43 Flow Chart - Throttle Position Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
