DTC 46 - Secondary Throttle Sensor

Fig 1: Code 46 Schematic - Secondary Throttle Sensor
G91B17393Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Code 46 Connector Location - Secondary Throttle Sensor
G91C17394Courtesy of NISSAN MOTOR CO., U.S.A.

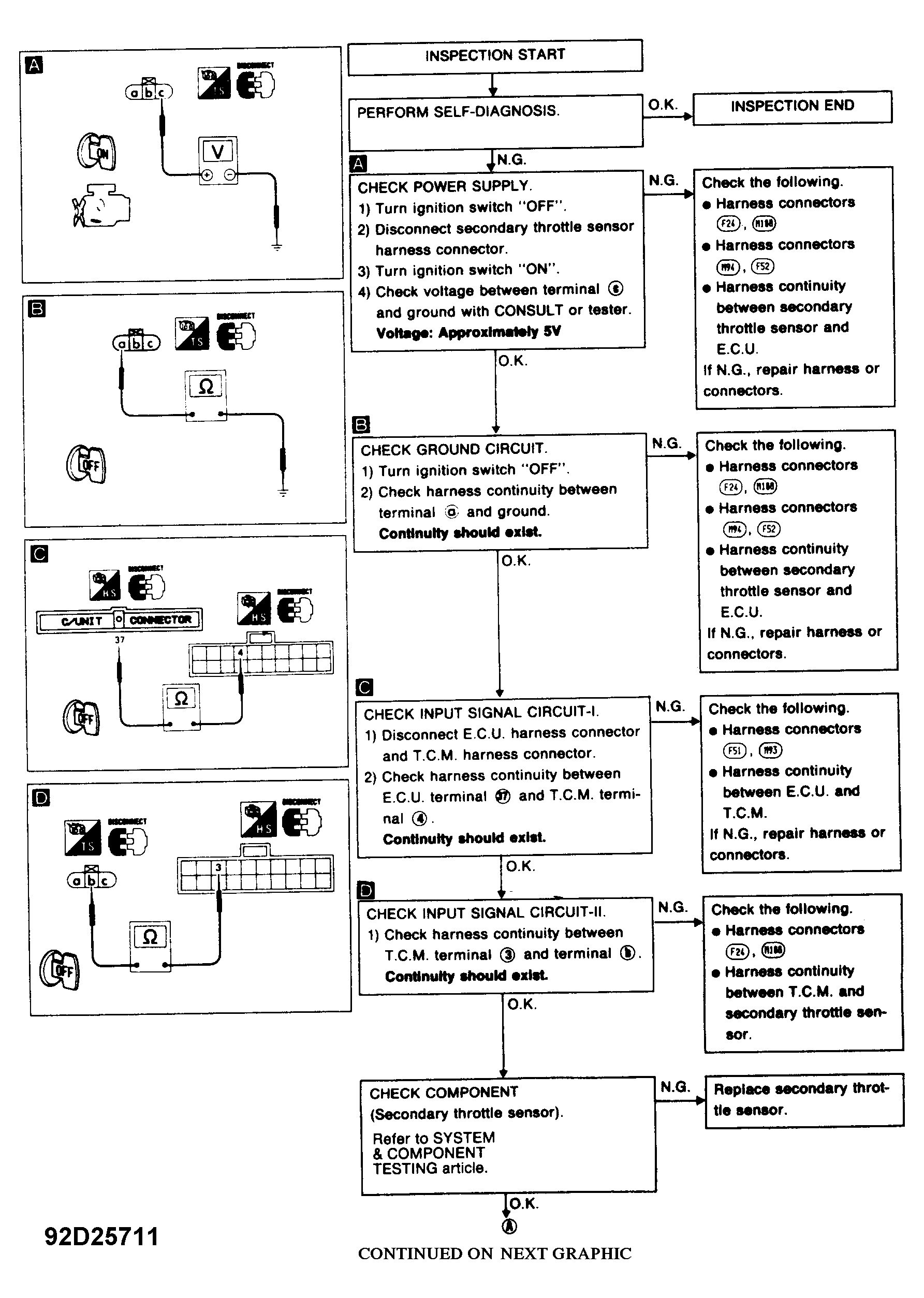

Fig 3: Code 46 Flow Chart (1 of 2) - Secondary Throttle Sensor
G92D25711Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Code 46 Flow Chart (2 of 2) - Secondary Throttle Sensor
G91F17397Courtesy of NISSAN MOTOR CO., U.S.A.
