Wiper/Washer Switch

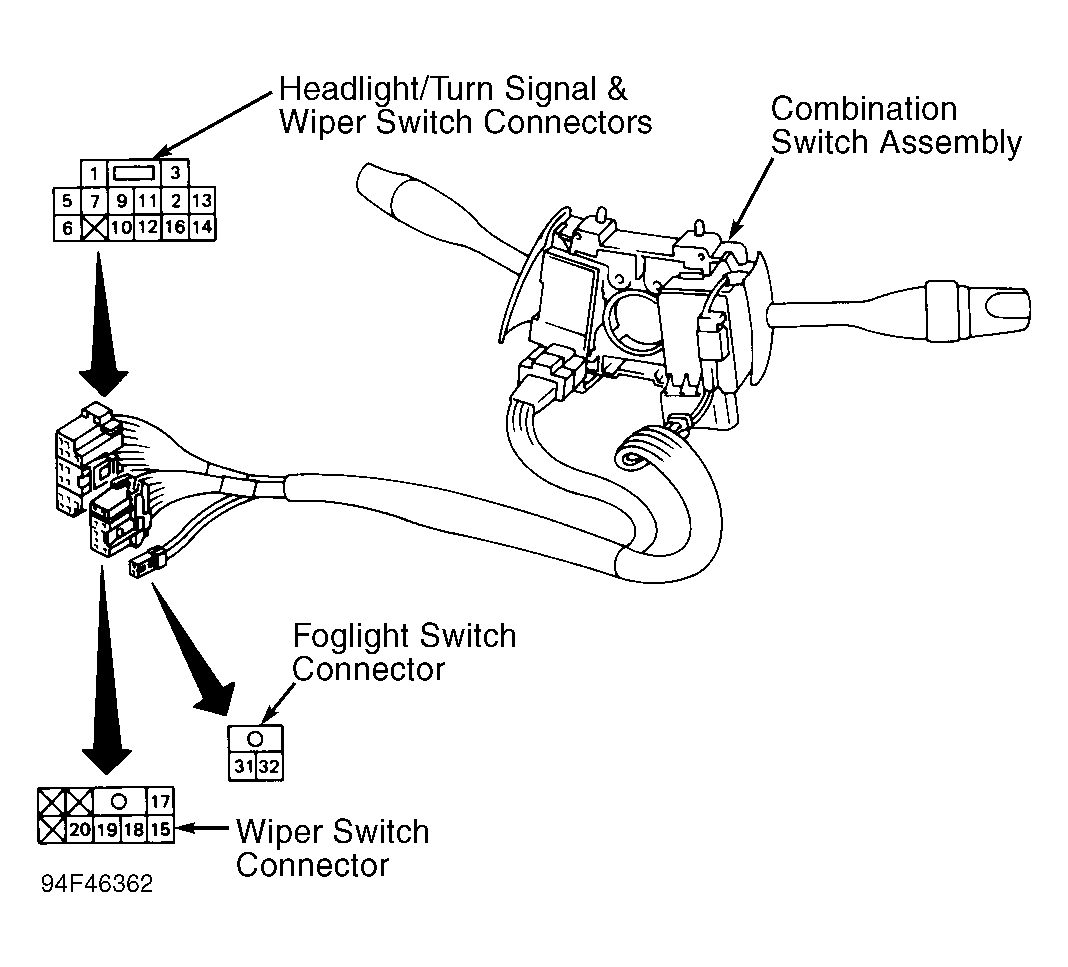

Remove steering column lower cover. Disconnect wiper/washer switch connector. With wiper/washer switch in indicated positions, check for continuity between specified switch connector terminals. See WIPER/WASHER SWITCH CONTINUITY table. See Figure.
WIPER/WASHER SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Off | 13 & 14 |
| Intermittent | 13 & 14; 15 & 17 |
| Low | 14, 15 & 17 |
| High | 15, 16 & 17 |
| Wash | 17 & 18 |
