Jacking & Hoisting: Hoisting

1. On G20 models without sill spoiler, position lift blocks at support points at front and rear ends of sill. See Fig 1. On G20 models with sill spoiler, place Lift Attachment (LM4086-0200) or Safety Stand Attachment (LM4519-0000) between sill and hoist. Place sill in groove of attachment to keep sill from deforming.
   Fig 1: Locating Jacking & Hoisting Support Points (G20)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. On J30, position lift blocks on support points shown. Safety stands may also be used at these points. See Fig 2.

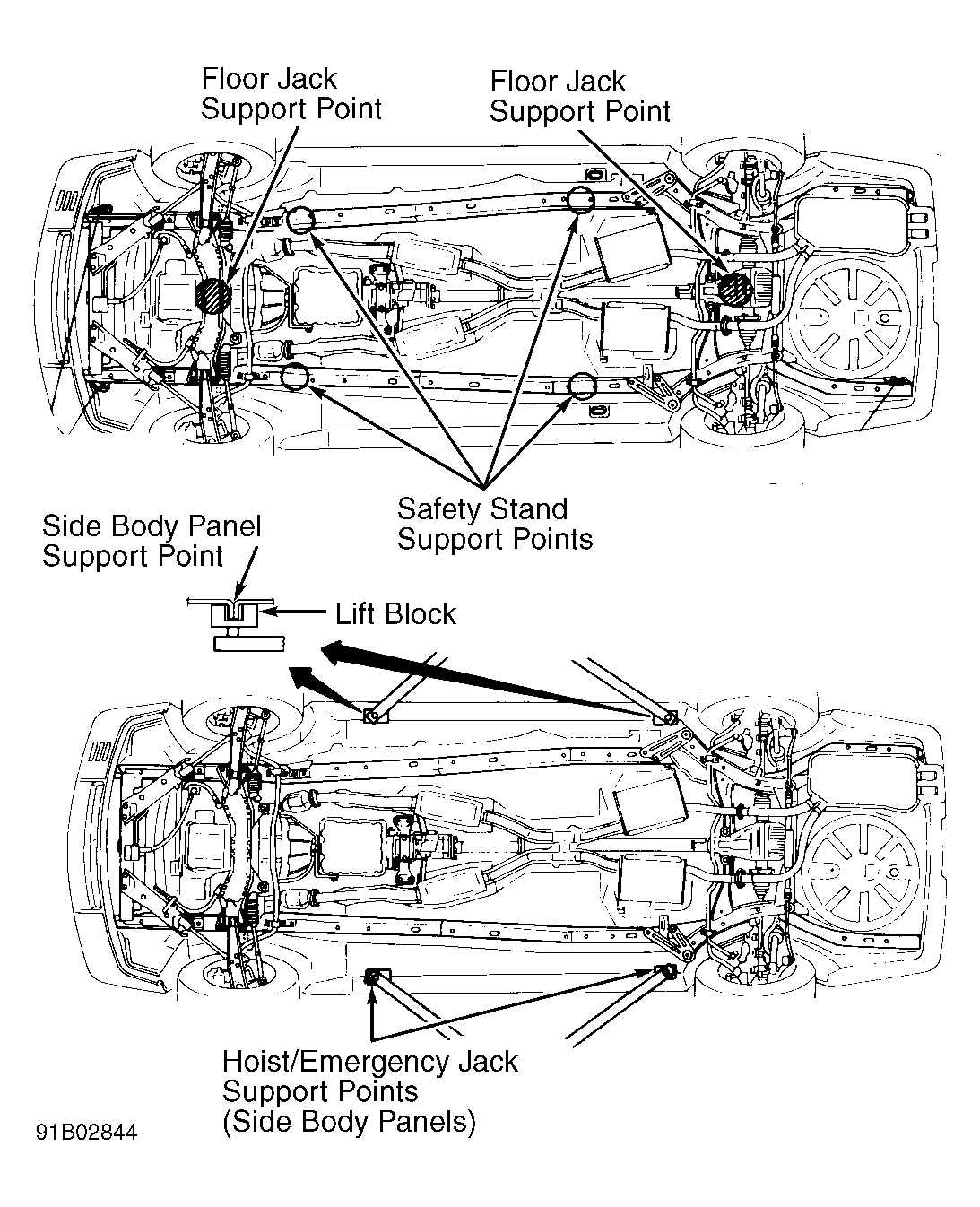

   Fig 2: Locating Jacking & Hoisting Support Points (J30)

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. On Q45, position lift blocks on reinforced support points of side body panels, between front and rear wheels. Use these lift points with manufacturer-supplied jack also. See Fig 3.

Fig 3: Locating Jacking & Hoisting Support Points (Q45)

Courtesy of NISSAN MOTOR CO., U.S.A.
