Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

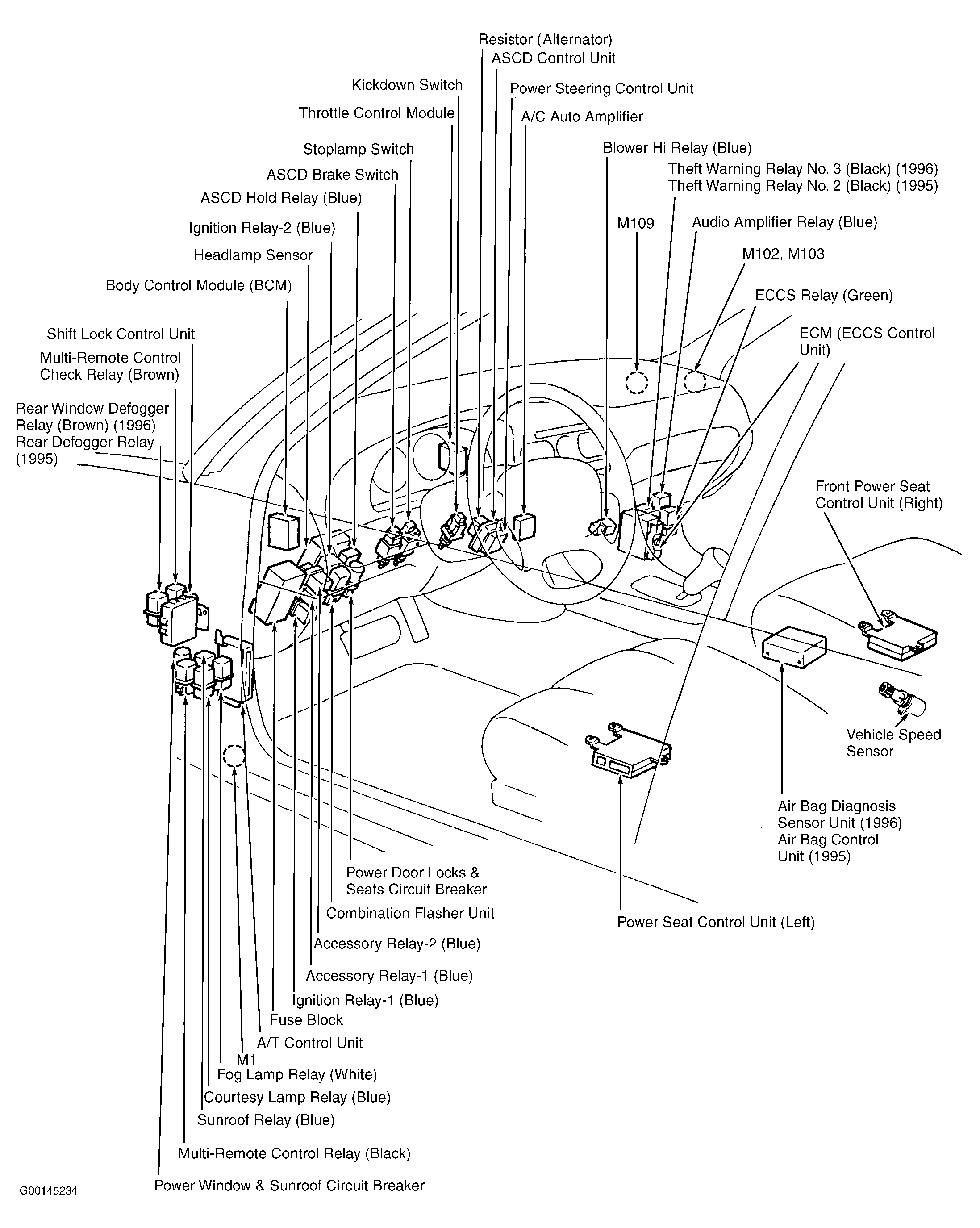

| Fuse Block | Behind access panel, to left of steering column. See Figure . |

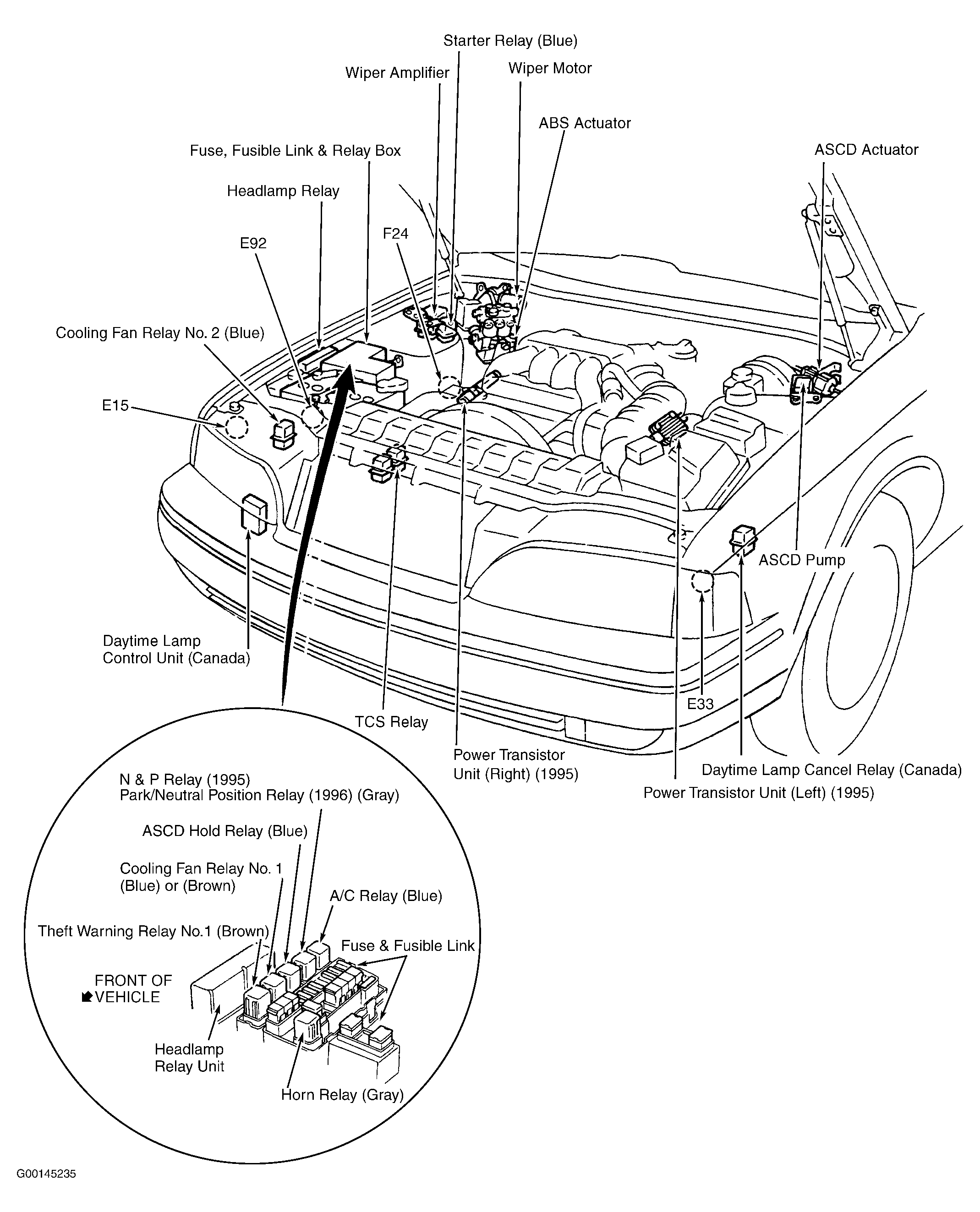

| Fuse, Fusible Link & Relay Box | In right front side of engine compartment, near battery. See Figure . |
| Fusible Links | In fuse/relay block, near battery. |
| Power Door Locks & Seats Circuit Breaker | In relay block, behind left side of dash. See Figure . |
| Power Window & Sunroof Circuit Breaker | Behind left kick panel. See Figure . |
| Relay Block (Passenger) | Behind left side of dash. |
