Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

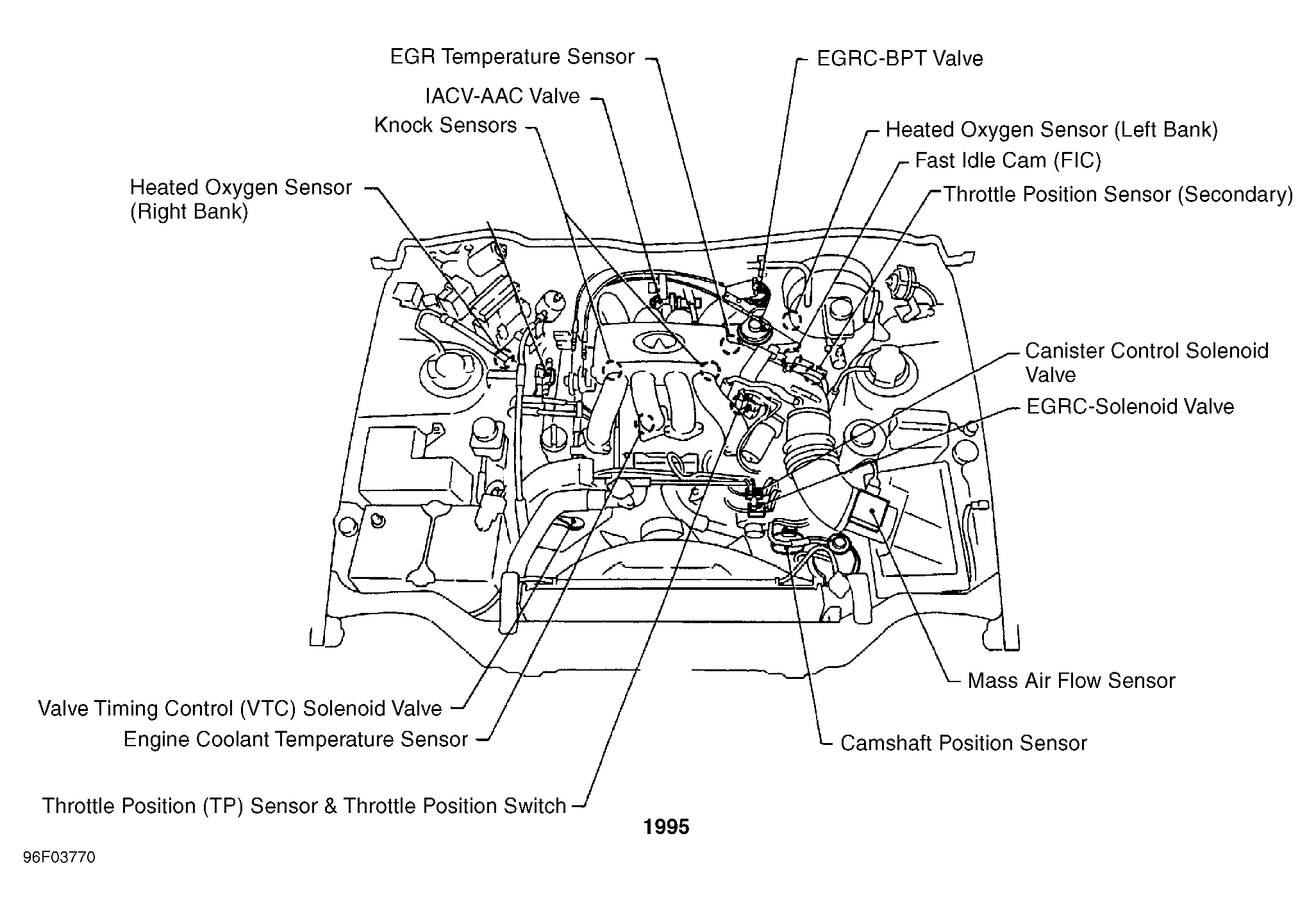

Fig 1: Engine Compartment (1995)

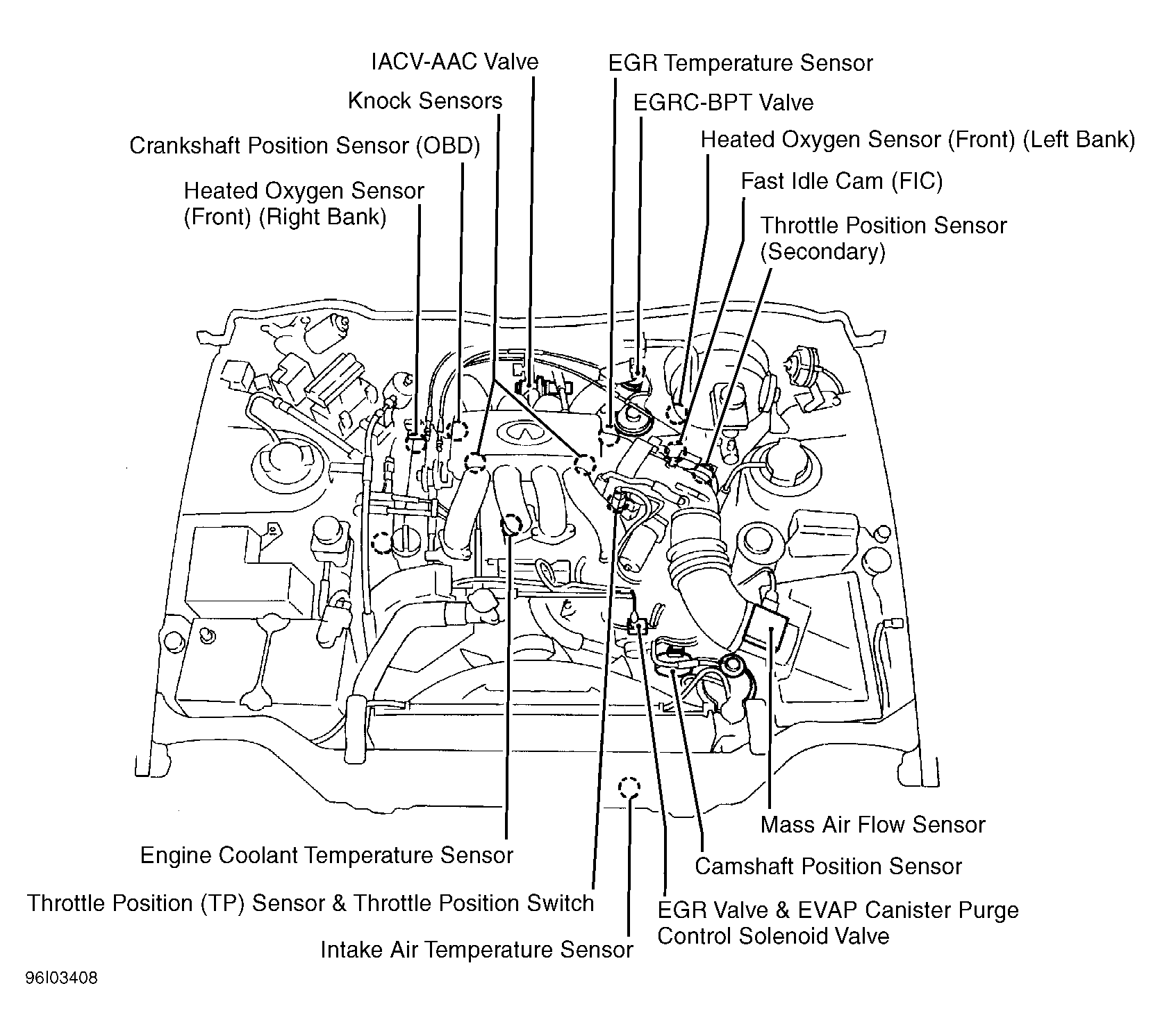

Fig 2: Engine Compartment (1996)

Fig 3: Dash

Fig 4: Overview Of Front Of Vehicle

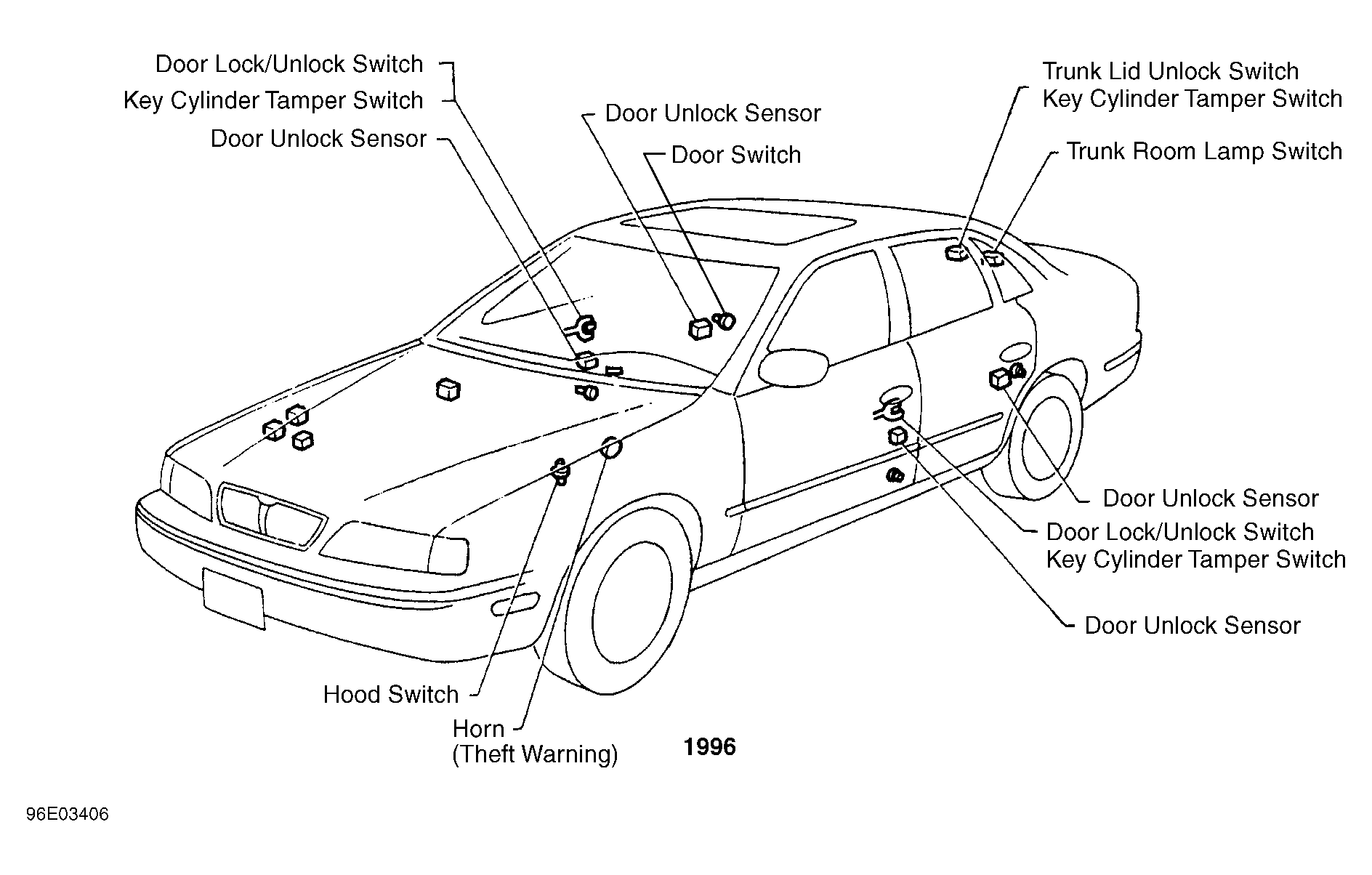

Fig 5: Vehicle Overview (1996)

Fig 6: Rear Of Vehicle

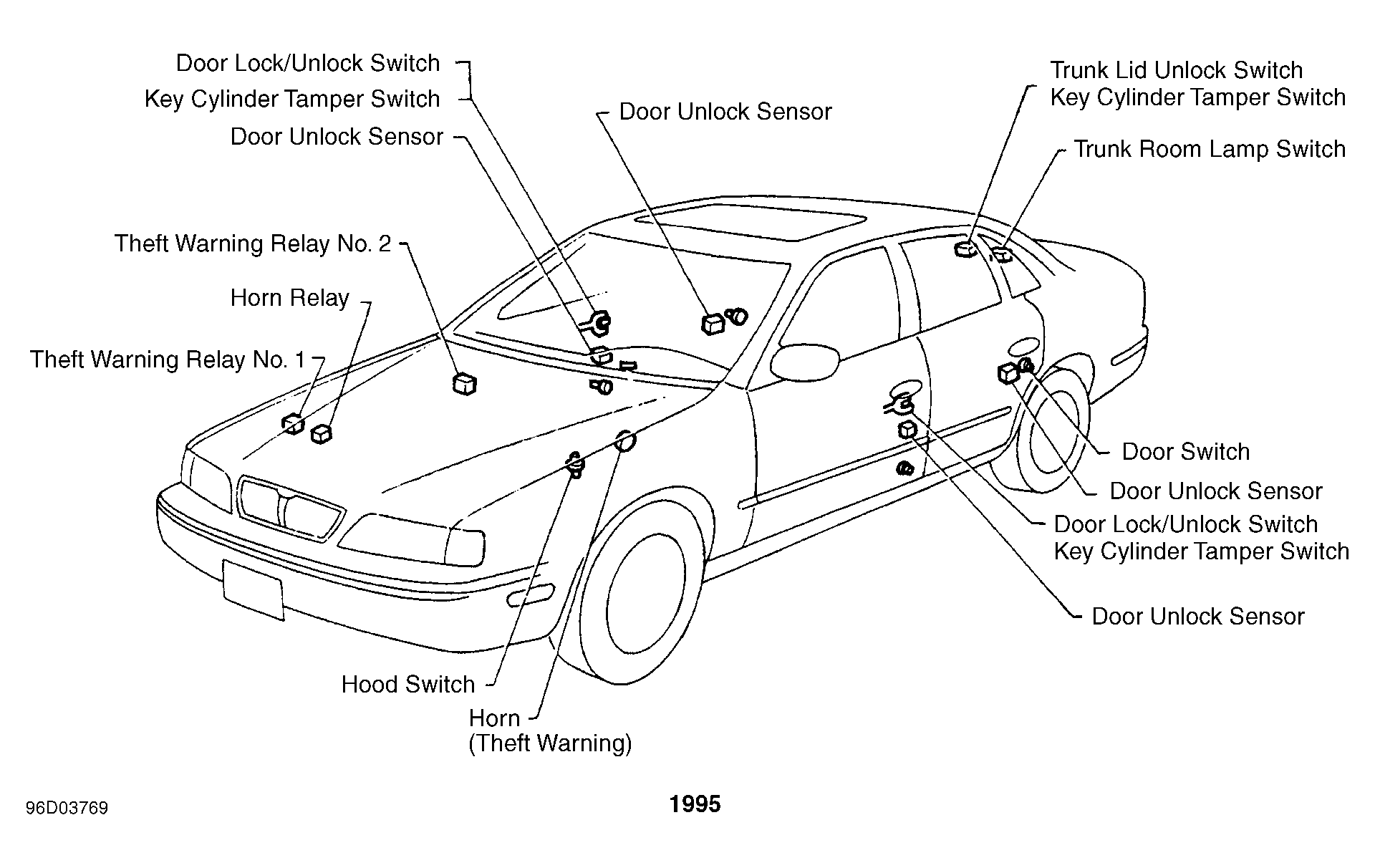

Fig 7: Vehicle Overview (1995)
