Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

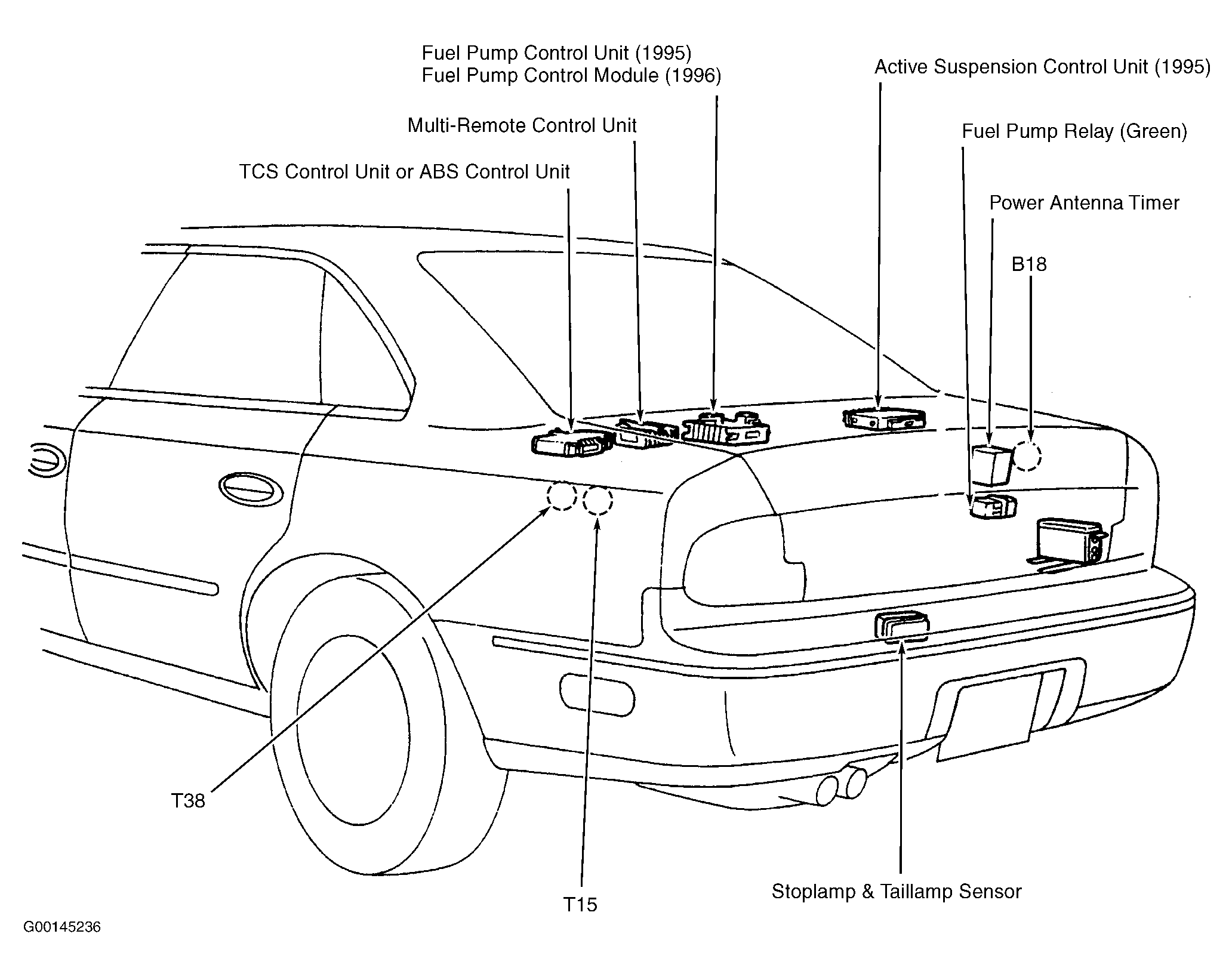

| ABS Control Unit | Under left rear package tray. See Figure . |
| Active Suspension Control Unit (1995) | Under right rear package tray. See Figure . |
| Air Bag Control Unit (1995) | Below rear if console. See Figure . |
| Air Bag Diagnosis Sensor Unit (1996) | Under console, behind parking brake lever. See Figure . |
| A/C Control Unit | Behind center of dash. |
| A/T Control Unit | Behind left kick panel. See Figure . |
| ASCD Control Unit | Behind dash, right of the steering column. See Figure . |
| Body Control Module (BCM) | In dash, behind dash meter. See Figure . |
| Daytime Lamp Control Unit (Canada) | Right front of engine compartment. See Figure . |
| Diagnostic Information Display Control Unit | Behind center of dash. |
| Door Mirror Control Unit (2) | At respective outside mirror assembly, in front doors. |
| ECM (ECCS Control Unit) | Behind right kick panel. See Figure . |
| Front Pressure Control Unit (1995) | Right front corner of engine compartment. |
| Fuel Pump Control Module (1996) | Under center of rear package tray. See Figure . |
| Fuel Pump Control Unit (1995) | Under left rear package tray. See Figure . |
| Headlamp Relay Unit | In relay block in engine compartment. See Figure . |
| Power Seat Control Units (2) | Underneath each front seat. See Figure . |
| Power Steering Control Unit | Behind dash, right of the steering column. See Figure . |
| Shift Lock Control Unit | Behind left kick panel. See Figure . |
| TCS Control Unit | Under left rear package tray. See Figure . |
| Throttle Control Module | Under right side of dash, above glove compartment. See Figure . |
| Multi-Remote Control Unit | Under center of rear package tray. See Figure . |
| Multi-Valve Unit (1995) | Left side of engine compartment. |
| Power Window Control Units (4) | In rear of respective door. |
| Rear Pressure Control Unit (1995) | Left rear corner of luggage compartment. |
