Diagnostic Procedure 4 - Remote Control Trunk Release Function Inoperative
Diagnostic Procedure 4 - Remote Control Trunk Release Function Inoperative

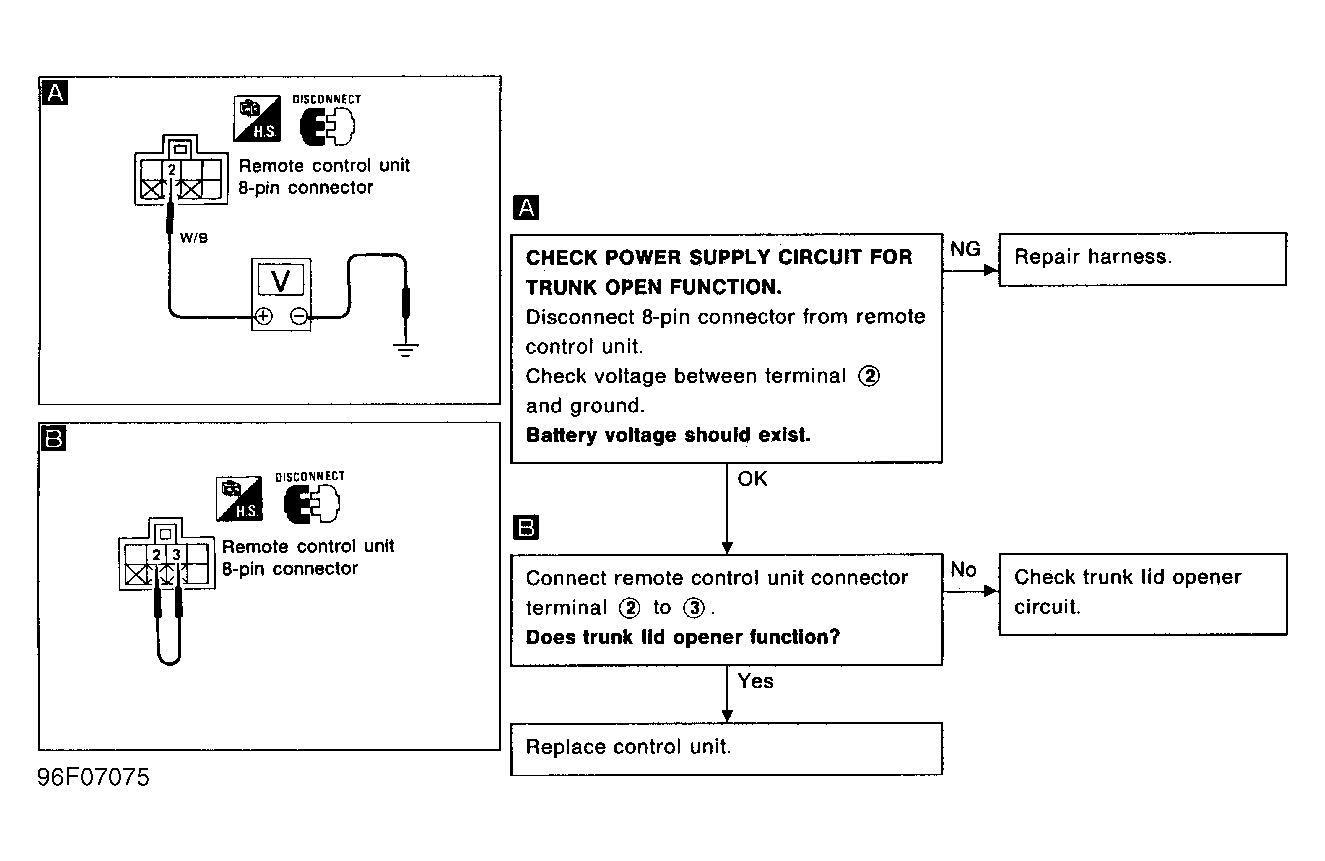

Fig 1: Diagnostic Procedure 4
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
