Wake-Up Mode Diagnostics

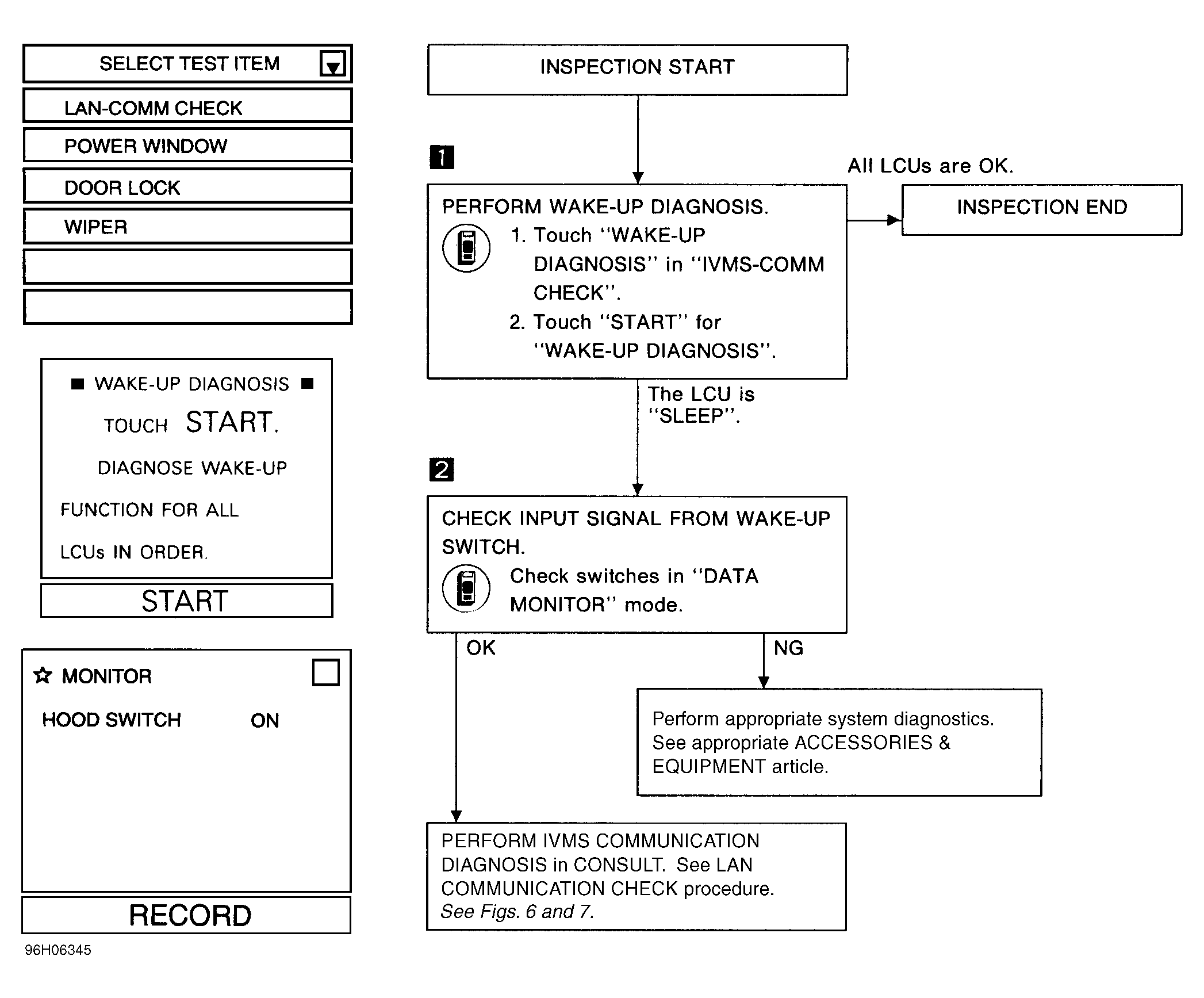

Fig 1: Wake-Up Mode Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
