Diagnostic Procedure 1 - Buzzer Does Not Sound When Remote Control Button Is Pressed
Diagnostic Procedure 1 - Buzzer Does Not Sound When Remote Control Button Is Pressed

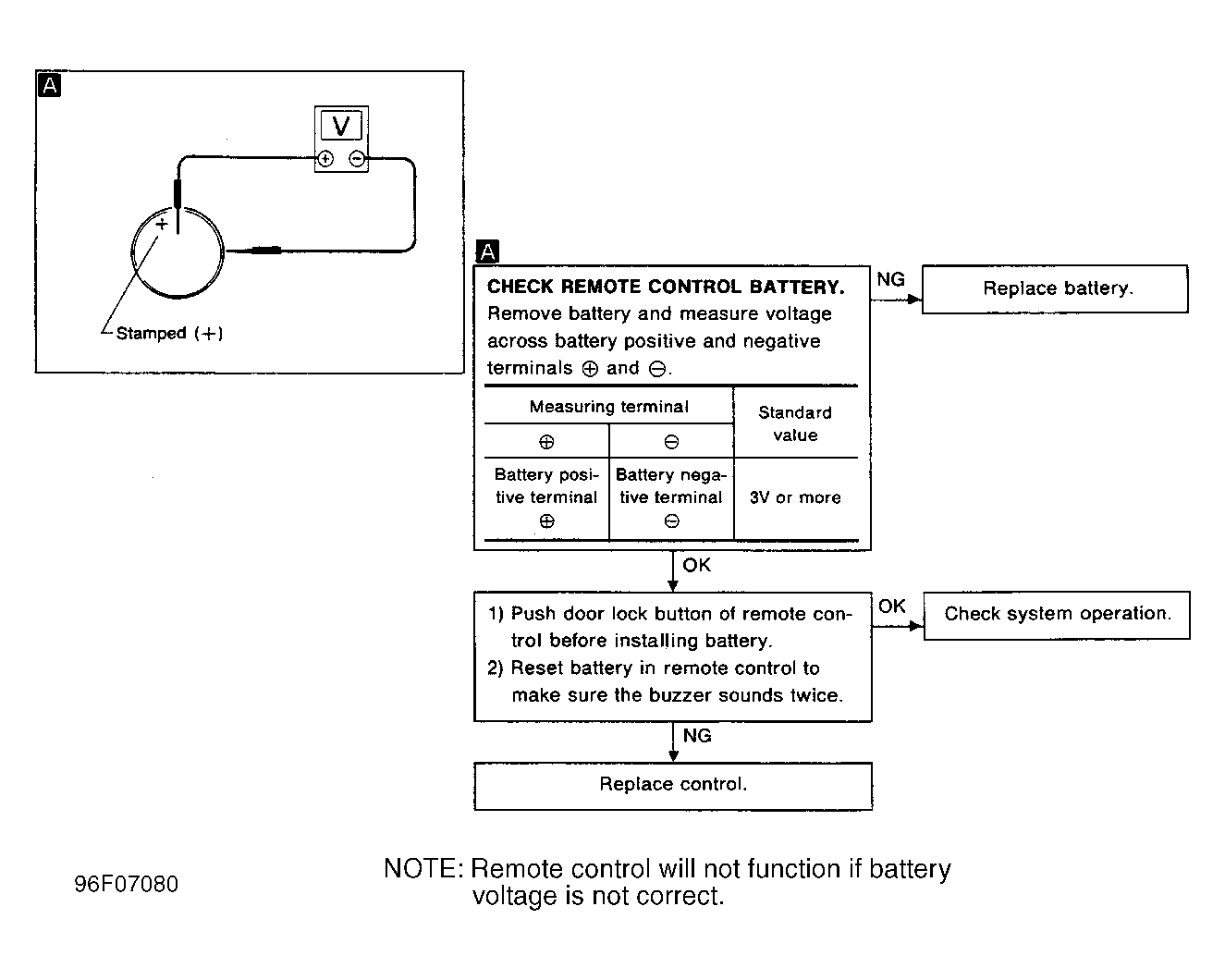

Fig 1: Diagnostic Procedure 1
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
