Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

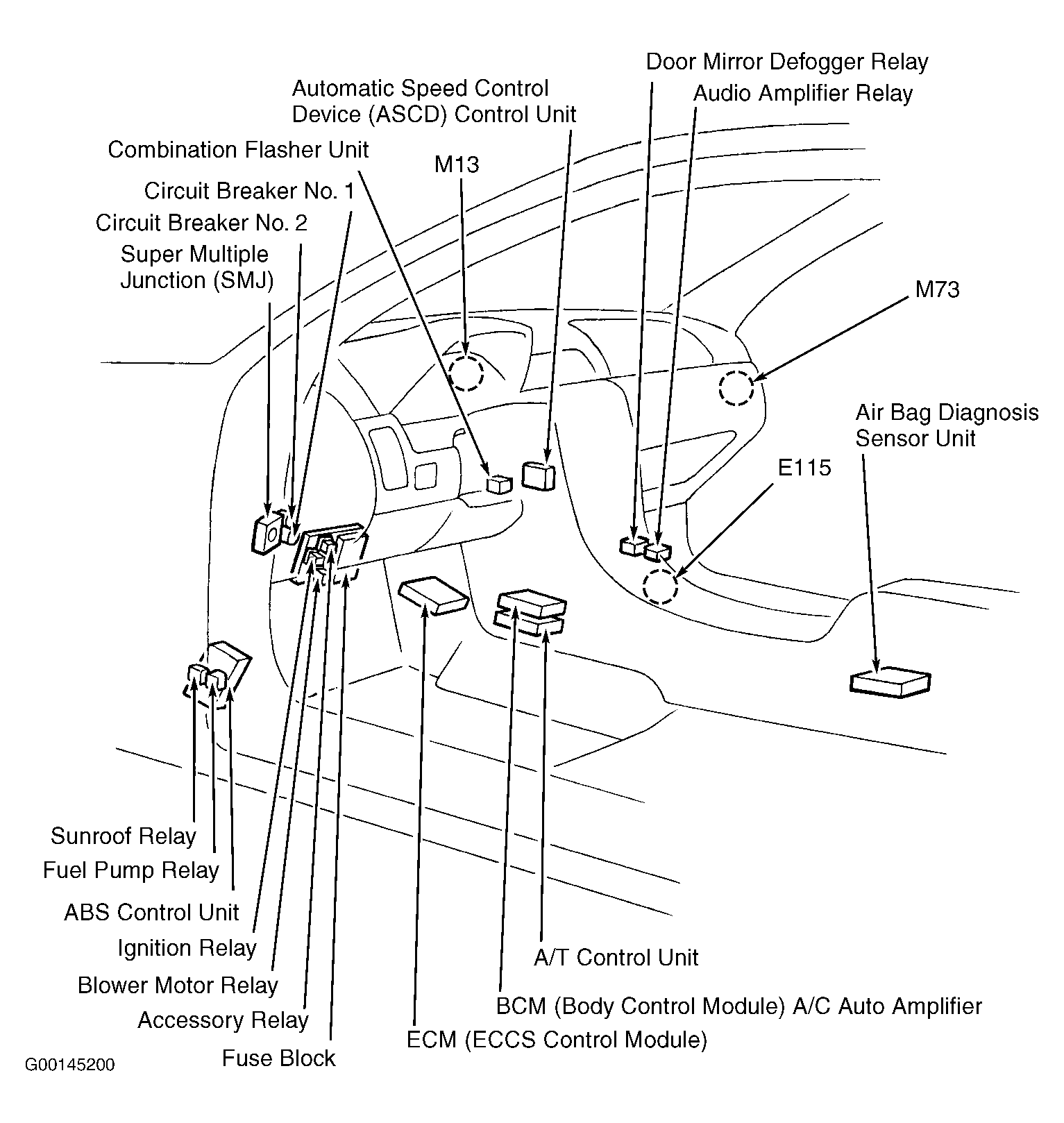

| A/C Auto Amplifier | Below center of dash. See Figure . |
| A/T Control Unit | Below center of dash. See Figure . |
| ABS Control Unit | Behind left kick panel. See Figure . |
| Air Bag Diagnosis Sensor Unit | Below rear of center console. See Figure . |
| Automatic Speed Control Device (ASCD) Control Unit | Behind dash, right of steering column. See Figure . |
| BCM (Body Control Module) | Below center of dash. See Figure . |
| Combination Flasher Unit | Behind left center of dash. See Figure . |

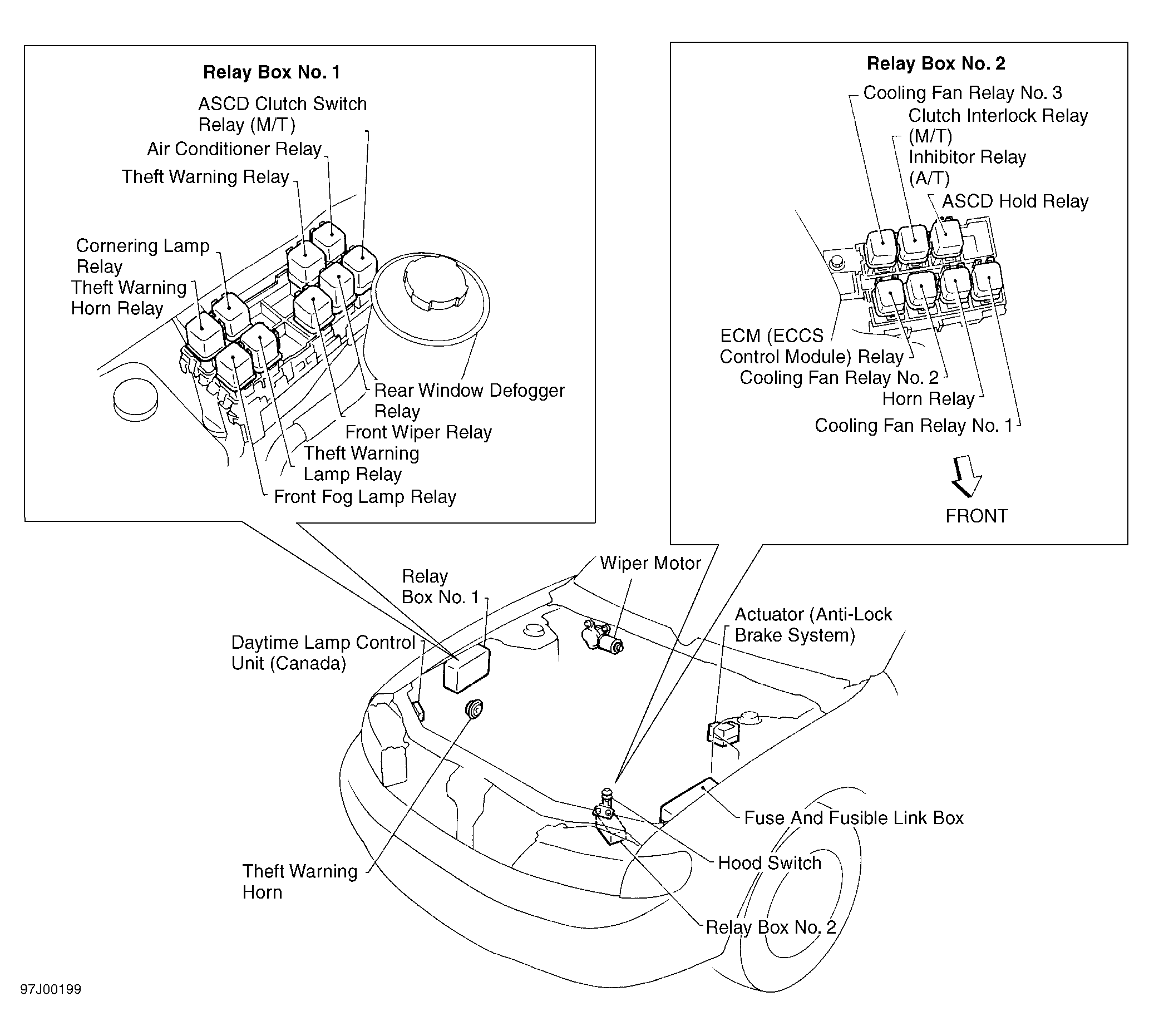

| Daytime Lamp Control Unit (Canada) | Right front of engine compartment. See Figure . |
| ECM (ECCS Control Module) | Below center of dash. See Figure . |
| Fan Control Amplifier | Behind right side of glove box. |
| Fuel Pump Control Module | Left rear corner of luggage compartment. |

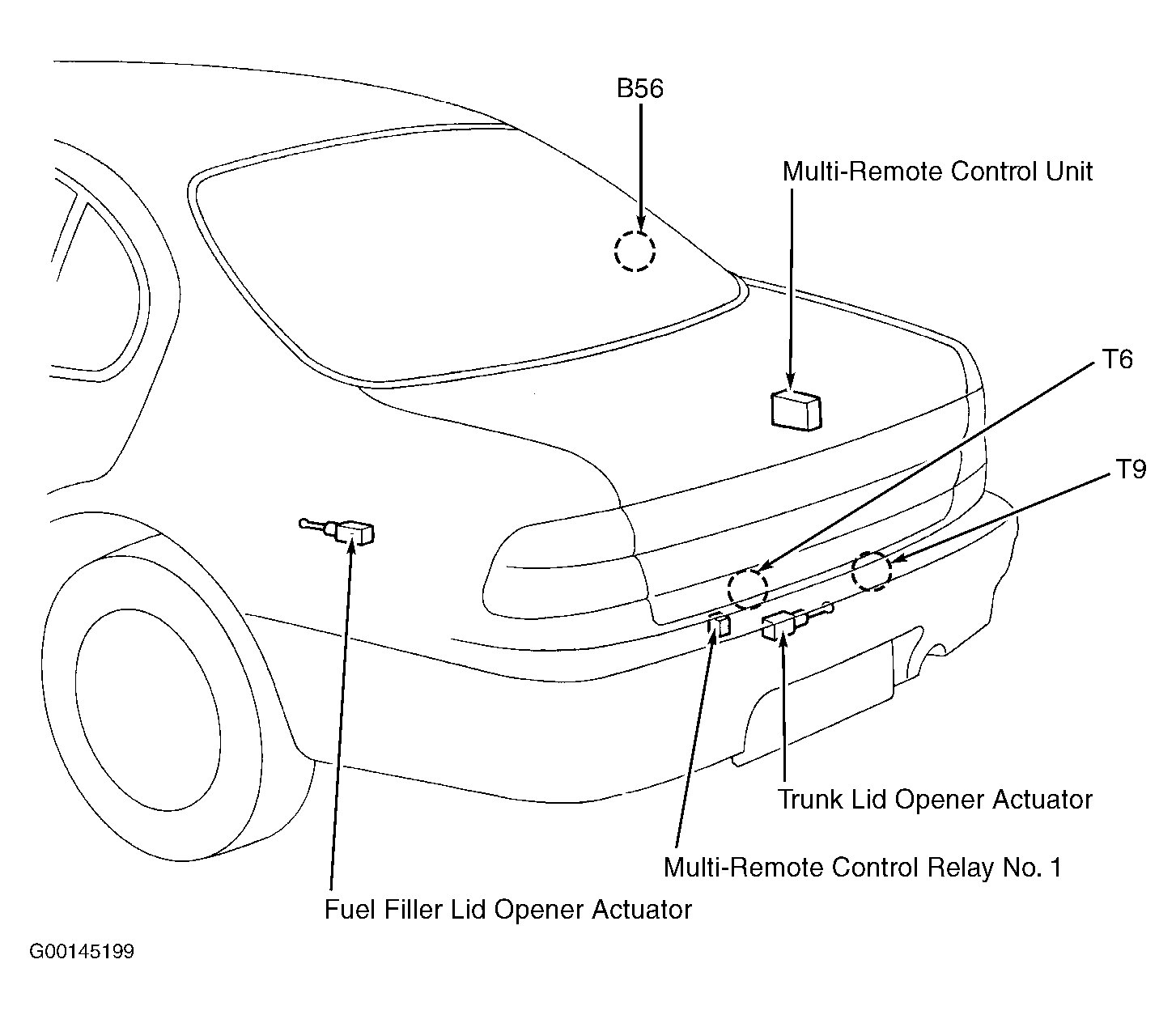

| Multi-Remote Control Unit | Right side of luggage compartment. See Figure . |
| Push Control Unit | Behind left side of glove box. |
