Diagnostic Procedure 2: No Remote Controller Functions (1 Of 2)
Diagnostic Procedure 2: No Remote Controller Functions (1 Of 2)

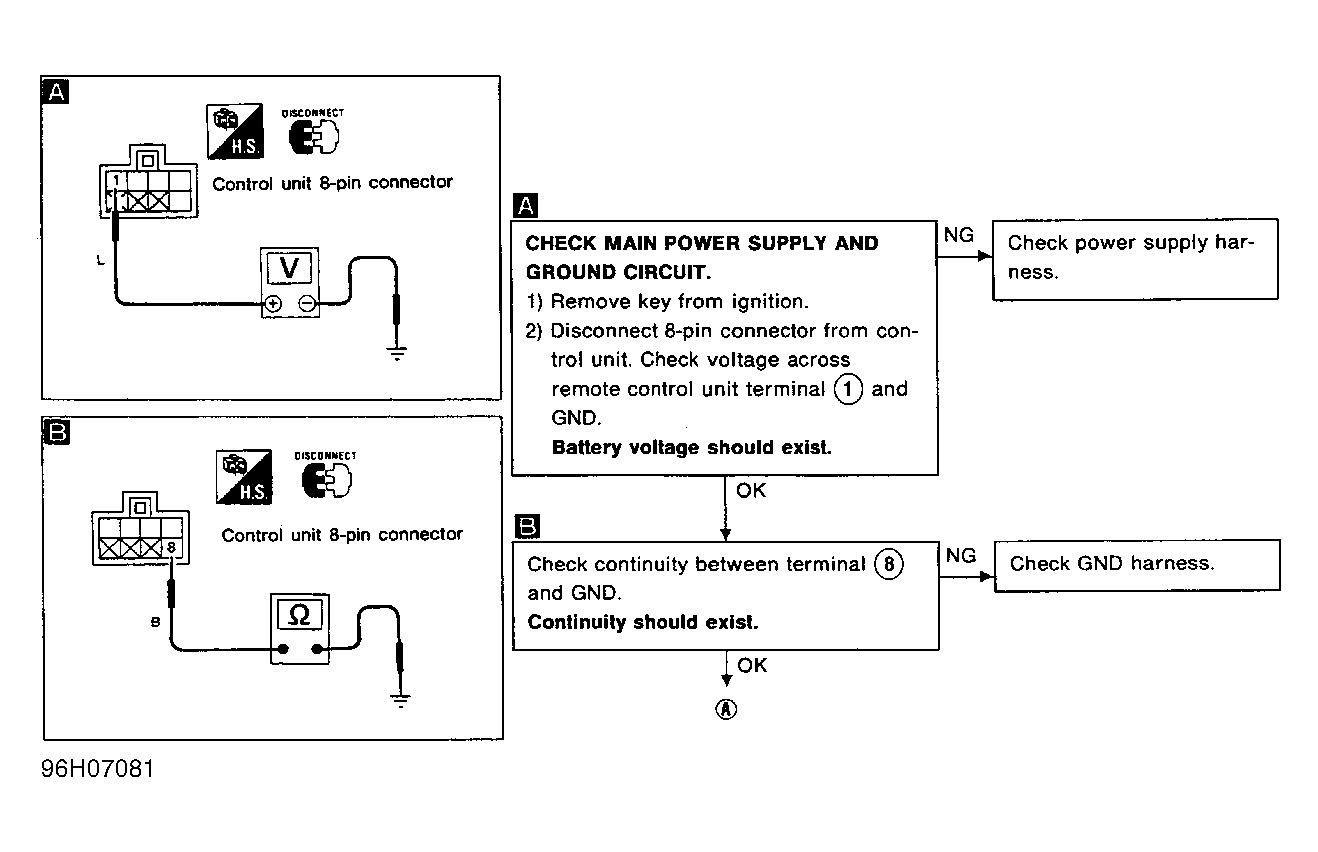

Fig 1: Diagnostic Procedure 2 - No Remote Controller Functions (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
